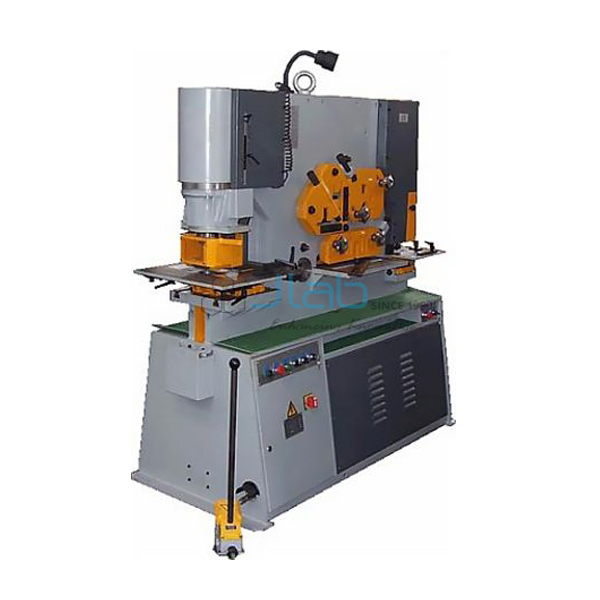

Hydraulic Steel Worker Manufacturer,Supplier and Exporter in India
Product Code : JL-WEAWLM-8728
Jlab Export is a leading Hydraulic Steel Worker Manufacturer,and suppliers in Africa, Hydraulic Steel Worker Uruguay (Montevideo), Hydraulic Steel Worker Uzbekistan (Tashkent), Hydraulic Steel Worker Venezuela (Caracas), Hydraulic Steel Worker Vietnam (Hanoi), Hydraulic Steel Worker Yemen (Sana'a), Hydraulic Steel Worker Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)
Description:-
Quick
change punch holder with positive keyway location for shaped tools.
CE
conformity including Safety Guarding on all stations and key-switch to isolate
the notch station.
Adjustable
Strokes complete with rules at punch and shear end.
Swing-away
punch stripper.
Universal
'Goose Neck' Die Holder up to 57 mm to accommodate punching of flats -
angles - channel.
Adjustable
hold-down plate on the hole punching, shearing and bar cropping station.
1M Auto
Cut Length Stop Robust tables complete with rules - plate guides - quick
release handles.
2 - hand
moveable foot pedals.
Halogen
Light on a magnetic base.
10
punches and dies up 0 to 38 mm.
Hydraulic
and Electrical overload protection.
Toolkit
and operator instruction manual.
Compact,
low-maintenance, hydraulic unit located at the bottom inside of the machine.
Specification:-
|
Punching
– Rated Capacity |
60
Ton |
80
Ton |
|
Diameter
× Thickness |
27
× 16 mm |
28
× 20 mm |
|
Standard
Throat Depth |
310
mm |
360
mm |
|
Cycle/min
(20mm stroke) |
48
(24 cycle) |
48
(24 cycle) |
|
Shearing
Flat bar – Max. Thickness |
250
× 16 mm |
330
× 16 mm |
|
Shearing
Flat bar – Max. Width |
400
× 8 mm |
480
× 12 mm |
|
Angle
Cutting 90º |
125
× 12 mm |
140
× 12 mm |
|
Angle
Cutting 45º |
70
× 8 mm |
80
× 8 mm |
|
Section
Cutting Round |
max.
45 mm, 25 mm, 12 mm |
max.
50 mm, 25 mm, 12 mm |
|
Section
Cutting Square |
max.
40 × 40 mm, 20 × 20 mm |
max.
50 × 50 mm, 20 × 20 mm |
|
Notching
Thickness |
10
mm |
13
mm |
|
Notching
Width |
58
mm |
57
mm |
|
Notching
Depth |
105
mm |
100
mm |
|
Max.
Sheet Bending (optional) |
500
× 3 mm |
500
× 3 mm |
|
Motor
Power |
4
KW |
5.5
KW |
|
Net
Weight (Std Throat) |
1600
Kg |
2450
Kg |
|
Machine
Dimensions (L × W × H) |
1700
× 780 × 1680 mm |
1920
× 790 × 1800 mm |
