COD Digester Manufacturer,Supplier and Exporter in India

COD Digester

Product Code : JL-CD-2303
Jlab Export is a leading COD Digester Manufacturer,and suppliers in India, COD Digester Manufacturer,and suppliers in South Africa.COD Digester Suppliers in Mozambique,COD Digester A quality product from Jlab ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

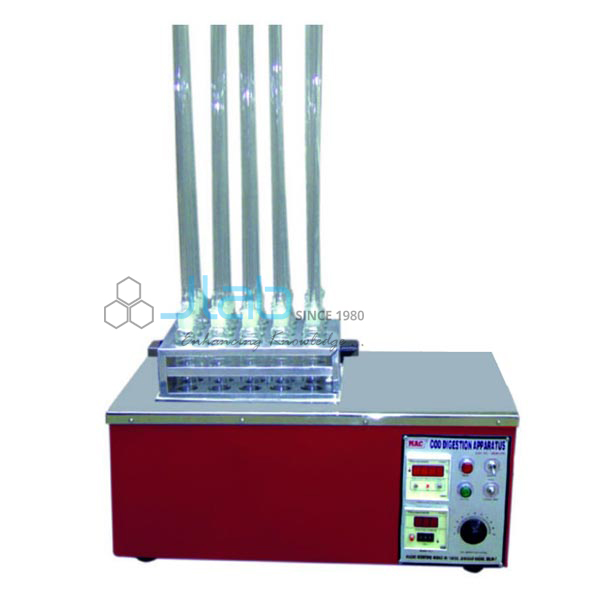

COD Digester
Thermo reactor for Determination of Chemical Oxygen Demand in Various Substances.
Chemical Oxygen Demand (COD)
Measure of the Capacity of Water to Consume Oxygen during the Decomposition of Organic Matter and the Oxidation of Inorganic Chemicals such as Ammonia and Nitrite.
COD Measurements are commonly made on Samples of Waste Waters or of Natural Waters Contaminated by Domestic or Industrial Wastes.
Chemical Oxygen Demand is measured as a Standardized Laboratory assay in which a closed Water Sample is incubated with a Strong Chemical Oxidant under Specific Conditions of Temperature and for a Particular Period of Time.
High Performance and User Friendly Controls Combine to Produce a Specification Which Offers Exceptional Efficiency and Reliability.
The Benefit to you-convenient, No Fuss Heating!
Excellent Temperature Control.
Uniform And Stable Heating
New Compact Size
Technical Specification:
Controller Microprocessor Based Digital Temperature Indicator cum Controller
display LED with set value (SV) and Process value (PV)
BLOCK DIMENSIONS (WXDXH) (in mm) 270mm(L) X 150mm(W) X 70mm(D)
Heater Load 1.0 KW
Tube Cavity 40mm(Ø) x 65mm(D)
No. of Cavaties 15 holes to accommodate 15 samples
Glass Tube Size Supplied with 15 nos. of Glass Tubes of size 38mm(Ø) x 200mm (Length)
Glass Air Condenser Size Supplied with 15 nos. of air condensers of 600 mm length each.
Sample Size 20 ml
Temperature Range Ambient +5° C to 150° C
Temperature Accuracy ±1° C
Sensor RTD (Pt-100)
Material External Powder Coated CRC Steel
Block Polished Aluminium
Tube Rack 1 No.
Timer (SAD) (Auto Time Control Unit) Fitted with  Automatic Digital Minute Timer which starts automatically when set/desired value of temperature is achieved.
When the set time period is over the heaters get switched off automatically.
Buzzer Alarm for cycle end
Power Supply 230V AC, 50/60Hz
