Poker Vibrator Manufacturer,Supplier and Exporter in India
Product Code : EL-WT-8797
Jlab Export is a leading Poker Vibrator Manufacturer,and suppliers in India

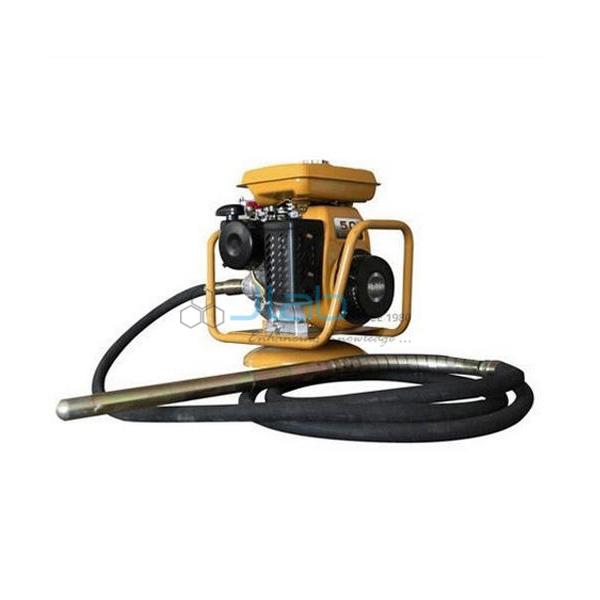

Instead of rodding each layer by hand, this vibrator is lowered into the fresh concrete and compacts it from the inside. It is used on concrete specimens in the laboratory and on site, and it saves time when a large number have to be compacted. Mains, petrol and battery operated versions are made, all light enough to carry from mould to mould.
Specifications
| Use | Internal compaction of concrete specimens, in the lab and on site |
| Versions | Mains operated, petrol operated, battery operated |
| Build | Lightweight, carried by hand |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Manufacturer | JLab (Jain Laboratory Instruments Pvt Ltd), Ambala, India |
Concrete Specimen Practicals for Students
When a class casts many specimens from one mix, students fill the Beam Moulds and the Cylindrical Mould in layers and compact each layer with the poker. The needle goes in vertically, stays until air bubbles stop rising, and is drawn out slowly so the hole closes.
For comparison, one set of beams is compacted with the poker and one set with the tamping bar offered with the Beam Moulds. After curing, both sets are tested, and the cylinders are crushed on the Compression Testing Machine for Concrete. Students see how full compaction raises strength and leaves fewer voids on the faces.
Frequently Asked Questions
Which version should I choose: mains, petrol or battery?
Choose by the power available where the specimens are cast. The mains version suits a lab with sockets close to the casting area. The petrol version works on open sites with no supply, and the battery version needs no cable or fuel, which helps when moving between moulds.
How long should the poker stay in the concrete?
Hold it in until large air bubbles stop coming up and the surface around it looks smooth and glossy. Then draw it out slowly so the concrete closes the hole behind it. Over-vibrating separates the mix, with stone settling and a watery layer forming on top.
Is a poker better than a tamping rod for test specimens?
Both are used to compact specimens. Rodding suits a few moulds and wetter mixes, while the poker compacts stiff mixes more fully and is much quicker when many moulds are being filled. Keep the needle clear of the mould sides and base so it does not mark the faces.
How is it different from a vibrating table?
A table shakes the mould from below, which suits small moulds such as cubes. The poker works inside the concrete, so it reaches the full depth of beams and cylinders. The Vibrating Table suits a lab that casts mainly cubes, while the poker also goes out to site.
Other Equipment for Casting Concrete Specimens
- Concrete Vibrator (needle vibrator on a 4 m or 6 m flexible shaft)
- Vibrating Machine (spring-mounted frame for a cube mould)
- Slump Test Apparatus (workability check before casting)
