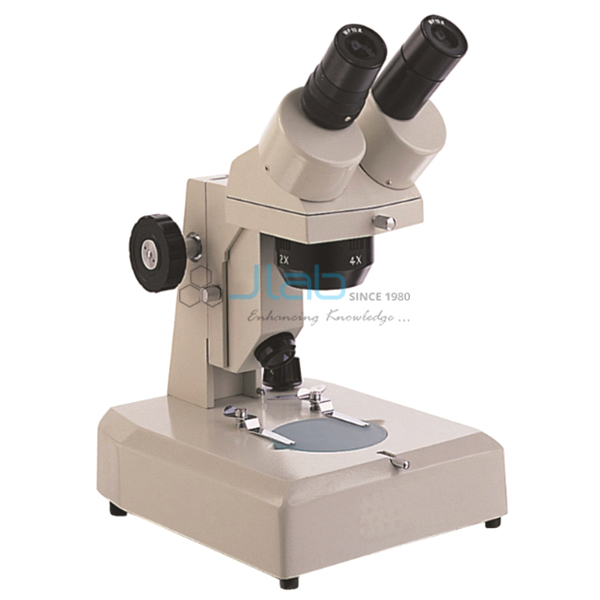

Dual Power Binocular Stereo Microscope

Dual Power Binocular Stereo Microscope

Product Code : JL-M-8108

Dual Power Binocular Stereo Microscope
Description:-
The fully coated optical system provides sharp and clear imaging with good flatness and contrast.
Durable and precise stereo microscope.
This stereo microscope offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments and built in 3-way illumination.
Choice of (10x, 20x), (10x, 30x), (20x, 40x) magnification.

Specification:-

Magnification

Standard magnification: 10X & 20X; 10X & 30X; 20X & 40X

Viewing Head

Binocular, 45° inclined and 360° rotatable.

Interpupillary distance adjustable from 55mm-75mm. Synchronized bilateral inter-pupillary distance adjustment.

Diopter adjustment in left ocular tube; right tube is fixed

Eyepiece

10X wide-field

Paired 10X (Optional eyepieces WF15X, WF20X)

The eyepieces can be locked on with setscrew to prevent students from removing them.

Optics Body and objectives

The optics body is equipped with paired lenses (1X, 2X), (1X, 3X), or (2X, 4X) for three-dimensional viewing. Magnification can be switched to the other by rotating the turret.

Objective magnification: choice of (2X & 4X), (1X & 3X), or (1X & 2X)

Working Distance

Standard working distance of 80mm

Focusing Arm

Heavy duty rack and pinion focusing with slip clutch

Two focusing knobs with tension adjustment,  90mm focus distance range

Stage

Includes one 75mm frost glass stage plate and one 75mm reversible black/white stage plate.

Locked-on spring loaded stage clips

Illumination

Top light: diagonally adjustable top light. Brightness can be continuously adjusted.

Bottom light: transmitted light. Brightness can be continuously adjusted.

Built in illumination system allows three ways of illumination: transmitted, incident, or dual lighting.

Main On/off power switch. Besides, top and bottom lights can be switched on/off respectively with separate intensity control

Design

14'' in height, with base 7'' x 8.75''
