Inverted Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-8147
Jlab Export is a leading Inverted Microscope Manufacturer,and suppliers in India

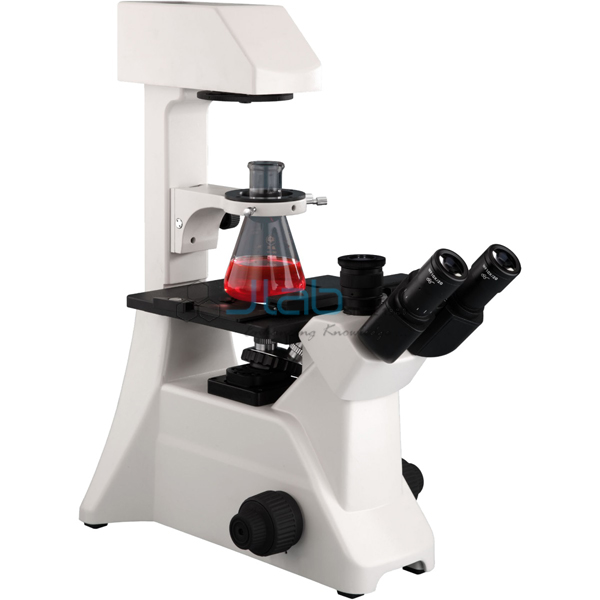

Inverted Microscope (code EL-M-8147) is a trinocular microscope for routine viewing of cell cultures, built with its objectives below the stage so that dishes and flasks are examined from underneath. It is supplied with long working distance plan objectives, a 25x phase contrast objective with a relief phase condenser, 35 mm and 65 mm culture dish holders and a camera port. JLab manufactures the instrument in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Viewing head | Trinocular, 45° inclined; light split 100/0 or 20/80 (binocular/camera port) |
| Eyepieces | Wide field 10x/20 mm, high eyepoint; centering piece included |
| Nosepiece | Quadruple, on ball bearings with internal click stops |
| Objectives | 10x (W.D. 7.9 mm), 25x (W.D. 5.0 mm) and 40x (W.D. 3.0 mm) long working distance plan |
| Phase contrast | 25x Ph+ long working distance plan objective (W.D. 5.0 mm); 25x relief phase slide |
| Condenser | Slide relief phase contrast condenser, N.A. 0.35, W.D. 45 mm |
| Stage | 206 x 170 mm; calibrated X/Y cross travel 128 x 80 mm, left- or right-hand operation; 35 mm and 65 mm culture dish holders |
| Focusing | Low-position coaxial coarse and fine focus knobs |
| Illumination | Built-in Kohler with field diaphragm; 6V/20W halogen lamp with intensity control; blue, green and gray filters |
| Frame | Metal frame, one-piece arm and base, antifungal treatment |
| Quality check | Each microscope is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 5 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-M-8147 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Why the Objectives Sit Under the Stage
On an inverted stand the light comes down from above and the objectives look up through the base of the culture vessel, so cells can be checked in their own dish without being transferred to a slide. The long working distances of 7.9 mm, 5.0 mm and 3.0 mm let the 10x, 25x and 40x plan objectives focus through the thickness of a dish bottom, while the condenser’s 45 mm working distance leaves height for the vessel above.
Phase Contrast and the Camera Port
Unstained living cells are nearly transparent; the 25x Ph+ objective used with the slide relief phase contrast condenser converts the small phase shifts that cells impose on light into visible contrast. Kohler illumination with a field diaphragm, a dimmable 6V/20W halogen lamp and blue, green and gray filters set the light. For photographs, the 20/80 setting of the trinocular head sends most of the light to an add-on camera while the eyepieces stay in use.
Related Inverted Microscopes and Accessories
- Inverted Phase Contrast Microscope — adds 10x, 25x and 40x phase objectives and a turret condenser.
- Inverted Tissue Culture Microscope — binocular inverted model with achromatic 5x to 40x objectives.
- Culture Dish Holder — vinyl-coated rack for carrying, stacking or incubating culture dishes.
More research and teaching models sit in the Microscope category under Microscope Lab Equipment.
Request a Quote
Order through Add To Cart, or use the contact page to send the quantity, the name of your laboratory or institution and the delivery address.
