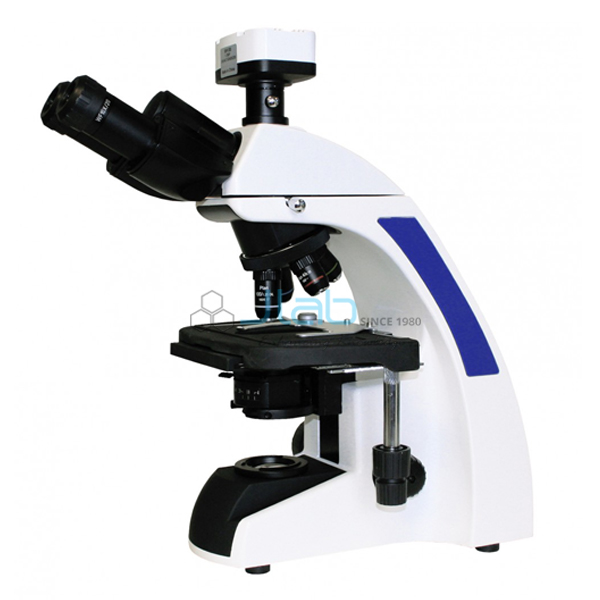

Digital Trinocular Microscope 5W LED Kohler Illumination

Microscope Specifications:-

Viewing Head	JLab trinocular head which will not change the length of the eyepiece tubes when interpupillary distance adjustments are made
	30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements
	Interpupillary adjustment of 48mm-75mm
Eyepiece	Widefield (WF)10x/22mm
	High eyepoint, with eyeguard
	Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time.
	Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain cross hair available (not included)
Nosepiece	Revolving reversed quadruple objective nosepiece accepts four objectives which are color-coded, parcentered and parfocaled.
Nosepiece	The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification.
Objectives	Plan Achromatic DIN 4X/0.10 160/0.17
	Plan Achromatic DIN 10X/0.25 160/0.17
	Plan Achromatic DIN 40XR/0.65 160/0.17
	Plan Achromatic DIN 100XR/1.25 oil 160/0.17
	40XR and 100XR objectives are retractable which have resilient mounts for specimen protection
Focusing System	Low position coaxial coarse and fine focus knobs
	37.7mm per coarse rotation
	0.1mm per fine rotation, fine focus graduation of 1um
	Focusing range 16mm
	Tension adjustment eliminates focus drift
Stage	216mmx150mm built-in double layer mechanical stage
	Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm
	Non-extending rack
	Graphite surface, rounded edges
Illumination	Built-in Kohler illumination with field diaphragm, provides uniformly bright and free-from-glare specimen illumination
	N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen
	Adjustable aperture iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field; a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm.
	5w LED for optimum illumination and contrast
	With light intensity control
Imaging	Trinocular phototube (50% vis, 50% doc) with 5MP/10MP digital eyepiece camera available to capture images and view live video of the specimen on a computer or screen.
Imaging	0.5x C-mount included
Other characters	Ergonomically designed metal frame for stability and durability
	Carrying handle integrated in the back of the stand for easy carrying
	Arm and base made of one piece construction
	Antifungal treatment prevents fungal growth
	Cord holder for convenient storage
Optional Accessory Available (not included)	Dark field kit
	Polarizing kit
	1x C-Mount
DN Series Digital Eyepiece Camera	Advanced camera control
	Capturing high quality images. Great for observing live images on your screen and still images.
	Simply install the ISCapture easy to use software. Compatible with Windows XP/7 /8(32 &64 bits) /Linux/ Mac
	Acquisition of still images and video. Available image types: JPEG, BMP, TIFF and RAW.
	Extend depth of focus (Focus Stacking)
	Image management and image stitching
	High dynamic range (HDR) function
	Fluorescence imaging settings; fluorescence combination function for still images
	Live image measurements; still image measurement

Camera Specification:-

Pixel size(μm)	1.67 × 1.67	2.2 × 2.2
Effective pixels	10.0MP	5.0MP
Max. Resolution (H×V)	3664 × 2748	2592 × 1944
Scan mode	Progressive	Progressive
Shutter	Rolling shutter	Rolling shutter
Frame rate	3fps (3856 × 2764)	5fps (2592 × 1944)
	8fps (1832 × 1370)	21fps (1280 x 960)
	28fps (916 × 680，4 × 4Bin)	25fps (1024 × 768)
	--	38fps (640 × 480)
Color depth	24bit	24bit
Exposure Control	Manual/Auto	Manual/Auto
Integration Time (S)	0.001 - 1	0.001 - 0.8
White Balance	Manual/Auto	Manual/Auto
Operating humidity	45% - 85%	45% - 85%
Operating system	Windows / Linux / Mac	Windows / Linux / Mac
Data interface	USB2.0/480Mb/s	USB2.0/480Mb/s
