Product Code : JL-BTI-2157
Jlab Export is a leading Semi Auto Analyzer Manufacturer,and suppliers in India, Semi Auto Analyzer Manufacturer,and suppliers in South Africa.Semi Auto Analyzer Suppliers in Mozambique,Semi Auto Analyzer A quality product from Jlab ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

Semi Auto Analyzer

100 Open Tests

40 X 4 Line LCD Display

Graphical Thermal Printer

28 Quick Access Test Keys

18µl Flow cell Volume

Pettier Controlled Thermostat

Semi Auto Analyzer Manufacturer India, Semi Auto Analyzer Exporters, Pharmaceutical Instruments Semi Auto Analyzer, Pharmaceutical Instruments Exporters India, Pharmaceutical Instruments Suppliers, Pharmaceutical Instruments Manufacturers

User Friendly Software

Auto Lamp Shut Off

Programmable Air Gap Aspiration

Repeat Measurement of Sample in Flow cell

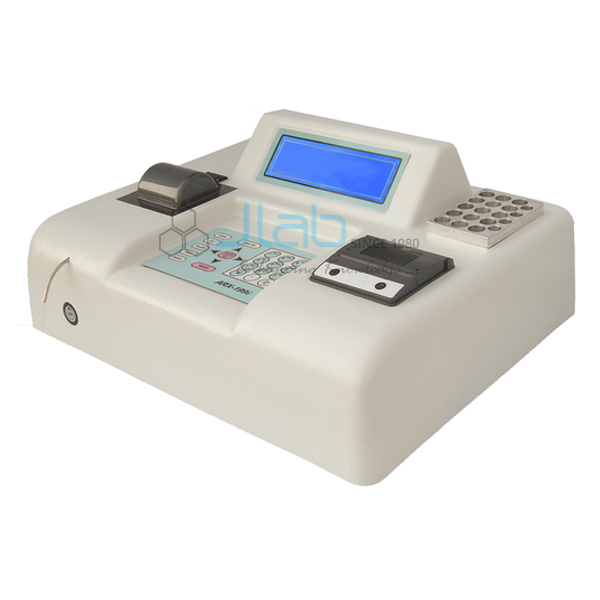

Semi Auto Chemistry Analyzer is a highly sophisticated system for blood analysis.

The instrument is completely controlled by latest microcontroller technology.

It performs biochemistry measurements and processes them according to programs with parameters that can be entered by the operator.

It executes in an economical, rapid and precise manner, most of important biochemistry and haematology tests

The user is provided with a platform so as to perform tests pertaining to Absorbance, End Point, Differential, Kinetic, Fixed Time and Multi standard modes.

Seven narrow band interference filters enable the measurement of common clinical chemical tests.

The 40 x 4 line LCD display is used to display the status and the error/fault messages.

The data and the graphical plot for calibration curves as well as the kinetic tests are available on the in-built thermal printer.

Auto Lamp shut off facility is provided to increase the life of lamp.

Up to 100 different methods, individually programmable are present at any time in the memory of the instrument.

28 quick access test keys are available on the keyboard for faster operations.

High efficiency peristaltic pump is located at the rear for easy access.

The use of latest technology, high quality components, advanced optic system and user friendly software makes Chem. 400 an ideal choice for the modern laboratory.

Totally “Open” 100 test programs are accessible through membrane type soft touch comprehensive keyboard.

Any or all parameters can be changed by the user.

28 most common tests are selectable through quick access test keys.

Six special function keys and complete Numeric keyboard is provided.

A 40 x 4 character LCD display provides a very convenient user interface.

A bright yellow backlit provides a distinct and clear visibility of the data.

The display shows the date, time, error messages, test results, procedural prompts etc.

The operation manual is not required every time as the display guides through every step of operation.

Chem. 400 has in-built thermal printer to print the analytical results as well as program parameters.

The thermal printer used is very fast and noiseless.

An efficient software program provides the maximum information in the minimum possible space thereby reducing the printing cost.

Dual curette compartment provides the flexibility to the user to use either flow cell or curette for sample measurement.

The Flow cell has measuring volume of only 18 µl thus contributes significantly in saving of reagent cost.

The temperature regulation of the sample compartment is done using the politer effect, thus increasing the accuracy.

High precision optical and high quality interference filters are used to provide maximum accuracy and reliability of data.

Our seven interference filter i.e. 340 nm, 405 nm, 505 nm, 546 nm, 578 nm, 630 nm, 670 nm are provided to perform the measurement of common clinical biochemical tests.

The stepper motor controlled filter wheel enables dichromatic measurement of end point and multi standard assays.

The latest technology microcontroller and a high stable optical system provide optimum accuracy and precision in results.

Automatic system checks for Optical System, Filter Wheel, Printer and Data Memory are performed.

The self test reports are available on LCD as well as printer.

Thermal printer used is capable of providing the graphical plot for the Kinetic, Fixed Time and Multi standard tests, the linear and polynomial regression analysis techniques are used to increase the reliability and accuracy of results.

Specifications:-

Optiacal System:-
Light Source	6V, 10W Halogen Lamp
Spectral Field	340 - 690 nm
Filter Change	Automatic stepper motor driven
Filters	340, 405, 505, 546, 578, 630, 670 nm + provision for the user defined filter
Detector	Silicon photo diode
Thermostath
Heating Elements	Refrigerating and heating Peltier cell
Temperature	25 °c, 30 °c and 37 °c selectable
Flow System
Flow cell	18 μl capacity flow through cell
Typical Working Vol.	500 μl
Min. Working Vol.	350 μl
Intake	Peristaltic pump with programmable intake volume
Curette Option	Available for micro & macro curettes
Measuring System
Measuring Range	0 - 2.500 Abs
Photometric Linearity	± 1% from 0 - 2.000 Abs
Photometric Accuracy	± 0.005 Abs. from 0 - 0.500 Abs, ± 1.0% from 0.501 - 2.500 Abs
Wash Function	Programmable volume
Measuring Method	End Point, Differential, Kinetic, Fixed Time, Multistandard, Absorbance modes (Mono or Bichromatic), Coagulation.
Calibration	Automatic against standard
Zero Abs	Automatically set
Data Display and Programming
Keyboard	57 Keys, Soft Touch Membrane type
Quick Test Keys	28 quick test keys, defining the most commonly used tests
Display	40 x 4 character back illuminated alphanumeric LCD
Thermal Printer	Built in high 2" resolution thermal printer with graphics capability
External Printer	Centronics Parallel Interface for dot matrix printer.
Memory Capacity	100 test programs (All open)
Serial Output	RS232C standard
Physical Features
Power	230 V ± 10% AC, 50/60Hz
Dimensions (L x B x H)	470 x 365 x 85 mm (Approx.)
Weight	11 Kg. (Approx.)
Sample Storage
Sample Storage	For 100 sample with patient name and number (ID) printing option.
Quality Control
Quality Control	For 100 sample with patient name and number (ID) printing option.
