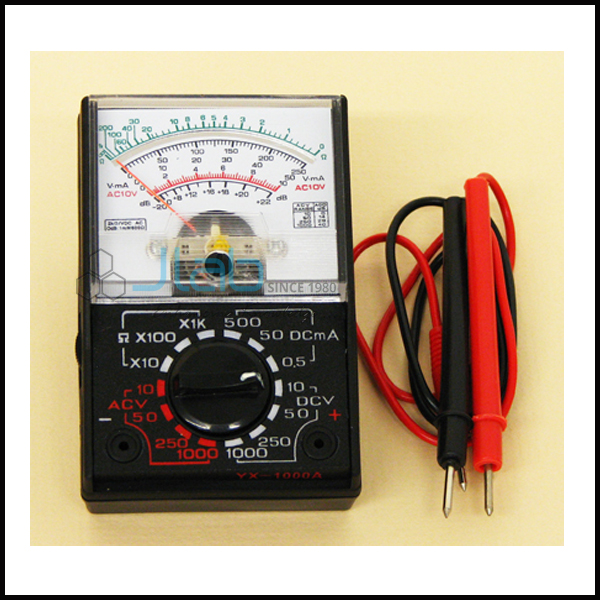

Multi-Meter Analog with Fuse and Diode Protection JLab

Multi-Meter Analog with Fuse and Diode Protection JLab

Product Code : JL-PI-451

Multimeter Analog with Fuse & Diode Protection

Fuse and Diode Protection.

Specifications:

  • DC Voltage:
    • Ranges: 0.1~0.5~2.5 - 10~50 - 250~1000V
    • Accuracy at FSD: 3; (1000V; 5)
    • Sensitivity: 20k/V
  • AC Voltage:
    • Ranges: 10~50~250~1000V
    • Accuracy at FSD: 4; (1000V; 5)
    • Sensitivity: 9K/V
    • Decibelmeter: -10 to +22dB; 0dB=1mw / 600
  • DC Current:
  • Ranges: 50 A (at 0.1VDC position), 2.5mA, 25mA, 0.25A
  • Accuracy at FSD: 3; (10A; 5)
  • Volt Drop: 250mV
  • Resistance:
  • X 1~0.2 up to 2k, Midscale, at 20
  • X 10~2 up to 20k, Midscale, at 200
  • X 100~20 up to 200k, Midscale, at 2k
  • X 1K~200 up to 2M, Midscale, at 20k
  • X 10K~2k up to 20M, Midscale, at 200k
  • Accuracy at FSD: 3
  • Iceo 150A~15mA~150mA
  • Size: 6 inch (150mm) x 4 inch (100mm) x 1.37 inch (35mm)
  • Weight: 0.5 lb

Supplied complete with test leads and batteries.
