Tangent Galvanometer

Tangent Galvanometer

Product Code : JL-PLE-4130

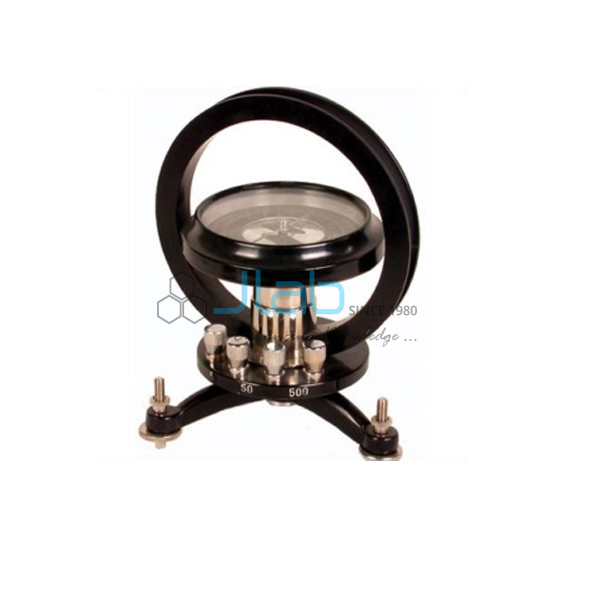

Tangent Galvanometer
A bakelite ring or bobbin is of 165 mm diameter with 3 windings of 2, 50, & 500 turns.
The magnetometer is supported on a brass tube fitted on an ebonite plate which is free to revolve in the base of the instrument.
The magnetometer & the ring can both be rotated independently of the base which is with levelling screws.
The compass box consists of a bakelite base with metal dial of diameter 100 mm graduated in degrees & with anti parallax mirror.
Cobalt steel magnet & aluminium pointer are mounted on special synthetic sapphire.
The needle moves on special pivot.
This combination makes the needle virtually frictionless.

    Please Login To Download pdf
