Gas Turbines or Turbojet Engine Model Manufacturer,Supplier and Exporter in India
Product Code : EL-IEL-10156
Jlab Export is a leading Gas Turbines or Turbojet Engine Model Manufacturer,and suppliers in India

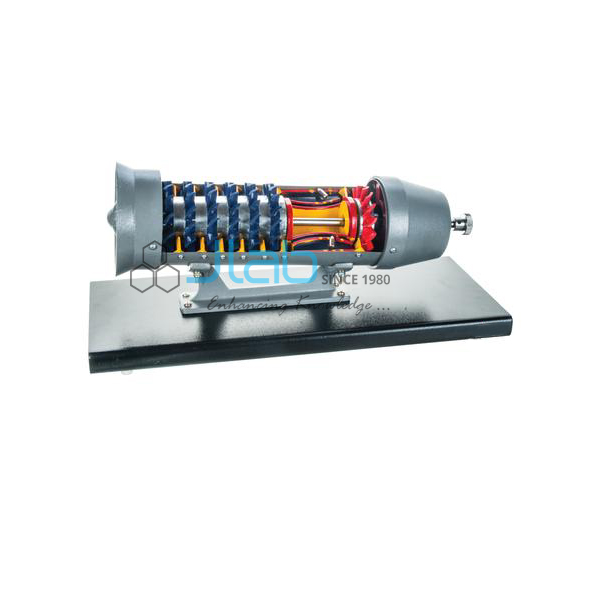

Gas Turbines or Turbojet Engine Model (code EL-IEL-10156) is a cut model of a turbojet in light metal on a metal base, showing the air intake, an axial flow two-stage compressor, the fuel supply, combustion chamber, turbine rotor and the exhaust, where the jet thrust is produced. Students can trace the gas path through a jet engine from front to back. This turbojet cut model is made in Ambala, India, by JLab.
Specifications
| Parameter | Detail |
|---|---|
| Model type | Cut model |
| Sections shown | Air intake, axial flow two-stage compressor, fuel supply, combustion chamber, turbine rotor, jet thrust and exhaust |
| Construction | Light and strong metal |
| Base | Metal |
| Quality check | Each engine model is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Product code | EL-IEL-10156 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
The Brayton Cycle Along the Engine
A turbojet runs on the Brayton cycle. Air enters through the intake and the two compressor stages raise its pressure. In the combustion chamber, fuel burns in this compressed air at roughly constant pressure, and the hot gas then expands through the turbine rotor, which takes enough energy from it to drive the compressor through a common shaft. The remaining energy leaves through the exhaust nozzle as a high-speed jet, and the reaction to that jet is the engine’s thrust.
Gas Turbine and Turbojet
The same core of compressor, combustion chamber and turbine underlies every gas turbine. In a turbojet the leftover energy forms the jet; in a shaft-power gas turbine, such as one driving a generator or a helicopter rotor, further turbine stages take that energy out as shaft work instead.
Turbocharger, Stirling and Wankel Models
- Turbo Charger — a dissectible turbocharger cut section built from actual parts on an iron base.
- Stirling Engine Working Model — a working model of the heat engine that cycles a gas between temperatures.
- Wankel Engine Model — a cutaway rotary piston engine with a triangular rotor and printed diagrams.
Engine and turbine models are kept together in the I.C. Engine Lab, where the turbine, rotary and Stirling models share one category under Fluid Mechanics and Hydraulics Lab Equipment.
Request a Quote
Send your enquiry by Add To Cart or the contact page; a quotation follows once the quantity and delivery address are known.
