Universal IC Tester-1 Manufacturer,Supplier and Exporter in India
Product Code : EL-IT-10169
Jlab Export is a leading Universal IC Tester-1 Manufacturer,and suppliers in India
Universal IC Tester-1 (code EL-IT-10169) checks digital logic ICs together with a wide range of analog and special-function ICs, and can search automatically for an unknown digital IC. It is a product of Jain Laboratory Instruments Pvt Ltd (JLab), made at the company’s works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| ICs tested | More than 1500 ICs |
| Digital ICs | Wide range, such as 74 series and 40/45 series |
| Analog ICs | Op-amps, 555 timers, transistor arrays, analog switches, opto-couplers, 12-bit/8-bit ADCs and DACs, comparators |
| Special-function ICs | Waveform generator, PWM, sample-and-hold, voltage regulator, frequency-to-voltage converter, latch driver, VCO, PLL and cross-point switch ICs |
| Seven-segment displays | Common cathode and common anode types |
| Auto search | For all digital ICs |
| Test method | Truth table/sequence table comparison |
| IC sockets | Two 40-pin DIP ZIF sockets |
| Keypad | 50 keys, numerical and functional |
| Display | 16 x 2 LCD |
| Supply input voltage | 230 V AC |
| Quality check | Each tester is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-IT-10169 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with Other JLab IC Testers?
Each tester in this table checks 74 series and 40/45 series digital ICs; the columns show where they differ.
| Model | ICs it can test | ZIF socket | Display |
|---|---|---|---|
| This tester (EL-IT-10169) | More than 1500 ICs | Two 40-pin DIP | 16 x 2 LCD |
| Universal IC Tester | More than 600 ICs | 40-pin DIP | 9-digit seven-segment |
| Low Cost Universal IC Tester | More than 750 ICs | 40-pin and 28-pin DIP | 16 x 2 LCD |

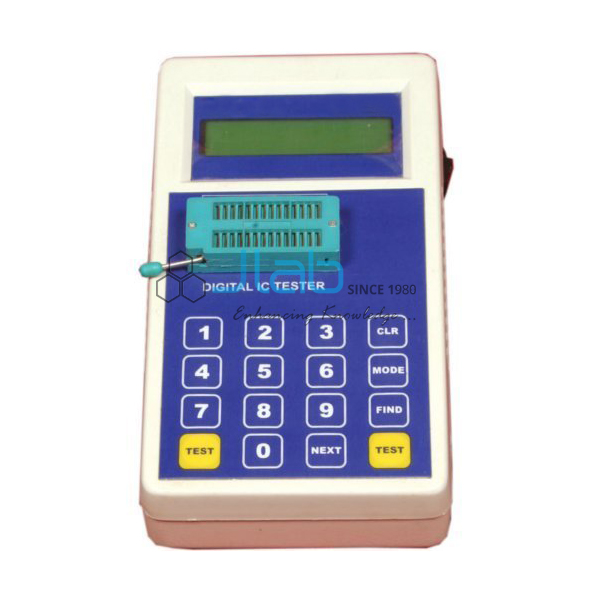

| Digital IC Tester | More than 300 ICs | 24-pin DIP | 16 x 1 line LCD |
What Is the Universal IC Tester-1 Used For?
Testing a chip outside its circuit separates a dead IC from a wiring or design fault. With logic, analog and special-function devices in one library, a single unit can screen IC stock for digital and analog work alike and recheck chips removed from faulty boards.
Frequently Asked Questions
Which analog and special-function ICs can it test?
Among others, op-amps, 555 timers, 12-bit and 8-bit ADCs and DACs, comparators, voltage regulators, VCO and PLL ICs, as well as seven-segment displays of both common cathode and common anode types.
How are digital ICs tested?
Through truth table/sequence table comparison: the tester drives the chip’s inputs through set patterns and checks every output state against what the device should give, with sequential parts such as counters checked against an expected sequence.
What supply voltage does it need?
230 V AC.
What should be in an export enquiry?
State the quantity, the destination country with port or city, the delivery terms you want (for example FOB or CIF), packing or labelling instructions and any tender reference.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a laboratory and electronics equipment manufacturer in India, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. The tester is made at JLab’s own works rather than resold from a trader, so buyers order direct from the factory. JLab exports worldwide and ships to buyers in every region; examples include Hong Kong in East Asia, Mali in West Africa, Panama in Central America and the Caribbean, Lesotho in Southern Africa and Gabon in Central Africa. Tender buyers can refer to the JLab lab tenders page.
Related Testers and IC Trainers
- Linear IC Tester — an analog IC tester covering op-amps, 555 timers, comparators, voltage regulators and PLL ICs.
- Handy Linear IC Tester — a small, portable linear IC tester usable with batteries.
- Digital IC Trainer Kit — for building TTL and CMOS digital IC circuits.
- Analog IC Trainer Kit — for analog IC circuit work with resistor and capacitor banks and a sine-wave source.
The full IC Tester range sits within Electronics Lab Equipments.
Request a Quote
Click Add To Cart on this page to send an enquiry, or use the contact page; include code EL-IT-10169, the number of testers and the delivery country.
