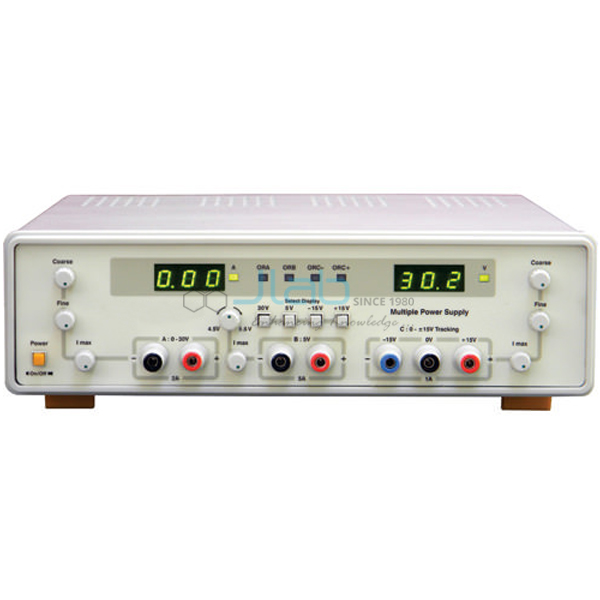

5V / 5A Multiple DC Power Supply Manufacturer,Supplier and Exporter in India
Product Code : EL-DPS-10417
Jlab Export is a leading 5V / 5A Multiple DC Power Supply Manufacturer,and suppliers in India
5V / 5A Multiple DC Power Supply (code EL-DPS-10417) packs three floating, independent DC outputs into one case: 0–32 V at 2 A, a 0–15 V dual tracking pair at 1 A each, and a 5 V output rated 5 A. Constant voltage and constant current operation, an adjustable current limiter and short-circuit protection are included. JLab produces this three-output 5 V / 5 A supply in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Outputs | 0–32 V at 2 A; 5 V at 5 A; 0–15 V dual tracking at 1 A each |
| Output type | Three floating, independent DC supplies |
| Operating modes | Constant voltage (CV) and constant current (CC) |
| Current limit | Adjustable current limiter |
| Displays | 3-digit for voltage and 3-digit for current; switchable |
| Protection | Short-circuit protection |
| Ripple | Low ripple voltage |
| Quality check | Each power supply is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-DPS-10417 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Where the 5 A Output Differs
Its 5 V output is rated 5 A, against 2 A on the Multiple DC Power Supply and 1 A on the Multiple Output DC Power Supply, for loads that draw more current at 5 V. The variable output also reaches 32 V rather than 30 V. In the 0–15 V dual tracking pair both halves move together, giving equal positive and negative voltages about the common terminal for analog circuits. Voltage and current each have a 3-digit reading, switched to show one or the other.
Other Multi-Output and Tracking Supplies

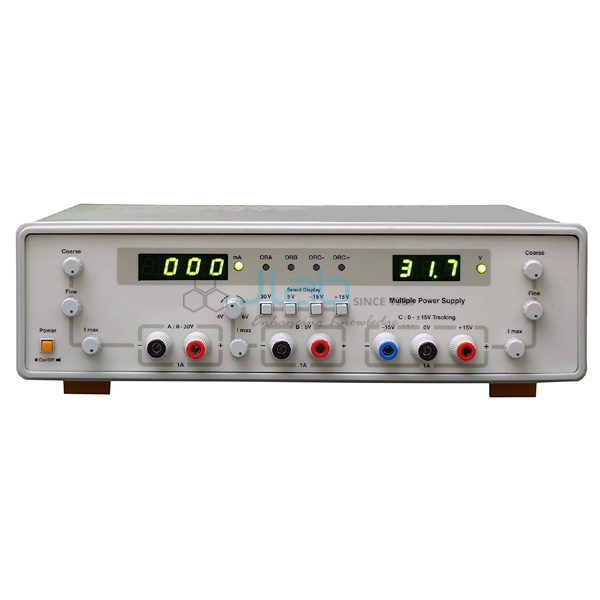

- Multiple DC Power Supply — 0–30 V and 5 V outputs at 2 A each, with ±15 V tracking.

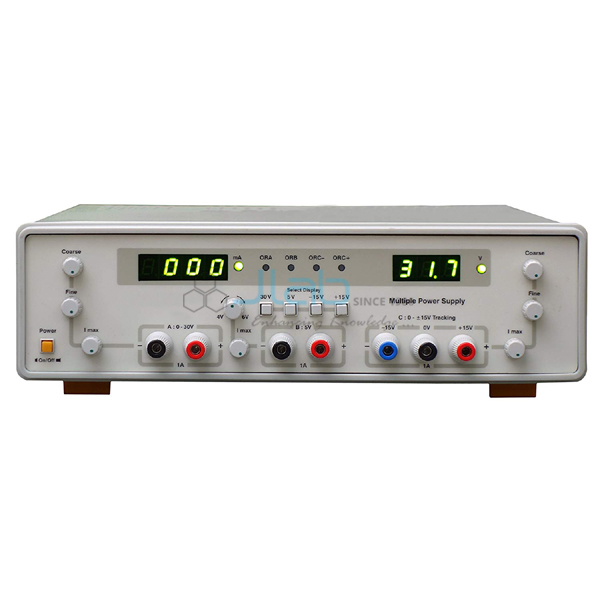

- Multiple Output DC Power Supply — three 1 A outputs, its 5 V output adjustable from 4.8 to 6 V.
- Dual Tracking Power Supply — 0 to ±30 V tracking at 2 A and 5 V at 2 A.
The rest of the range is in DC Power Supplies, inside Test and Measurement Equipment.
Request a Quote
Send an enquiry with Add To Cart or through the contact page, including the quantity and the delivery address.
