Continuously Variable Transmission Actual Cut Section Manufacturer,Supplier and Exporter in India
Product Code : EL-IEL-10122
Jlab Export is a leading Continuously Variable Transmission Actual Cut Section Manufacturer,and suppliers in India

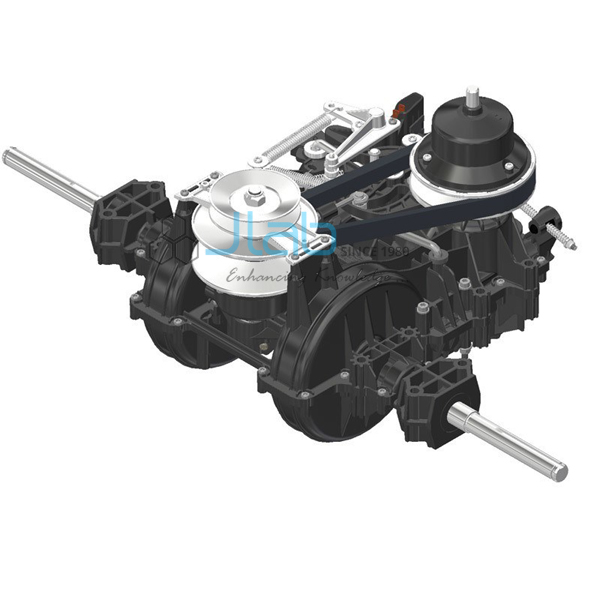

Continuously Variable Transmission Actual Cut Section (code EL-IEL-10122) is a sectioned CVT built from actual parts on a square iron pipe frame and driven by a permanent magnet DC motor through a variable speed control drive. An rpm sensor with a digital display is fitted, so students can watch the transmission turn and read its speed. JLab manufactures this CVT section in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Model type | Actual cut section |
| Transmission | Continuously variable transmission (CVT) |
| Drive | Permanent magnet DC motor with variable speed control drive |
| Speed measurement | RPM sensor with digital display |
| Construction | Actual parts assembled on a square iron pipe frame |
| Dissectible | Yes, for demonstration |
| Quality check | Each CVT cut section is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Product code | EL-IEL-10122 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How a CVT Changes Ratio Without Steps
A conventional gearbox offers a fixed set of ratios. A CVT instead uses two pulleys whose halves move closer together or further apart, linked by a belt or chain. As the working diameter of one pulley grows the other shrinks, so the ratio between input and output changes smoothly across its range rather than in steps.
Using the Motor Drive and RPM Display
Because the section is motor driven, it can be demonstrated running. The speed control sets how fast the motor turns the transmission, and the digital display shows the rpm picked up by the sensor, so speed can be read while the parts are watched in motion. All the necessary CVT parts are in working form, and the unit is dissectible.
Related Automatic and Manual Gearbox Sections
- Automatic Gear Box Actual Cut Section — another transmission without manual gear changes, sectioned from actual parts.
- Synchromesh Gear Box - 4 Forward and 1 Reverse — a stepped manual gearbox with four forward speeds and one reverse.
- Gear Box Actual Cut Section — a general gearbox cut section on a square iron pipe frame.
The I.C. Engine Lab pages, within Fluid Mechanics and Hydraulics Lab Equipment, hold the full set of transmission sections.
Request a Quote
Send an enquiry with Add To Cart or from the contact page, including the quantity and the delivery address, to receive a quotation for the CVT section.
