Synchromesh Gear Box - 4 Forward and 1 Reverse Manufacturer,Supplier and Exporter in India
Product Code : EL-IEL-10116
Jlab Export is a leading Synchromesh Gear Box - 4 Forward and 1 Reverse Manufacturer,and suppliers in India

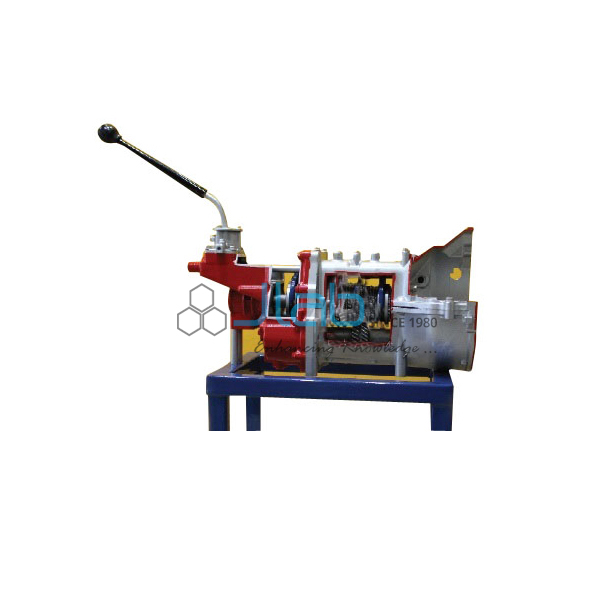

Synchromesh Gear Box - 4 Forward and 1 Reverse (code EL-IEL-10116) is an actual cut section of a synchromesh gearbox with four forward speeds and one reverse, assembled from real gearbox parts on a square iron pipe frame so students can see how this type of gearbox is put together. The section can also be taken apart for demonstration. This synchromesh cut section is produced by JLab at Ambala in India.
Specifications
| Parameter | Detail |
|---|---|
| Model type | Actual cut section |
| Gearbox type | Synchromesh |
| Gears | 4 forward and 1 reverse |
| Construction | Actual gearbox parts assembled on a square iron pipe frame |
| Dissectible | Yes, for demonstration |
| Quality check | Each cut section model is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Product code | EL-IEL-10116 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Synchromesh Engagement Works
In a synchromesh gearbox the forward gears stay in mesh and turn freely on the main shaft until one is selected. As the lever moves, the cone clutch of a synchroniser rubs against a matching cone on the chosen gear and brings gear and shaft to the same speed; only then do the dog teeth of the sliding sleeve lock the gear to the shaft. That speed matching is what lets the driver change gear smoothly without double declutching.
Choosing Between the Two Synchromesh Models
This unit is the gearbox on its own, sectioned to show its internals. The Synchromesh Gear Box model pairs the gearbox with a single plate clutch, so the clutch and the gear change can be explained together.
Other Manual Gearbox Models
- Synchromesh Gear Box — the same gearbox type, paired with a single plate clutch.
- Constant Mesh Gear Box Actual Cut Section — gears always meshed, engaged by dog clutches without synchro cones.
- Sliding Mesh Gear Box Actual Cut Section — the earlier type, in which gears slide along the shaft into mesh.
Gearbox, axle and chassis models are grouped under I.C. Engine Lab in Fluid Mechanics and Hydraulics Lab Equipment.
Request a Quote
Ask for a quotation through Add To Cart or the contact page, mentioning the quantity, this model name and the delivery town.
