Dual View Coaxial Focusing Beginner Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-8053
Jlab Export is a leading Dual View Coaxial Focusing Beginner Microscope Manufacturer,and suppliers in India

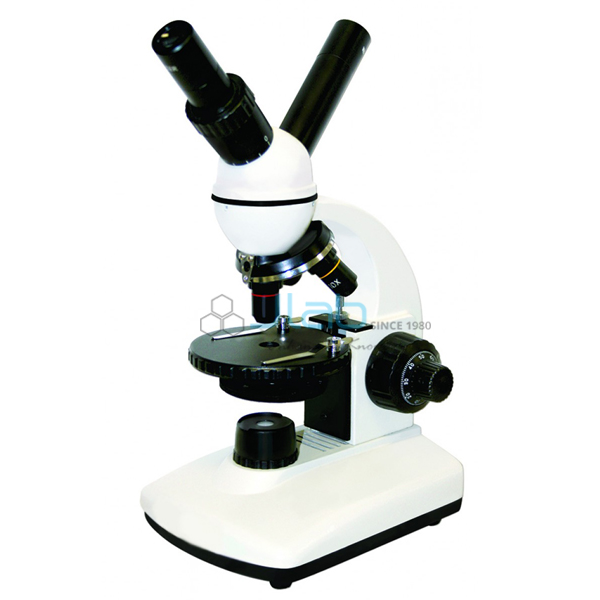

Dual View Coaxial Focusing Beginner Microscope (code EL-M-8053) is a cast-metal student microscope that combines a dual view head with coaxial coarse and fine focusing and LED illumination built into the base. Its parfocal, parcentred achromatic objectives of 4X, 10X and 40XR give 40X, 100X and 400X with the locked-on 10X eyepiece. Its maker is JLab, which produces corded and cordless versions in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Head | Dual view, 360° rotating, 45° incline |
| Objectives | Achromatic 4X, 10X and 40XR (40XR retractable); colour-coded, parcentred and parfocal |
| Eyepiece | Locked-on WF 10X with pointer |
| Magnification | 40X / 100X / 400X |
| Focus | Coaxial coarse and fine; rack and pinion with slip clutch at both ends of travel; safety rack stop |
| Nosepiece | Reverse, 3 positions, positive click stops |
| Illumination | LED built into the base, on/off switch, 10,000-hour lifespan; 6-hole rotating disc diaphragm |
| Power options | Corded: three-wire grounded cord. Cordless: 9V rechargeable NiMH batteries with plug-in adapter, 8-hour charge, up to 50 hours per charge |
| Stage | 3.5 in round gliding stage, 360° rotation, with clips |
| Dimensions and frame | 12 in high, 6.5 × 5.25 in base; all metal |
| Quality check | Each microscope is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 5 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-M-8053 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Where It Sits in the Coaxial Range
This model takes the coaxial focusing of the Monocular Coaxial Focusing Beginner Microscope and replaces its monocular head with a dual view head; optics, stage, LED and power options are otherwise the same. The coarse knob finds the specimen and the fine knob on the same shaft sharpens it, while the parfocal objectives keep the image near focus when the nosepiece moves between powers.
Setting the Light
Light from the base LED passes through a rotating disc with six apertures; a wider hole keeps the field bright, and a narrower one adds contrast to faint, unstained detail. An on/off switch controls the LED, which has a lifespan of 10,000 hours. Corded units use a three-wire grounded cord, and cordless units recharge 9V NiMH batteries in 8 hours for up to 50 hours of use.
Related Coaxial Focusing Microscopes
- Dual View with Digital Camera Coaxial Focusing Microscope — the same coaxial dual view design with a digital camera added
- Monocular Coaxial Focusing Beginner Microscope — coaxial-focus LED model with a monocular head
- LED Corded/Cordless Dual View Microscope — dual view LED model with coarse focus control only
Find further choices in Microscope, part of Microscope Lab Equipment.
Request a Quote
Send an order via Add To Cart or our contact page, giving the quantity, the corded or cordless version and the delivery location.
Last updated: 29 October 2026
