Electronic Total Station Reflectorless Manufacturer,Supplier and Exporter in India
Product Code : EL-SI-1714
Jlab Export is a leading Electronic Total Station Reflectorless Manufacturer,and suppliers in India

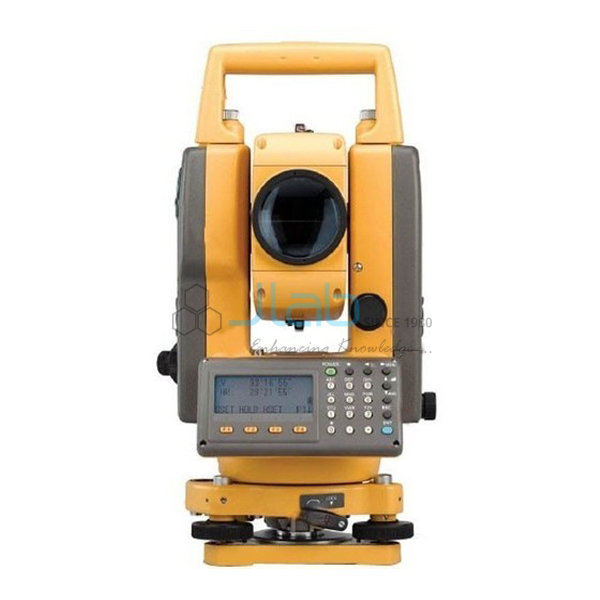

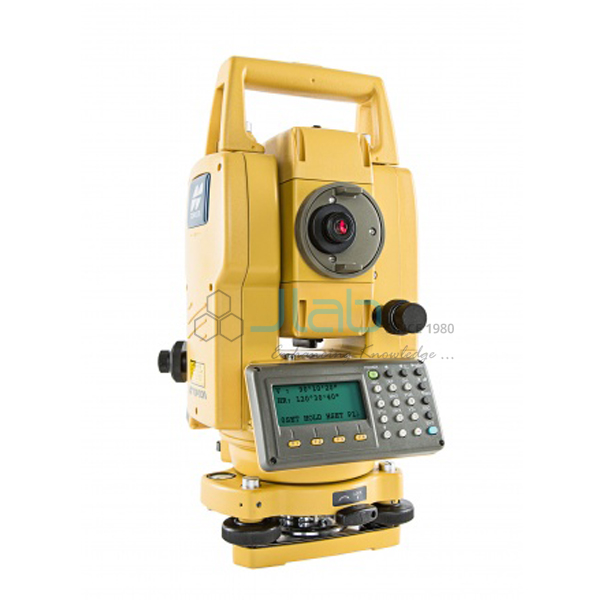

Electronic Total Station Reflectorless (code EL-SI-1714) is a total station whose distance meter can measure without a prism, with dual horizontal and vertical angle detection, a 30x erect-image telescope and liquid-electric vertical compensation of 1" accuracy. A 6 V DC Ni-H battery runs it for 8 hours. JLab builds this reflectorless model in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Angle detection | Horizontal dual, vertical dual |
| Telescope | Erect image, 30x, length 154 mm |
| Effective aperture | 45 mm (DTM: 50 mm) |
| Field of view / minimum focus | 1° 30’ / 1 m |
| Vertical compensation | Liquid-electric detection, accuracy 1" |
| Vial sensitivity | Plate vial 30"/2 mm; circular vial 8’/2 mm |
| Optical plummet | Erect image, 3x, focusing 0.5 m to infinity, field of view 5° |
| Display | On both sides |
| Battery | Rechargeable Ni-H, 6 V DC, 8 hours operation |
| Dimensions and weight | 200 x 180 x 350 mm, 5.8 kg |
| Quality check | Each total station is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-SI-1714 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Measuring Without a Prism
A reflectorless total station takes the distance to the target surface itself, so points where no prism can be held can still be fixed by angle and distance. Like any total station it joins an electronic theodolite to the distance meter; on this model both circles use dual detection.
Setting Up Over the Station
The circular vial (8’/2 mm) is centred first and the plate vial (30"/2 mm) used for fine levelling, while the 3x optical plummet, focusing from 0.5 m, centres the instrument over the ground mark. The liquid-electric compensator then corrects the vertical reading for small residual tilt, and the display on both faces lets readings be taken from either side.
Other Total Stations and a Tripod
- Electronic Total Station — infrared EDM model with absolute angle encoding.
- Sokkia Total Station — supplied model with reflectorless EDM and on-board field software.
- Wooden Tripod — telescopic wooden tripod for total stations and theodolites.
See Surveying Instruments for the rest of this group, part of Survey Equipment.
Request a Quote
Ask for a quote through Add To Cart or the contact page; say whether you need the standard or DTM telescope aperture, the quantity and the delivery point.
