Porcelain Triangles Manufacturer,Supplier and Exporter in India
Product Code : EL-MI-4899
Jlab Export is a leading Porcelain Triangles Manufacturer,and suppliers in India

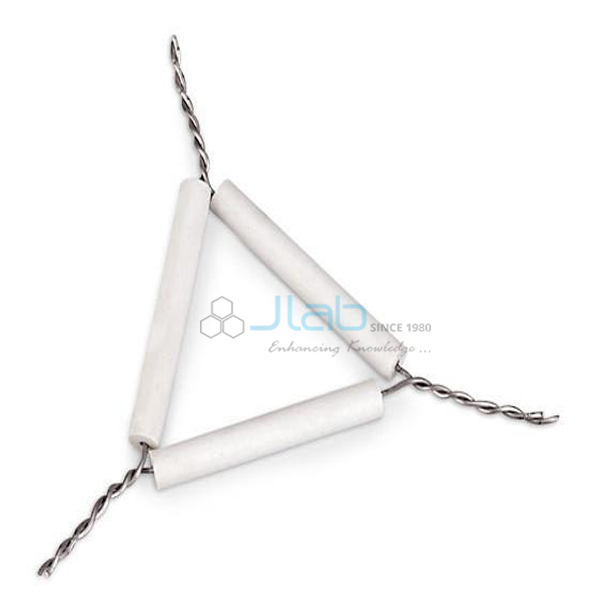

Porcelain Triangles (code EL-MI-4899), also called pipeclay triangles, are crucible supports made of three twisted iron wires sheathed in three unglazed porcelain tubes. Resting on a tripod stand or ring, a triangle holds a crucible over a Bunsen burner flame in school, college and analytical chemistry labs. Three sizes are offered — 55, 65 and 75 mm tube length — to suit the crucible. They are made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Also called | Pipeclay triangle (named after its triangular shape) |
| Construction | Three iron wires twisted together, sheathed with three unglazed porcelain tubes |
| Materials | Porcelain tubes, iron wire |
| Sizes (length of ceramic tube) | 55 mm, 65 mm or 75 mm — chosen according to the size of the crucible |
| Maximum temperature | Up to 800, as listed — the listing gives no unit; °C is the usual unit for this rating, so confirm it in your quotation |
| Quality check | Each triangle is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-MI-4899 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with Other JLab Clay Triangles?
| Model | Tubes and wire | Size | Other listed details |
|---|---|---|---|
| Porcelain Triangles (EL-MI-4899) | Unglazed porcelain tubes on three twisted iron wires | 55, 65 or 75 mm tube length | Maximum temperature listed as up to 800 |
| Clay Triangle | Clay pipes on steel wire | 2 inch (50 mm) side | — |
| Pipe Clay Triangle | Pipe-clay tubes on a wire framework | Side length not stated | Rests on a tripod stand or ring |
Choose the porcelain triangles when you want to match the support to your crucible from three tube lengths; the 50 mm-side clay triangle is a single fixed size on steel wire.
What Is a Porcelain Triangle Used For?
A pipeclay triangle lets a crucible sit directly in the hottest part of a Bunsen flame. Typical uses are heating a substance to constant mass, driving off the water of crystallisation from copper sulphate crystals, burning magnesium ribbon to compare masses before and after, and igniting precipitates in gravimetric analysis at college level. The triangle is laid on a tripod stand or a retort ring, and the crucible should sit firmly in it without slipping through — which is why the size is chosen by crucible.
A hot triangle looks the same as a cold one, so leave it to cool on a heat-resistant mat and move the crucible with tongs. Porcelain is brittle: do not drop the triangle or cool it suddenly in water, and replace it if a tube cracks or the wire shows through.
What to Specify When Ordering
- Size — 55, 65 or 75 mm tube length; give your crucible size if you are unsure which one fits.
- Quantity per size — the minimum order is 10 units; a class set often needs one triangle per bench group plus spares.
- Temperature requirement — state your working temperature so JLab can confirm the rating.
- Crucibles, tongs and tripods — these are separate items that can join the same enquiry.
Frequently Asked Questions
Which size of porcelain triangle do I need?
Choose by crucible. The triangles come in 55, 65 and 75 mm tube lengths, and the crucible should rest firmly in the triangle without dropping through. If you are unsure, send the crucible size with your enquiry.
What temperature can the triangle withstand?
The listing states a maximum temperature of up to 800 but gives no unit. °C is the usual unit for this kind of rating; JLab confirms it in the quotation.
Is a porcelain triangle the same as a pipeclay triangle?
Yes. The listing uses both names for the same item; “pipeclay triangle” refers to the triangular frame of ceramic tubes.
How does it differ from the JLab Clay Triangle?
The Clay Triangle is listed with clay pipes on steel wire and a 2 inch (50 mm) side. This item uses unglazed porcelain tubes on twisted iron wire and comes in three tube lengths.
Are the crucible and tripod stand included?
No. This listing covers the triangle only; crucibles, crucible tongs and tripod stands are separate items, linked below.
What should I send for an export quotation?
The sizes and quantities, the destination country and port or city, preferred delivery terms such as FOB or CIF, any packing or labelling instructions, and a tender reference if there is one.
Who manufactures these triangles?
JLab (Jain Laboratory Instruments Pvt Ltd) makes them at its works in Ambala, Haryana, and quotes as the manufacturer.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a manufacturer of chemistry lab apparatus in India, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. The triangles are assembled at JLab’s own works, not bought in from a trader, so schools, colleges, dealers and importers deal directly with the maker, every triangle is checked by eye before packing, and repeat orders and spares come from the same source. JLab exports worldwide and ships to buyers in every region — for example Ethiopia in East Africa, Germany in Western Europe, Taiwan in East Asia, Sri Lanka in South Asia and Paraguay in South America. For tender purchases see the lab tenders page.
Crucibles and Heating Accessories
- Crucible with Lid Porcelain Low Form — low-form porcelain crucibles with lids in several capacities.
- Tongs for Crucibles — tongs that keep hands a safe distance from hot crucibles.
- Iron Tripod Stand — a cast-iron tripod with hammer-tone finish to carry the triangle.
- Pipe Clay Triangle — an alternative crucible support of pipe-clay tubes on a wire frame.
More items are listed under Measuring Instruments and the wider Indian Instruments range.
Request a Quote
Quotes come directly from the manufacturer. Use Add To Cart on this page, or send the sizes, the quantity (minimum 10 units) and your delivery location through the contact page.
