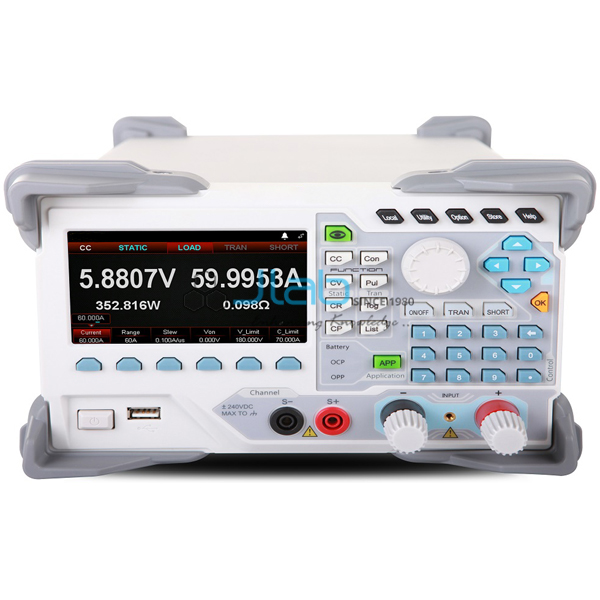

Programmable DC Electronic Load

Product Code : EL-DEL-10428
Jlab Export is a leading Programmable DC Electronic Load Manufacturer,and suppliers in India

Programmable DC Electronic Load (code EL-DEL-10428) is a programmable load for testing power systems and batteries, with static, transient and advanced application modes that can be configured. It steps current at a slew rate of up to 5 A/µs, loads dynamically at up to 30 kHz and charts the results graphically. JLab manufactures this programmable electronic load in Ambala, India.

Specifications

ParameterDetail
Load typeProgrammable DC electronic load
Test modesStatic, transient and advanced application modes, configurable
Load conditionsVoltage and current, set at high resolution
Slew rateUp to 5 A/µs
Dynamic loadingUp to 30 kHz
Built-in applications3 set-ups for battery testing and current or power optimisation
DisplayGraphical charting of dynamic load behaviour
Remote operationSeveral communication interfaces; PC software for operation and monitoring
Quality checkEach electronic load is visually inspected before dispatch
Pack quantityEach (sold individually)
Minimum order quantity1 unit
Dispatch timeUsually 7–10 working days
Product codeEL-DEL-10428
ManufacturerJain Laboratory Instruments Pvt Ltd (JLab) — OEM
Country of originIndia (made in Ambala, Haryana)

What an Electronic Load Does

An electronic load takes the place of a real load on the bench. It draws power from the system or battery under test at a programmed voltage or current condition and dissipates that energy itself, so the source can be tested under controlled, repeatable conditions. In static mode the load stays at one setting.

Transient Testing: Slew Rate and Dynamic Loading

Transient mode switches the load between levels to show how a supply responds to sudden changes in demand. The slew rate, up to 5 A/µs, sets how quickly the current moves from one level to the next, and dynamic loading at up to 30 kHz repeats those steps rapidly. Graphical charting shows the dynamic load behaviour on screen.

Battery Testing and Remote Operation

Three built-in application set-ups cover battery testing and current or power optimisation. Several interfaces handle remote communication, and PC software allows the load to be operated and monitored from a computer.

Related DC Power Supplies and Battery Tester

This load is listed in DC Electronic Load under Test and Measurement Equipment.

Request a Quote

Enquiries go through Add To Cart or the contact page; a quotation follows once the quantity and the delivery address are known.
