Rotary Microtome Erma Type Manufacturer,Supplier and Exporter in India
Product Code : EL-RMET-2324
Jlab Export is a leading Rotary Microtome Erma Type Manufacturer,and suppliers in India

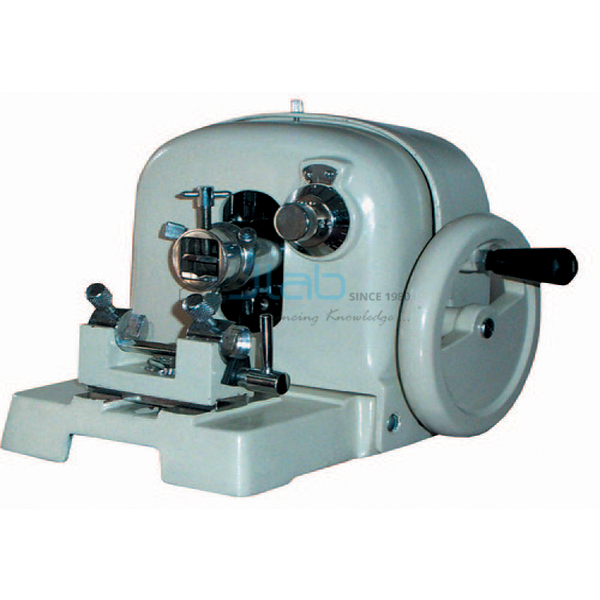

Rotary Microtome Erma Type (code EL-RMET-2324) is an Erma-type (pattern) rotary microtome for cutting uniform sections up to 25 microns thick, set in steps of 1 micron, in histology, botany and zoology laboratories. Its internal mechanism is completely enclosed in a metal cover, and it arrives with a 120 mm razor, three object holders, a honing plate and an oil can. It is made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Type | Rotary microtome, Erma type (design pattern) |
| Section thickness | Uniform sections up to 25 microns (µm), set in steps of 1 micron |
| Mechanism cover | Internal mechanism completely encased in a metallic cover |
| Materials | Selected alloys used for the machine and the razor |
| Accessories supplied | Razor, 120 mm, with back and handle (one); object holders (set of three); honing plate (one); oil can (one) |
| Packing | Cardboard box with thermocol packing |
| Quality check | Each microtome is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-RMET-2324 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with Other JLab Microtomes?
| Model | Section thickness (as listed) | Mechanism | Accessories listed |
|---|---|---|---|
| This microtome (EL-RMET-2324) | Up to 25 microns in 1-micron steps | Internal mechanism fully encased in a metal cover | 120 mm razor with back and handle, three object holders, honing plate, oil can |
| Rotary Senior Microtome | 1–50 microns in 1-micron steps | Feed mechanism under a hinged cover; safety device | 120 mm razor, three object holders, oil can |
| Digital Microtome | 1–50 microns in 1-micron steps | Cam drive feed with digital scale; slides on ball bearings; heavy cast iron base | Razor, object holders, honing stone, dust cover and a disposable blade holder, among others |
Choose the Erma-type microtome for routine teaching sections where a range up to 25 microns is enough and you want a honing plate in the box to keep the razor sharp. The Rotary Senior Microtome extends the range to 50 microns and lists a safety device, while the Digital Microtome adds a digital scale, ball-bearing slides and a disposable blade holder.
What Is a Rotary Microtome Used For?
A microtome cuts tissue into slices thin enough for light to pass through under a microscope. On a rotary microtome, each turn of the handwheel moves the specimen block past the fixed razor and advances it by the thickness you have set, so a paraffin-embedded block gives a continuous ribbon of serial sections. The ribbon is floated on warm water to flatten it, picked up on glass slides, dried and stained. This makes the instrument a staple of histology and histopathology teaching in medical, veterinary and paramedical (DMLT and BMLT) colleges, and of plant and animal slide-making in botany and zoology departments.
Good sections depend on a sharp edge and a smooth feed. Use the honing plate to restore the razor edge, oil the moving parts with the oil can as part of routine care, and keep the metal cover in place so wax shavings stay out of the mechanism. Handle the razor by its back and handle, and keep fingers clear of the edge when changing blocks.
What to Specify When Ordering
- Quantity — the minimum order is 10 microtomes.
- Spare razors and object holders — available as separate catalogue items for replacements and extra blocks.
- Section preparation equipment — add a tissue flotation bath or paraffin dispenser to the same enquiry for a complete histology bench.
Frequently Asked Questions
What section thickness can this microtome cut?
Uniform sections up to 25 microns, with the thickness set in steps of 1 micron.
Which accessories come with it?
A 120 mm razor with back and handle, a set of three object holders, a honing plate and an oil can. The microtome is packed in a cardboard box with thermocol packing.
What does “Erma type” mean?
It describes the design pattern of the microtome. The instrument is made by JLab in Ambala to that pattern; the name does not imply any connection with the Erma company.
How does it differ from the Rotary Senior Microtome?
This model is listed for sections up to 25 microns, with a fully enclosed mechanism and a honing plate among its accessories. The Rotary Senior Microtome is listed for 1–50 microns, has its feed mechanism under a hinged cover and a safety device, and comes with a razor, three object holders and an oil can.
Can I buy spare razors and object holders?
Yes. JLab lists a microtome razor and a set of three microtome object holders as separate items; give this product code when ordering so the fit can be confirmed.
Who manufactures this microtome?
Jain Laboratory Instruments Pvt Ltd (JLab) builds it at its works in Ambala, Haryana, and quotes for it as the manufacturer.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, an Indian manufacturer of microtomes, histology equipment and other laboratory apparatus, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. This microtome is produced in JLab’s own works, not bought from a trader, so colleges, universities, dealers and importers buy factory-direct, every unit is inspected before dispatch, and spare razors and holders come from the maker. Its tax registration is GSTIN 06AADCJ9848D1ZE, and it is identified internationally by Legal Entity Identifier 549300DTGS77DGYD6N03. JLab exports worldwide and ships to buyers in every region — for example the UAE in the Middle East, Lithuania in Northern Europe, Nigeria in West Africa, Zambia in East Africa and Croatia in Southern Europe. Tender information is on the JLab lab tenders page.
Microtome Accessories and Histology Equipment
- Microtome Razor — a sectioning razor for replacing or backing up the supplied razor.
- Microtome Object Holder — a set of three spare object holders for gripping specimen blocks.
- Tissue Flotation Bath — floats wax sections so they flatten before staining.
- Paraffin Dispenser — a stainless steel dispenser of molten paraffin for embedding tissue blocks.
See the Rotary Microtome Erma Type category or all Microtomes.
Request a Quote
Quotes come direct from the manufacturer. Use the Add To Cart enquiry button, or send the quantity (minimum 10 units), any spare razors or object holders, and your delivery location through the contact page.
