Paraffin Dispenser Manufacturer,Supplier and Exporter in India
Product Code : EL-PD-2325
Jlab Export is a leading Paraffin Dispenser Manufacturer,and suppliers in India

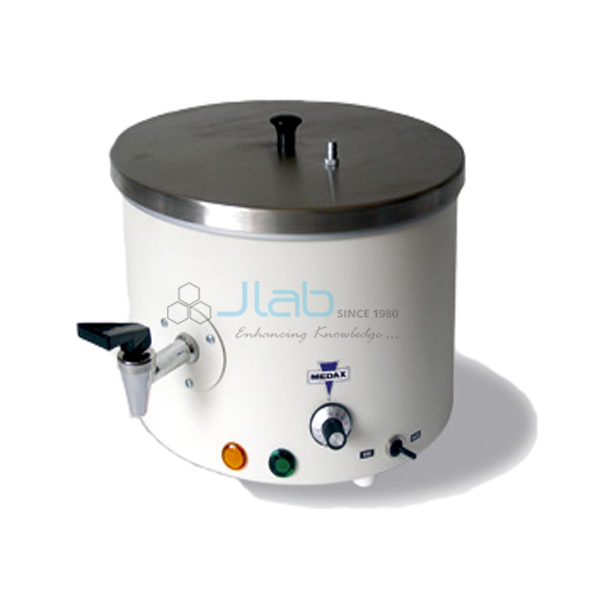

Paraffin Dispenser (code EL-PD-2325) is a single-type embedding bath that keeps paraffin wax molten and ready to dispense while tissue blocks are embedded for microtome sectioning in histology laboratories. Its double-walled stainless steel body is insulated with glass wool, a hydraulic-type thermostat holds the temperature anywhere from ambient to 70 °C, and it comes in 1, 2 or 5 litre capacities. It is made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Type | Embedding bath, single-type paraffin dispenser |
| Construction | Double-walled; inner and outer walls of stainless steel sheet |
| Insulation | Glass wool between the walls |
| Temperature range | Ambient to 70 °C |
| Temperature control | Hydraulic-type thermostat with temperature control knob |
| Fittings | Pilot lamp, temperature control knob, cord and plug |
| Power supply | 220 V AC, 50 Hz, single phase |
| Capacities | 1, 2 or 5 litres |
| Optional | Stainless steel basket |
| Quality check | Each dispenser is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-PD-2325 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with the JLab Paraffin Embedding Bath?
| Model | Construction | Wax holding | Temperature and power (as listed) |
|---|---|---|---|
| This dispenser (EL-PD-2325) | Double-walled stainless steel, glass wool insulated | Single dispenser in 1, 2 or 5 litre capacity; stainless steel basket optional | Ambient to 70 °C, hydraulic-type thermostat; 220 V AC, 50 Hz |
| Paraffin Embedding Bath | Painted mild steel body; mild steel or stainless steel top | Covered wax pots: 4, 6 or 12 cups, or 6, 8 or 12 glass tubes | Ambient to 70 °C, thermostat; 220 V AC, 50 Hz |
Choose the dispenser when you want one insulated stainless steel reservoir of molten wax for filling moulds; choose the embedding bath when specimens need to sit in several separate covered pots or tubes of wax during infiltration.
What Is a Paraffin Dispenser Used For?
Paraffin embedding is the step between tissue processing and sectioning. Once a specimen has been fixed, dehydrated and infiltrated with wax, it is placed in a mould, molten paraffin from the dispenser is run over it, the tissue is oriented, and the mould is cooled until a firm block forms that can be clamped in a rotary microtome. Histology and histopathology teaching labs in medical, veterinary and paramedical colleges, and research labs preparing plant or animal sections, use a dispenser so that clean molten wax is always at hand during an embedding session.
Set the thermostat only a little above the melting point of the paraffin you use, since overheated wax deteriorates, and watch the pilot lamp to see when the heater is working. Hot paraffin is flammable, so keep the dispenser away from open flames, wipe up drips once they have cooled, and switch it off at the end of the day.
What to Specify When Ordering
- Capacity — 1, 2 or 5 litres, depending on how many blocks you embed in a session.
- Stainless steel basket — optional; say whether you want it included.
- Power supply — the listing is for 220 V AC, 50 Hz, single phase; mention your mains supply in the enquiry.
- Quantity — the minimum order is 10 units; add a rotary microtome or flotation bath to complete the histology bench.
Frequently Asked Questions
What capacities is the paraffin dispenser made in?
Three: 1 litre, 2 litre and 5 litre. State the capacity you need when you enquire.
What temperature range does it cover?
From ambient to 70 °C, set with the temperature control knob and held by a hydraulic-type thermostat; a pilot lamp shows when it is heating.
What is it made of?
Both walls of the double-walled body are stainless steel sheet, and the gap between them is filled with glass wool to insulate the wax bath.
Is a basket included?
A stainless steel basket is listed as an optional extra, so add it to your enquiry if you need one.
How does it differ from the paraffin embedding bath?
The dispenser is a single double-walled stainless steel reservoir in 1, 2 or 5 litre sizes. The paraffin embedding bath has a painted mild steel body with several covered wax pots, offered with cups or glass tubes. Both are listed for ambient to 70 °C on 220 V AC.
Who manufactures this paraffin dispenser?
Jain Laboratory Instruments Pvt Ltd (JLab) makes it at its works in Ambala, Haryana, and quotes for it directly.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a manufacturer of histology and general laboratory equipment in India, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. The paraffin dispenser is fabricated at JLab’s own works instead of being sourced from a trader, so laboratories, dealers and importers deal with the maker for quotations, inspection before dispatch and repeat orders. JLab exports worldwide and ships to buyers in every region — for example Turkey in the Middle East, Canada in North America, Congo in Central Africa, Barbados in Central America and the Caribbean and South Korea in East Asia. Tender buyers can refer to the JLab lab tenders page.
Related Histology Equipment
- Paraffin Embedding Bath — a thermostat bath with several covered wax pots for infiltration and embedding.
- Automatic Tissue Processor — takes tissue from fixation and dehydration through to paraffin wax saturation before embedding.
- Rotary Microtome Erma Type — an Erma-type rotary microtome that cuts the embedded blocks into thin sections.
- Tissue Flotation Bath — floats the wax sections to flatten them before staining.
See the Paraffin Dispenser category or the full Microtomes range.
Request a Quote
Quotes come direct from the manufacturer. Use the Add To Cart enquiry button, or send the quantity (minimum 10 units), the capacity, whether you need the basket, and your delivery location through the contact page.
