Automatic Tissue Processor Manufacturer,Supplier and Exporter in India
Product Code : EL-ATP-2326
Jlab Export is a leading Automatic Tissue Processor Manufacturer,and suppliers in India

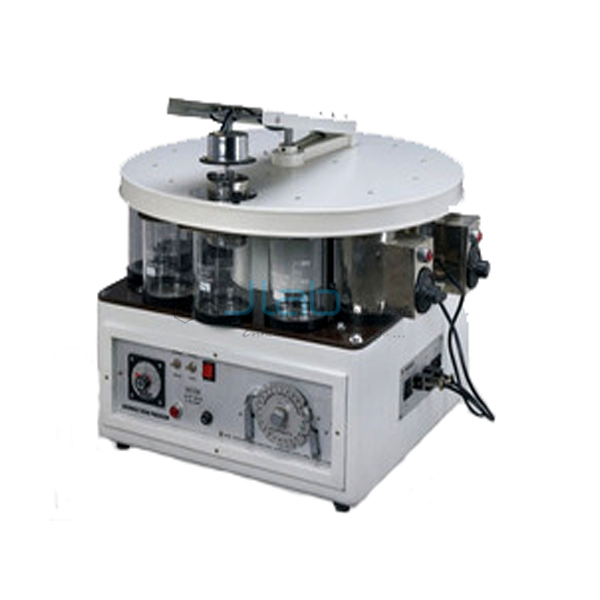

Automatic Tissue Processor (code EL-ATP-2326) is a compact, disc-timed processor that takes tissue specimens automatically from fixation and dehydration through to paraffin wax saturation in histology and histopathology laboratories. A rotating stainless steel tissue basket keeps the specimens agitated, ten 1-litre glass beakers and two thermostat-controlled stainless steel wax baths hold the reagents and wax, and a lockable glass door lets staff watch the run. It is made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Function | Automatic tissue processing from fixation and dehydration to paraffin wax saturation |
| Agitation | Continuous, by a rotating stainless steel tissue basket |
| Wax baths | Two stainless steel wax baths, each fitted with a thermostat |
| Door | Glass door with locking arrangement, for easy viewing and protection from tampering |
| Timing | Calibrated timing discs (listed as 5–24 hrs), programmed with the one-notch pliers |
| Power supply | 220 V AC, 50 Hz, single phase |
| Accessories listed | Stainless steel basket rotor (1); tissue basket; stainless steel tissue capsules (24); 1-litre glass beakers (10); beaker covers (11); stainless steel wax baths with thermostat (2); calibrated timing discs; one-notch pliers for programming the discs |
| Quality check | Each processor is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-ATP-2326 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with the Other JLab Tissue Processor?
| Model | Programming | Stations and wax baths (as listed) | Other listed details |
|---|---|---|---|
| This processor (EL-ATP-2326) | Calibrated timing discs (5–24 hrs as listed), set with one-notch pliers | Ten 1-litre glass beakers with 11 covers; two stainless steel wax baths, each with a thermostat | Rotating stainless steel basket; lockable glass door; 24 stainless steel tissue capsules |
| Automatic Tissue Processor (12-stage model) | Programmable 12-stage timing sequence with a 24-hour calibrated disc; 24-hour delay action | Ten glass beakers; stations of 1 or 2 litres; two wax baths, thermostatically controlled | Automatic agitation; safety device for tissue protection; 24 tissue capsules; six calibrated discs |
Choose this processor when you want beaker covers and a lockable glass door listed with the unit; the 12-stage model lists a 24-hour delay start and a choice of 1 or 2 litre stations.
What Is an Automatic Tissue Processor Used For?
Before tissue can be cut on a microtome it must be fixed, have its water removed and be filled with paraffin wax. Done by hand, that means moving specimens through a long series of fixative, graded alcohols, a clearing agent and molten wax on a strict timetable. This processor does the moving for you: specimens sit in the stainless steel tissue capsules inside the basket, the basket travels through the ten beakers and then the two heated wax baths, and continuous rotation helps the reagents penetrate evenly. The schedule is set on a calibrated timing disc, in which notches cut with the supplied pliers mark when the basket moves on to the next station. It suits histopathology and histology labs in medical, veterinary and paramedical colleges and research institutes.
Processing reagents such as alcohols and clearing agents give off flammable or irritating vapours, so run the processor in a well-ventilated room, keep the beakers covered with the lids provided, and change reagents on a regular schedule. Keep the glass door locked during a run so the cycle cannot be disturbed.
What to Specify When Ordering
- Quantity — the minimum order is 10 units.
- Spare consumables — extra tissue capsules, timing discs or glass beakers for a busy lab.
- Power supply — the unit is listed for 220 V AC, 50 Hz, single phase; state your mains supply.
- Embedding and sectioning equipment — add a paraffin dispenser, rotary microtome and flotation bath to the same enquiry.
Frequently Asked Questions
What does an automatic tissue processor do?
It carries tissue specimens automatically through fixation, dehydration and paraffin wax saturation, so they are ready for embedding and microtome sectioning without being moved by hand.
How is the processing schedule set?
With calibrated timing discs, listed as 5–24 hrs. Notches cut in the disc with the one-notch pliers supplied decide when the basket moves to the next beaker or wax bath.
How many beakers and wax baths does it have?
Ten 1-litre glass beakers with 11 beaker covers, and two stainless steel wax baths, each fitted with its own thermostat.
How many specimens can go in at once?
The accessory list includes 24 stainless steel tissue capsules, which are held in the rotating tissue basket during a run.
How is it different from JLab’s 12-stage tissue processor?
This model is listed with notched timing discs, a lockable glass door and beaker covers. The 12-stage model lists a programmable 12-stage sequence with a 24-hour disc, a 24-hour delay action and 1 or 2 litre stations.
Who manufactures this tissue processor?
JLab (Jain Laboratory Instruments Pvt Ltd) builds it at its works in Ambala, Haryana, and quotes for it directly.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, an Indian manufacturer of histology and pathology-lab equipment alongside its wider range of laboratory apparatus, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. This tissue processor is built in JLab’s own works rather than bought from a trader, so colleges, institutes, dealers and importers order directly from the maker, with each unit inspected before it leaves and spares such as capsules and discs available from the same source. JLab exports worldwide and ships to buyers in every region — for example Angola in Central Africa, Mexico in North America, Madagascar in East Africa, Ivory Coast in West Africa and Vanuatu in Oceania. See the JLab lab tenders page for tender information.
Embedding and Sectioning Equipment
- Paraffin Dispenser — a double-walled stainless steel dispenser of molten wax for embedding processed tissue.
- Paraffin Embedding Bath — a thermostat bath with several covered wax pots for infiltration and embedding.
- Rotary Microtome Erma Type — a rotary microtome for cutting the embedded blocks into thin sections.
- Tissue Flotation Bath — floats wax sections to flatten them before staining.
See the Automatic Tissue Processor category or all Microtomes.
Request a Quote
Quotes come direct from the manufacturer. Use the Add To Cart enquiry button, or send the quantity (minimum 10 units), any spare capsules, discs or beakers, and your delivery location through the contact page.
Last updated: 9 October 2026
