Speed Regulated Polishing Machine Manufacturer,Supplier and Exporter in India
Product Code : EL-SRPMFML-7366
Jlab Export is a leading Speed Regulated Polishing Machine Manufacturer,and suppliers in India

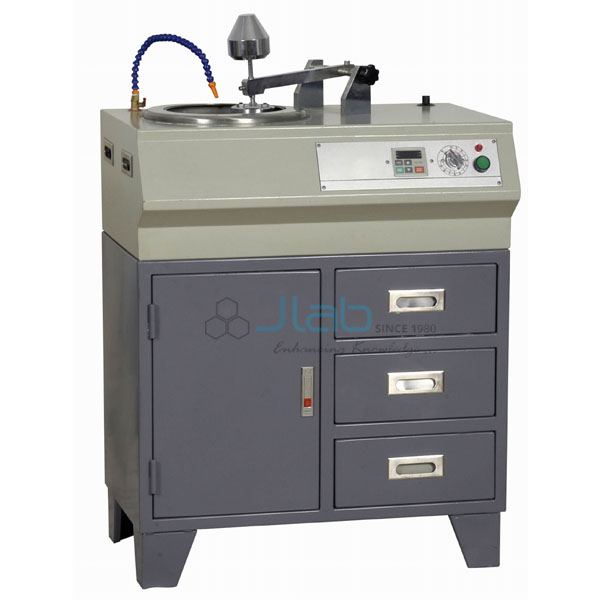

Speed Regulated Polishing Machine (code EL-SRPMFML-7366) is a metallographic grinding and polishing machine whose 230 mm disc speed, from 100 to 1000 rpm, is regulated by a microcomputer chip and shown on a digital tube display. Its elastic grinding device works with automatic or manual timing, and the spindle is leak-proof. JLab produces the machine at Ambala in India.
Specifications
| Parameter | Detail |
|---|---|
| Disc diameter | 230 mm (polishing and grinding) |
| Abrasive paper diameter | 230 mm |
| Disc speed | 100–1000 rpm stepless, or four speeds: 250, 500, 750 and 1000 rpm |
| Speed regulation | Microcomputer chip with digital tube display |
| Timing | Automatic or manual |
| Disc motor | DC brushless motor, two-phase 220 V, 400 W |
| Grinding head | 20–120 rpm stepless; DC brushless deceleration motor, two-phase 220 V, 400 W |
| Cylinder pressure | Adjustable (0.2–0.3 MPa suggested) |
| Spindle | Leak-proof |
| Net weight and size | 50 kg; 420 x 623 x 645 mm |
| Quality check | Each polishing machine is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Product code | EL-SRPMFML-7366 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
From Pre-Grinding to Polishing
A metallographic sample passes through pre-grinding and pre-polishing before the final stages: 230 mm abrasive papers in successively finer grits flatten the face, and a polishing cloth with fine alumina or diamond abrasive then brings it to a scratch-free mirror finish, ready for etching. Meanwhile the grinding head turns at 20–120 rpm under adjustable cylinder pressure, with 0.2–0.3 MPa as the recommended setting.
Choosing Between This and the Polishing Machine
The Polishing Machine is specified with the same 230 mm disc, 400 W motors and grinding-head speeds. On this model, speed regulation runs through a microcomputer chip with a digital tube display, and each preparation step can be timed automatically or manually.
Related Metallographic Equipment
- Polishing Machine — same 230 mm disc and grinding-head specification.
- Semi Automatic Polishing Machine — pneumatic multi-mould loading with LC display and digital timer.
- Automatic Mounting Press — microcomputer-controlled heated mounting with touch-screen settings.
- Polishing Alumina — polishing powder whose applications include metallographic sections.
Browse the Speed Regulated Polishing Machine For Metallurgical Lab category, or step up to Metallurgical Equipment.
Request a Quote
Click Add To Cart to request a quotation, or send the quantity and delivery details through our contact page and we will reply with terms for this machine.
