Thistle Funnel Manufacturer,Supplier and Exporter in India
Product Code : EL-CLE-11091
Jlab Export is a leading Thistle Funnel Manufacturer,and suppliers in India

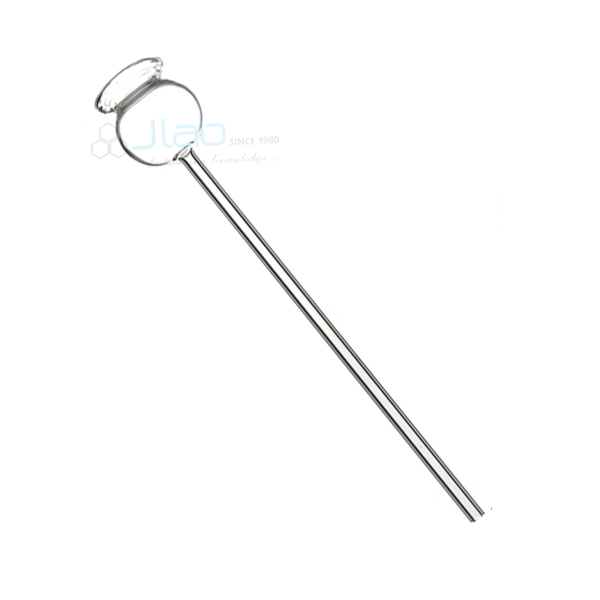

Thistle Funnel (code EL-CLE-11091) is a long-stemmed funnel of heat-proof borosilicate glass, model JL345, 350 mm long overall, with a thistle-shaped head 38 mm across and a 7 mm stem. It lets liquid be poured into a closed flask through its stopper. JLab makes it in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Model | JL345 |
| Material | Heat-proof borosilicate glass, clear |
| Outer diameter, top | 38 mm |
| Outer diameter, stem | 7 mm |
| Total length | 350 mm |
| Resistance | Heat and chemical resistant |
| Quality check | Each funnel is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 50 units |
| Dispatch time | Usually 3–5 working days |
| Product code | EL-CLE-11091 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How It Works in a Gas Preparation
The stem goes through one hole of a two-hole stopper in the generating flask and a delivery tube through the other. Acid poured into the head runs down onto the solid, such as zinc for hydrogen or marble chips for carbon dioxide. The end of the stem must sit below the liquid in the flask: the liquid seals it, so the gas leaves through the delivery tube instead of back up the funnel.
The funnel also works as a warning gauge. If the delivery tube blocks, pressure pushes liquid up the stem, a sign to stop adding acid and clear the tube.
Fitting the Stem Safely
Wet the 7 mm stem with water or glycerol, hold it close to the stopper with a cloth around your hand, and twist it in gently rather than pushing. Forcing a glass stem into rubber is a common cause of cut hands at the bench.
Gas Preparation Apparatus
- Rubber Corks (with Two Holes) — take the funnel stem and a delivery tube side by side.
- Delivery Tube Glass — carries the gas from the flask to the jar.
- Gas Jar with Cover — collects the gas the set-up produces.
- Flask, Flat Bottom — a generating flask the funnel can feed.
Find the other pieces for gas work in Chemistry Lab Equipment, part of the chemistry equipment range.
Request a Quote
Order through Add To Cart, or use the contact page to send the number of funnels, any stoppers or delivery tubes needed and the delivery location.
