0 - 30V / 10A Power Supply Manufacturer,Supplier and Exporter in India
Product Code : EL-DPS-10409
Jlab Export is a leading 0 - 30V / 10A Power Supply Manufacturer,and suppliers in India
0 - 30V / 10A Power Supply (code EL-DPS-10409) is a floating DC supply that works as a constant voltage or constant current source, with its output adjustable from 0 to 30 V on coarse and fine controls and its current limit set anywhere from 100 mA to 10 A. Separate displays read voltage (3 digits) and current (3½ digits). JLab makes this 10 A supply in Ambala, India, for laboratory, industrial and field testing.
Specifications
| Parameter | Detail |
|---|---|
| Output | 0–30 V DC at up to 10 A, floating |
| Voltage control | Continuously adjustable, coarse and fine |
| Current limit | Adjustable, 100 mA to 10 A |
| Operating modes | Constant voltage (CV) and constant current (CC) |
| Displays | 3-digit for voltage; 3½-digit for current |
| Indicators | Flashing OR LED for overload; LED for an exceeded maximum setting or overheating |
| Ripple and noise | Low residual ripple and noise |
| Protection | Protective circuits |
| Quality check | Each power supply is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-DPS-10409 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How CV and CC Operation Work
In constant voltage mode the supply holds the set voltage while the load draws less than the current limit. If the load tries to draw more, the supply moves into constant current mode and holds the current at the limit, letting the voltage fall; the flashing OR LED shows that this has happened. Setting the limit a little above what a circuit should draw protects it if a fault appears.
Floating Output and Warning Lights
The output is floating, meaning neither terminal is tied to earth, so either terminal can be connected to the reference point of the circuit under test. A second LED lights when the maximum setting is crossed or the supply overheats, and protective circuits guard the supply itself. Low residual ripple and noise suit both analog and digital circuits.
Other DC Supplies in This Range
- 0 - 30V / 5A DC Power Supply — 5 A version with a 20 mA lower limit and an overload beep.
- 0 - 30V / 3A Dual Power Supply — two floating 0–30 V, 3 A outputs on a pre-regulator design.
- Dual Tracking Power Supply — 0 to ±30 V tracking outputs at 2 A, plus 5 V, 2 A.

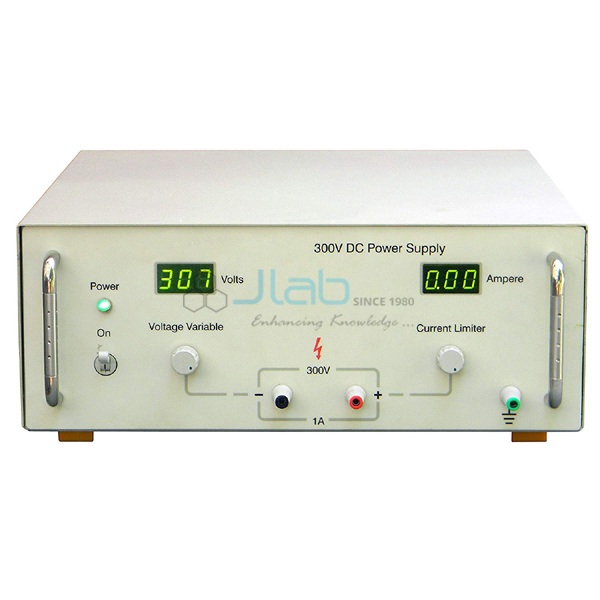

- 300V DC Power Supply — 10–300 V, 1 A supply set with a ten-turn potentiometer.
The full set of these supplies is in DC Power Supplies, part of Test and Measurement Equipment.
Request a Quote
For a quotation, click Add To Cart or write through the contact page, giving the quantity and the delivery address.
