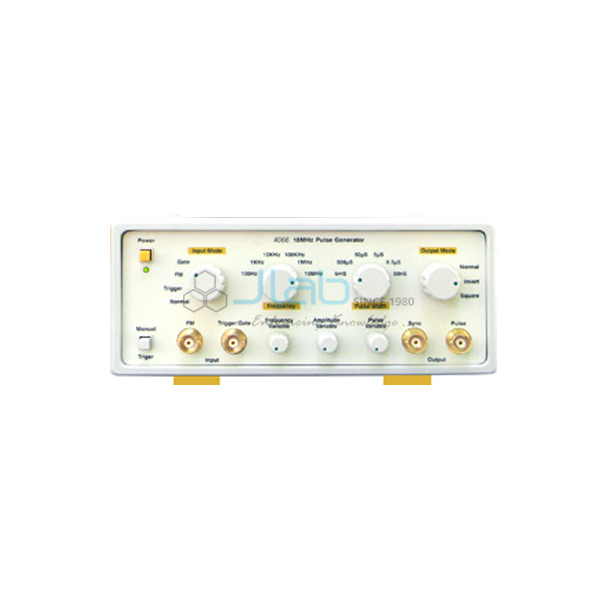

10MHz Pulse Generator (code EL-FG-10386) is a lightweight source of fast-edged pulses at repetition rates up to 10 MHz, with rise and fall times of 20 ns or less and pulse width set in 6 steps with a variable control. Pulse and sync outputs work together, and the unit accepts manual or external triggering, FM and gating. JLab builds this 10 MHz pulse generator at Ambala in India.
Specifications
| Parameter | Detail |
|---|---|
| Repetition rate | Up to 10 MHz |
| Pulse width | 6 steps with variable adjustment |
| Rise and fall time | ≤ 20 ns |
| Output modes | Normal, Invert, Square |
| Input modes | Normal, Trigger, FM, Gate |
| Triggering | Manual or external |
| Outputs | Pulse and sync, usable at the same time |
| Build | Light weight |
| Quality check | Each pulse generator is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-FG-10386 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Width, Repetition Rate and Edges
The repetition rate fixes the period, the time from one pulse to the next, and the width control sets how long each pulse stays high within that period: pick one of the 6 width steps, then trim it with the variable control. The width has to stay shorter than the period. Edges of 20 ns or less keep the pulse close to square as long as its width is well above the edge time, which is what logic circuits, counters and timing stages need to see.
What the Output and Input Modes Do
Normal gives the pulse as set, Invert turns it upside down for circuits that respond to a falling level, and Square gives a square wave in place of the pulse. On the input side, Normal lets the generator run on its own, Trigger fires pulses from the manual button or an external trigger, FM lets an outside signal shift the repetition rate, and Gate passes pulses only while a gating signal is present. The sync output gives a timing pulse with each main pulse, handy for locking an oscilloscope trace.
Other Pulse Sources, a Counter and a Scope
- Pulse Generator — rectangular pulses with variable rate and width and a TTL-level setting.
- 3MHz Function-Pulse Generators with 40MHz Frequency Counter — pulse output with variable duty cycle plus PWM.
- 1000MHz Frequency Counter — measures the frequency and period of a pulse train.
- 50MHz Digital Oscilloscope — four-channel scope for viewing pulse shape and timing.
Other generators are listed in Function Generators, one section of Test and Measurement Equipment.
