Advanced Inverted Tissue Culture Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-959
Jlab Export is a leading Advanced Inverted Tissue Culture Microscope Manufacturer,and suppliers in India
Advanced Inverted Tissue Culture Microscope (code EL-M-959) is an inverted microscope for living cell cultures, fitted with long working distance (LWD) plan achromatic objectives, a 25/0.40 phase contrast attachment and a magnification range of 100X–640X. A reticule eyepiece and a 35 mm photo unit complete the outfit. JLab manufactures this advanced inverted model in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Magnification | 100X–640X |
| Wide-field eyepieces | WF10X and WF16X |
| Reticule eyepiece | 10X, 0.1 mm per division |
| Objectives | LWD plan achromatic 10/0.25, 25/0.40 and 40/0.60 |
| Phase contrast | LWD plan phase contrast attachment, Ph 25/0.40 |

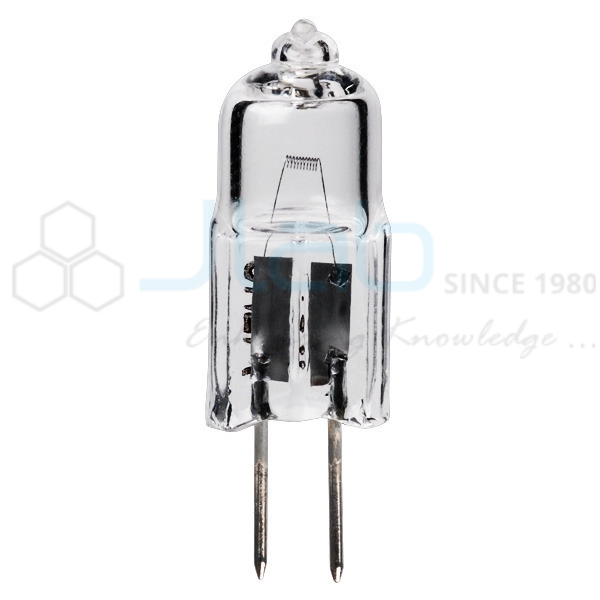

| Illumination | 6 V, 20 W halogen lamp with adjustable brightness |
| Photography | 35 mm photo unit with 5X photo eyepiece |
| Quality check | Each microscope is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 5 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-M-959 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Why the Objectives Look Up From Below
On an inverted stand the objectives sit under the stage, so cells growing on the floor of a flask or dish are focused through the vessel base without opening it. The long working distance leaves room for the thickness of that base, and the plan correction keeps the whole field flat to its edge. The Ph 25/0.40 phase contrast attachment turns the small optical path differences inside unstained living cells into differences of brightness, so cell outlines show without any stain.
Eyepieces, Measuring and Recording
The WF10X eyepieces give 100X, 250X and 400X with the three objectives, and the WF16X eyepieces take this to 160X, 400X and 640X. The 10X reticule eyepiece carries a scale of 0.1 mm per division for measuring cells once checked against a stage micrometer, and the 35 mm photo unit with its 5X photo eyepiece records the view.
Related Inverted Microscopes
- Inverted Tissue Culture Microscopes 1 — inverted model with LWD plan achromats and a 25x positive phase objective.
- Inverted Tissue Culture Microscope — inverted model with an oversize plain stage and extension plates.
- Trinocular Inverted Tissue Culture Microscope — trinocular inverted model with a coaxial mechanical stage.
- Stage Micrometer — glass-disc scale slide used for routine calibration of light microscopes.
More inverted, compound and stereo instruments sit under Microscope, a section of Microscope Lab Equipment.
Request a Quote
Order through Add To Cart, or use the contact page to give the number of microscopes and the city and country for delivery.
