Discharge Through Venturimeter and Orificemeter

Description:-

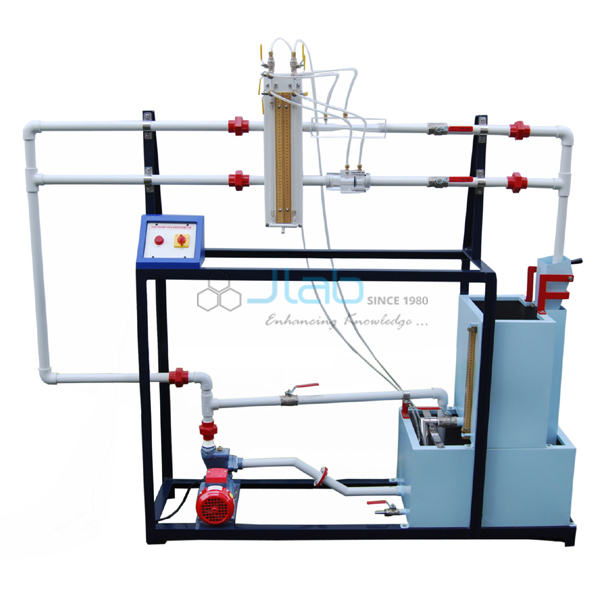

The apparatus consists of two pipelines emerging out from a common manifold.

The pressure tapings from the Venturimeter and orifice meter are taken to the differential manometer to measure pressure difference.

The flow can also be regulated by these valves.

Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc.

One pipeline contains a Venturimeter and other contains an Orifice.

The Venturi meter and Orificemeter are connected in parallel and any one of them can be put in operation by operating valves provided at the downstream.

Flow control valve and by-pass valve are fitted in the water line to conduct the experiment on different flow rates.

The flow rate of water is measured with the help of measuring tank and stopwatch.

Experimentation:-

To determine the coefficient of discharge through Venturimeter and Orifice meter.

To demonstrate the use of Venturimeter & Orificemeter as flow meters.

Utilities Required:-

Electricity supply: Single Phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth connection.

Floor Drain.

Earth voltage should be less than 5 volts.

Water Supply (Initial Fill).

Floor Area Required: 1.5 x 0.75 m.
