Bunsen Burner Manufacturer,Supplier and Exporter in India
Product Code : EL-CL-11534
Jlab Export is a leading Bunsen Burner Manufacturer,and suppliers in India
Bunsen Burner (code EL-CL-11534) is a gas burner, model JL 177/24, that gives a single open flame for heating, sterilisation and combustion work. Its nickel-plated tube is 12 mm in diameter, with an air regulator and a riffled connector, and it stands on a painted cast iron base. This model, without a stopcock, is made by JLab in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Model no. | JL 177/24 |
| Burner tube | Nickel plated, 12 mm diameter |
| Air control | Air regulator; only the air supply port adjusts |
| Gas connection | Riffled connector |
| Base | Painted cast iron |
| Stopcock | None |
| Quality check | Each burner is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 4–6 working days |
| Product code | EL-CL-11534 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Setting Up at the Bench
Push the gas tubing well over the riffled connector so that its ridges hold it, and stand the burner on a heat-resistant mat clear of papers and of the tubing itself. Close the air port, hold a lit spark lighter or match at the top of the tube, and only then open the bench gas tap. With no stopcock on the burner, the gas is set at the tap and the regulator controls only the air.
Using the Flame for Heating and Sterilising
For heating, open the air regulator until the flame turns blue with a clear inner cone; the hottest region lies just above the tip of that cone. A wire loop or needle is sterilised by holding it there until it glows red. Beakers and flasks are heated on a tripod and wire gauze rather than in the open flame.
Other Items for the Heating Bench
- Rubber Tubing — links the riffled connector to the bench gas tap.

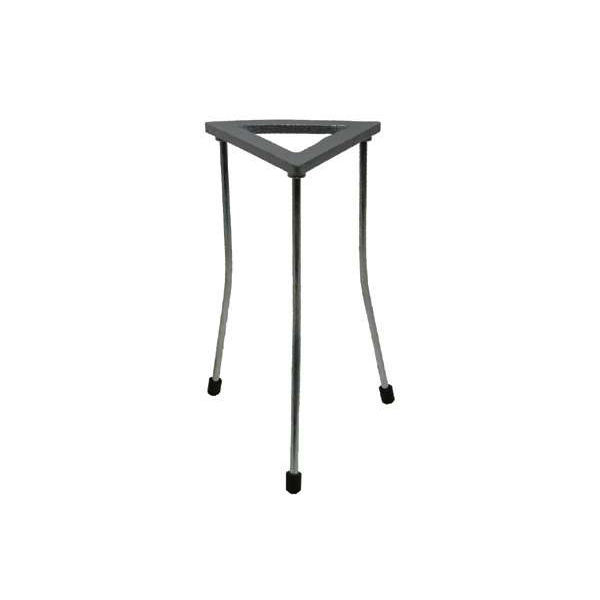

- Tripod Stand — holds a beaker or flask above the burner.
- Wire Gauze — square gauze with a ceramic centre that spreads the flame.
- Test Tube Holder — wooden holder that keeps fingers away from a heated tube.
Burners, stands and glassware for school chemistry are collected in Chemistry Lab under Chemistry Lab Equipment.
Request a Quote
Send the number of burners and the delivery location with Add To Cart, or use the contact page to have the burner quoted with tubing and tripods.
