Electromatic O.T. Table Manufacturer,Supplier and Exporter in India

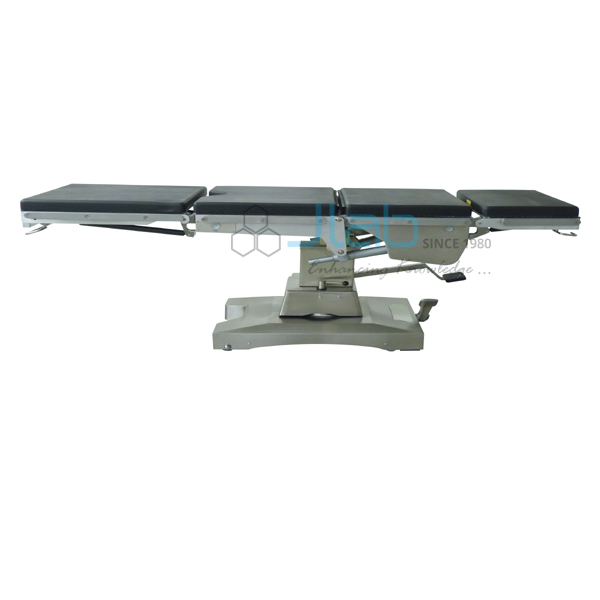

Electromatic  O.T. Table

Product Code : JL-OTF-2029
Jlab Export is a leading Electromatic O.T. Table Manufacturer,and suppliers in India, Electromatic O.T. Table Manufacturer,and suppliers in South Africa.Electromatic O.T. Table Suppliers in Mozambique,Electromatic O.T. Table A quality product from Jlab ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

Electromatic  O.T. Table

It is equipped with imported electric actuators for smooth & effortless working of the table.

It ensures the actuators working in a constant speed without any noise & is designed to run even at low voltage to carry on the surgery.

Key Structure:-

The table has been made from acid proof, stainless steel (the face of the table is easy to clean and immune to disinfection agents)

Strong & rust free base of stainless steel is provided to make the working conditions pleasant for the doctors & nurses.

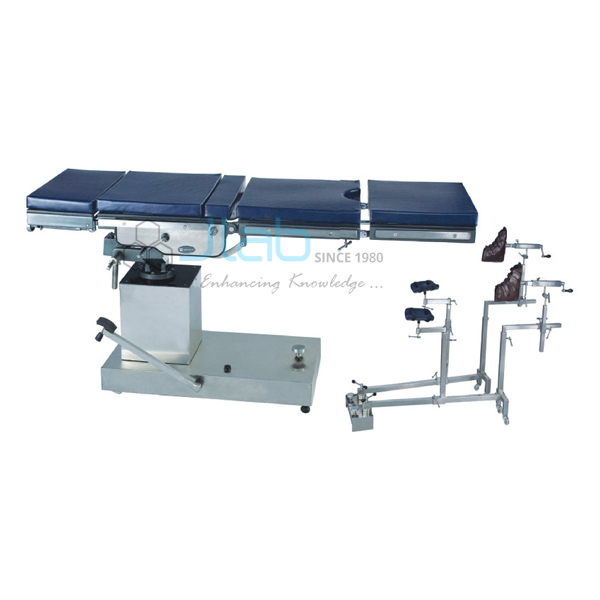

Orthopedic attachment (hips and legs support) including the patient's pelvis support and legs support enables the limbs strain performing.

Design of the Orthopedic attachment & eccentric column provides monitoring of the limbs with the C-ARM during the operation.

The various positions such as Up-Down movements, Trendelenburg Reverse Trendelenburg.

Lateral Tilts, Flex- Reflex, Chair Position as realized by remote control.

Leg section & head section are interchangeable.

Technical Constraints:-

Top Dimension L 1930 XW 553 mm
Height Adjustment 762 mm -1012 mm
Trandelenburg / Reverse 30° / 25°
Lateral Tilt 20° / 20°
Kidney Elevator 150 mm
Back Rest (up / Down) 80° / 25°
Leg Rest (up / Down) 15° / 90°
Head Rest (up / Down) 20° / 60°
Power Supply 24v Dc
Battery Backup (Optional) 2-3 Hours
