Electronic Timer with Photogates Manufacturer,Supplier and Exporter in India
Product Code : EL-PL-13605
Jlab Export is a leading Electronic Timer with Photogates Manufacturer,and suppliers in India

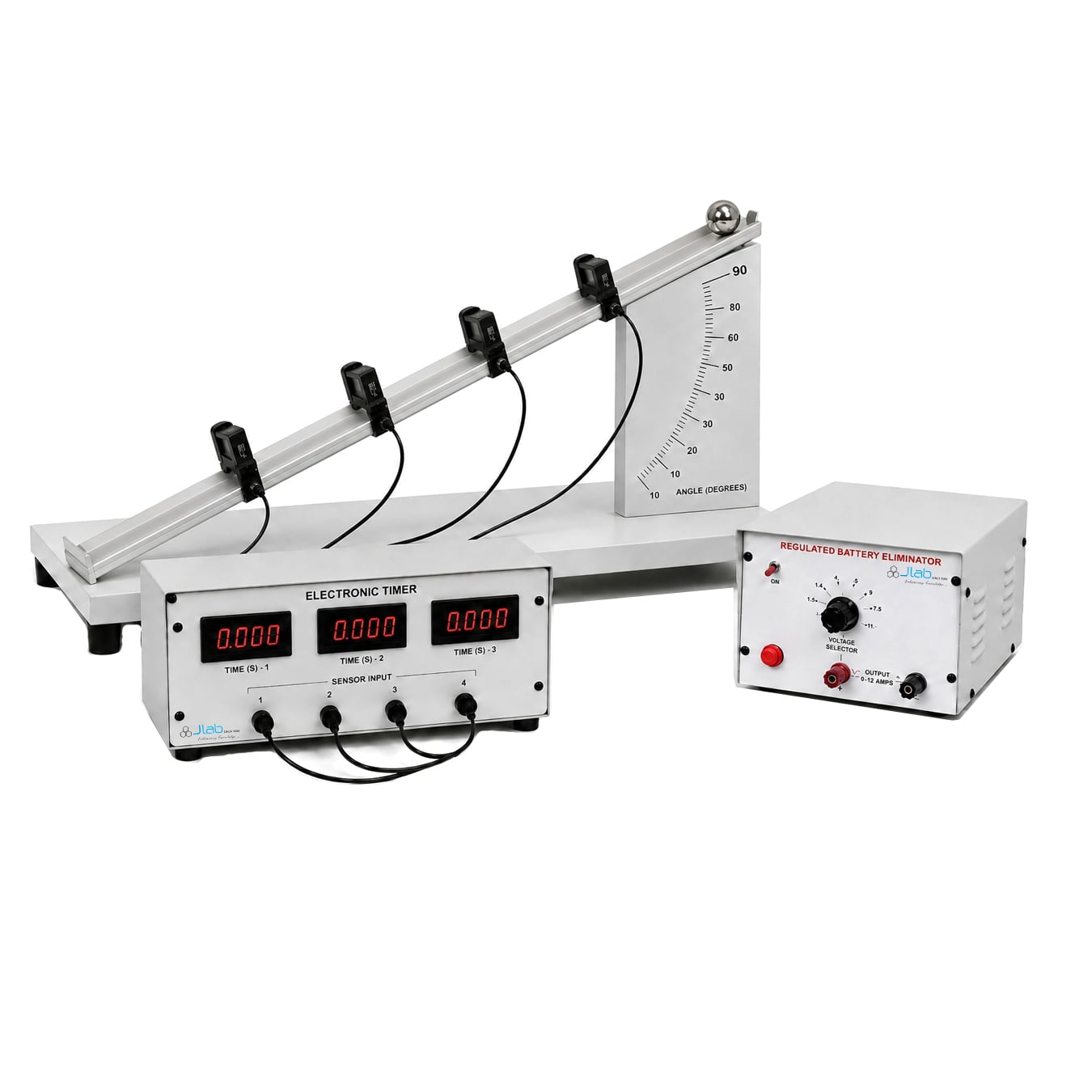

Electronic Timer with Photogates (code EL-PL-13605) is a motion apparatus for timing a ball on an inclined plane. A track assembly 480 mm high and 30 mm in diameter carries four optical sensors, and the electronic timer shows the ball’s passage time over three intervals and keeps the data. JLab manufactures the timer, track and base as one set in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Track assembly | 480 mm high, 30 mm diameter |
| Photogates | 4 optical sensors |
| Timer | Electronic, with data storage |
| Display | Ball passage time at 3 intervals |
| Base | Stable, with graduated inclination angle |
| Included | One ball, power supply and experiment guide |
| Quality check | Each timer set is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 5 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-PL-13605 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Reading the Three Interval Times
Four photogates split the track into three sections, and the display gives the time the ball takes to cross each one. Set the angle on the graduated base, let the ball go at the top and compare the times: the ball gathers speed down the slope, so a later section of the same length is crossed in less time. Dividing each section length by its time gives an average speed, and the rise in speed from one section to the next shows the acceleration. A repeat at a steeper setting of the base shows the acceleration growing with the angle.
Related Motion Apparatus
- Gravity Laboratory Set — free-fall rod, scale and steel ball with a photogate timer.
- Inclined Plane — hinged metal plane with angle scales, pulley and mass pan.
- Timer with Two Photogates — infrared photogate timer that bolts to a roller track.
- Dynamics Car and Inclined Track Set — aluminium track with a ball-bearing car, bumpers and inclinometer.
More timing and mechanics equipment is grouped in Physics Lab.
Request a Quote
Send an enquiry by Add To Cart or the contact page with the number of photogate timers needed and the delivery address, and we will reply with a quotation.
