Function/Arbitrary Waveform Generators Manufacturer,Supplier and Exporter in India
Product Code : EL-AWG-10398
Jlab Export is a leading Function/Arbitrary Waveform Generators Manufacturer,and suppliers in India

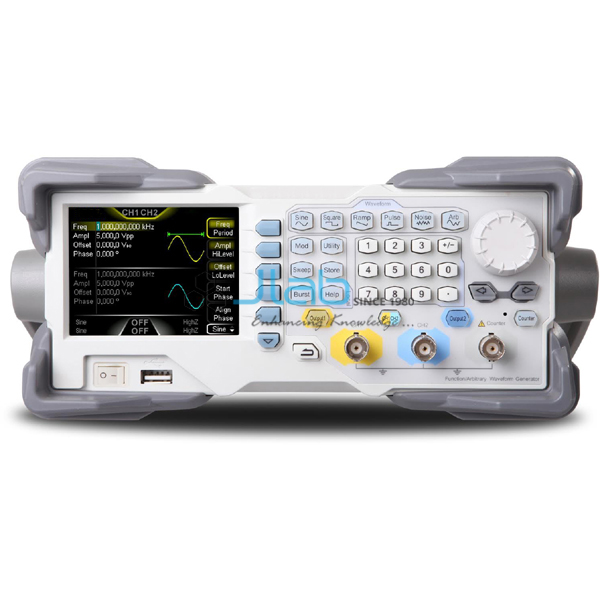

Function/Arbitrary Waveform Generators (code EL-AWG-10398) are DDS signal generators offered in three models with maximum output frequencies of 60 MHz, 100 MHz and 120 MHz, all sampling at 300 MSa/s with 14-bit vertical resolution and 1M points of memory depth. An optional digital logic module adds up to 16 digital channels to the analog output. JLab produces all three models of this generator in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Maximum output frequency | 60 MHz, 100 MHz or 120 MHz (three models) |
| Sample rate | 300 MSa/s |
| Vertical resolution | 14 bits |
| Memory depth | 1M points |
| Standard waveforms | Sine, square, ramp, pulse, noise, exponential rise, exponential fall, sin(x)/x, cardiac, DC |
| Modulation and modes | AM, FM, PM, FSK, PWM, sweep, burst |
| Display | 4.0-inch QVGA colour LCD |
| Interfaces | USB Device, USB Host, RS-232, GPIB, LAN (10/100M) |
| Signal inputs and outputs | Waveform output, digital sync output, external modulation source, 10 MHz clock reference, external trigger, 10 MHz internal clock output |
| Optional module | Digital logic module: 1 analog plus up to 16 digital channels |
| Quality check | Each waveform generator is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-AWG-10398 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Mixed Signals From the Digital Logic Module
With the optional digital logic module fitted, the generator produces true mixed signals: one analog channel plus up to 16 digital channels of stimulus. A single instrument can then drive both the analog input and the digital lines of a circuit under test. Arbitrary waveforms defined by the user come from the same DDS core, which keeps distortion and noise low.
Waveform Storage, USB and LAN Access
Ten standard waveforms run from sine and square to exponential rise and fall, sin(x)/x and a cardiac shape. The generator can also rebuild a signal from a waveform stored on a digital oscilloscope, so a captured signal can be played back. Its USB Host port takes a USB flash drive or USB printer and handles system upgrades, while the 10/100M LAN interface gives remote access and control; RS-232 and GPIB are fitted as well.
Other DDS Generators and an Oscilloscope
- Arbitrary Waveform Generators — 1 GSa/s models up to 350 MHz with a frequency hopping option.

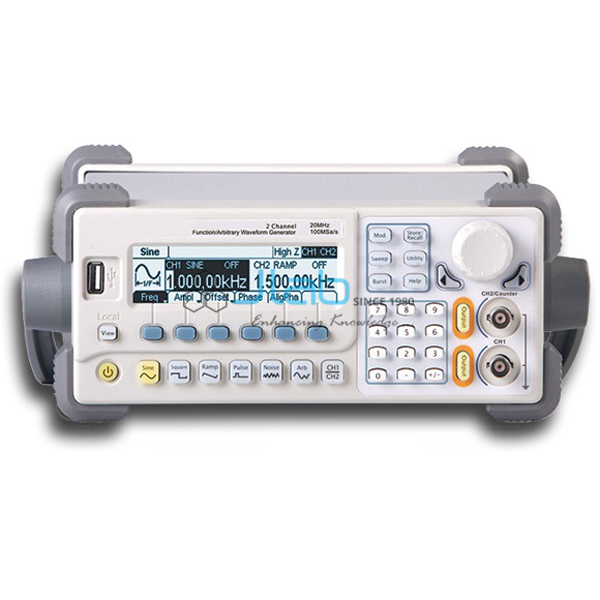

- Dual-Channel Function/Arbitrary Waveform Generators — two-channel DDS generators at 100 MSa/s and 14 bits.
- 50MHz Digital Oscilloscope — four-channel, 1 GSa/s scope with internal and external data storage.
Compare these models with the rest of Arbitrary Waveform Generator, part of Test and Measurement Equipment.
Request a Quote
Pick a model through Add To Cart, or use the contact page to state the output frequency (60, 100 or 120 MHz), whether the logic module is needed, the quantity and delivery address.
