Horizontal Gel Electrophoresis System Manufacturer,Supplier and Exporter in India
Product Code : EL-LE-10646
Jlab Export is a leading Horizontal Gel Electrophoresis System Manufacturer,and suppliers in India

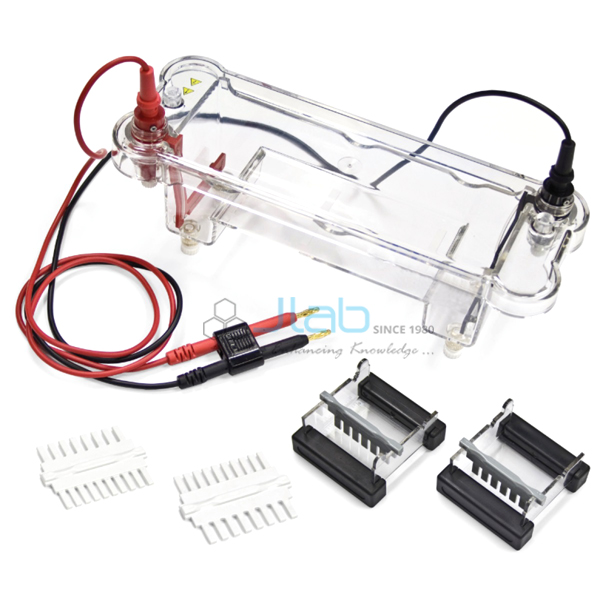

Horizontal Gel Electrophoresis System (code EL-LE-10646) is a submerged (submarine) gel electrophoresis apparatus for DNA and RNA characterisation in biotechnology and molecular biology labs at colleges, universities and research institutes. The jointless unit is moulded in transparent polycarbonate to avoid leakage, takes a UV-transparent gel tray of 12–15 cm, and includes a buffer chamber and a safety lid with cables. It is made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Type | Submerged horizontal gel electrophoresis apparatus |
| Construction | Jointless unit moulded in transparent polycarbonate to avoid leakage; clear body for easy sample visualisation |
| Unit includes | Buffer chamber; safety lid with cables |
| Gel tray | UV-transparent; length 12–15 cm, width 12–15 cm |
| Combs | 10–15 wells and 25–30 wells; all combs 1 mm thick |
| Application | Nucleic acid (DNA and RNA) characterisation |
| Typical setting | Biotechnology and molecular biology work in colleges, universities and research institutes |
| Quality check | Each system is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-LE-10646 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with Other JLab Horizontal Electrophoresis Units?
| Model | Gel tray size | Combs | Construction |
|---|---|---|---|
| This system (EL-LE-10646) | 12–15 cm long and wide, UV-transparent | 10–15 wells and 25–30 wells, 1 mm thick | Jointless moulded polycarbonate; buffer chamber and safety lid with cables |
| Electrophoresis Horizontal | Mini size; casting trays 10 x 7 cm and 7 x 7 cm | 9, 11 and 13 wells | Jointless moulded polycarbonate; buffer chamber and safety lid with cables |
| Electrophoresis Apparatus | Two 7 x 7 cm gel trays run together | Trays have multiple comb slots | Injection-moulded, UV-transparent acrylic; safety stop linked to the cover |
Choose this system when you want a larger gel than the mini units take and the option of combs with 25–30 wells, so that more samples can be loaded on one gel. The Electrophoresis Horizontal is a compact unit, also moulded in jointless polycarbonate, and the Electrophoresis Apparatus runs two small gels at once for class practicals.
What Is the Horizontal Gel Electrophoresis System Used For?
In horizontal (submarine) electrophoresis an agarose gel lies flat under the running buffer. DNA and RNA carry a negative charge, so when a voltage is applied they move through the gel towards the positive electrode, and smaller fragments travel further than larger ones, separating the sample into bands by size. The listing names nucleic acid characterisation in biotechnology and molecular biology at colleges, universities and research institutes; typical examples are checking PCR products, plasmid preparations and restriction digests in practical classes and research projects.
The UV-transparent tray allows a stained gel to be viewed on a UV transilluminator without lifting it out of the tray, and the clear polycarbonate body lets students watch the loading dye move during a run. Combs with 10–15 wells suit runs with fewer samples, while 25–30-well combs let one gel carry many samples and size markers side by side.
What to Specify When Ordering
- The comb well count you need — 10–15 wells, 25–30 wells, or both.
- The gel tray size within the 12–15 cm length and width given for this system.
- The number of systems (minimum order 10 units), plus any power supply or transilluminator to be quoted on the same enquiry as separate items.
Frequently Asked Questions
What is this electrophoresis system used for?
Separating and characterising nucleic acids — DNA and RNA — by size in agarose gels, in biotechnology and molecular biology labs at colleges, universities and research institutes.
What size of gel tray and which combs does it use?
The UV-transparent tray is 12–15 cm in length and width. Combs are listed with 10–15 wells and with 25–30 wells, all 1 mm thick.
What is the tank made of?
Transparent polycarbonate, moulded as one jointless piece to avoid leakage. The clear body makes the samples easy to see during a run.
Why is the gel tray UV-transparent?
So that a stained gel can be examined on a UV transilluminator while it is still in the tray, which saves handling the soft agarose.
How does it differ from the Electrophoresis Horizontal?
Both are jointless polycarbonate units with a buffer chamber and safety lid with cables. The Electrophoresis Horizontal is listed as a mini unit with 10 x 7 cm and 7 x 7 cm trays and 9- to 13-well combs; this system takes a 12–15 cm tray and combs of up to 25–30 wells.
What should an export enquiry include?
The number of systems, the comb and tray options, the destination country and port or city, delivery terms such as FOB or CIF, any packing or labelling requirements, and the tender reference if there is one.
Who manufactures it?
Jain Laboratory Instruments Pvt Ltd (JLab) makes it at its works in Ambala, Haryana, India.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a biotechnology lab equipment manufacturer in India, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. This electrophoresis system is made in JLab’s own works rather than sourced from a trader, so colleges, universities, research institutes, dealers and importers buy it factory-direct; each unit is visually inspected before dispatch, and repeat orders are handled by the manufacturer. JLab exports worldwide and ships to buyers in every region — for example Bangladesh in South Asia, Argentina in South America, Samoa in Oceania, Togo in West Africa and Kazakhstan in Central Asia. For tender purchases, see the JLab lab tenders page.
Electrophoresis Units and Gel Equipment
- Electrophoresis Horizontal — the mini-size submarine unit in jointless polycarbonate.
- Electrophoresis Apparatus — runs two 7 x 7 cm gel trays at the same time.
- Power Supply (electrophoresis, 75 V or 150 V) — an electrophoresis power supply that runs one or two cells.
- U.V. Transilluminator — a light box that shines ultraviolet light through a gel to show stained DNA and RNA bands.
Each is a separate item. See the full Laboratory Equipment section and the Laboratory Supplies range.
Request a Quote
Send your enquiry with the Add To Cart button on this page or through the contact page, listing the number of systems, the comb and tray options, and the delivery destination.
