Ladders Retractable Manufacturer,Supplier and Exporter in India
Product Code : EL-MWLE-9278
Jlab Export is a leading Ladders Retractable Manufacturer,and suppliers in India

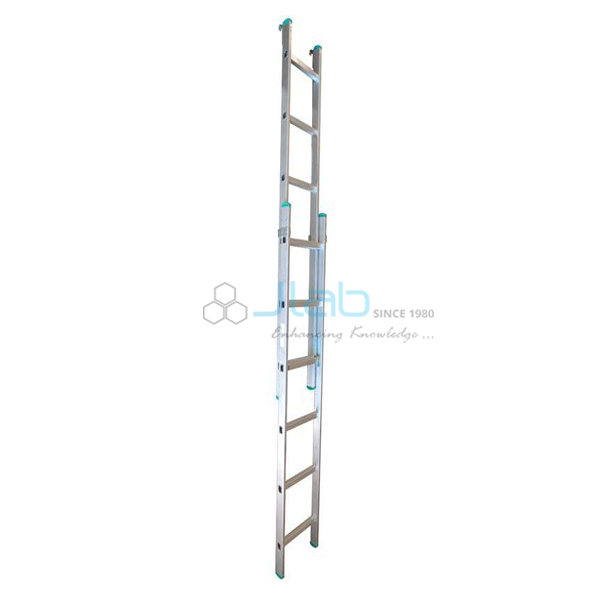

This retractable ladder has two sections that slide along each other. Retracted, it is 4 m long, and with the upper section run out it reaches 7.5 m. Its maximum capacity is 150 kg. The length suits outside walls, roof edges and tall plant rooms that a short ladder cannot reach.
Specifications
| Sections | Two |
| Retracted height | 4 m |
| Maximum extension | 7.5 m |
| Maximum capacity | 150 kg |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Manufacturer | JLab (Jain Laboratory Instruments Pvt Ltd), Ambala, India |
Workshop Practice on Outside Walls
In an air conditioning course, trainees run the pipes from an indoor unit to an outdoor unit on an upper floor. Working from the ladder, they clip Copper Pipe sleeved in Copper Pipe Insulation along the outside wall.
They also drill the wall for the outdoor unit brackets with a Rotary Hammer Drill and fix them with an Anchor Bolt in each hole. Before anyone climbs, the teacher checks the ground at the foot, the angle against the wall and that a second person is holding the base.
Frequently Asked Questions
What does retractable mean on this ladder?
The upper section slides back along the lower one when the ladder is not in use. Retracted, it is 4 m long, and pulled out fully it reaches 7.5 m, so it can be set at lengths between the two.
What load can it carry?
Its maximum capacity is 150 kg, counting the user and everything carried up at one time. Long or heavy items are better raised on a rope than carried up the rungs.
How far should the base be from the wall?
About a quarter of the working height. At a working height of 7 m, set the foot just under 2 m out from the wall. Too steep and the ladder can tip back, too shallow and the foot can slide.
Is it hard to carry and store?
Retracted, it is 4 m long, so it is easier to carry with two people through doors and around corners. Store it flat on wall brackets in a dry place, supported at several points so it does not sag.
Which ladder suits lower jobs?
For walls up to about 3.7 m, the two-section Ladder closes to 1.8 m and is easier to handle indoors. For free-standing work in a room, the Ladders A-Frame is 2000 mm high.
Other Access Equipment for the Workshop
- Scaffold Platform
- Ladder (folding, multi-position)
For a quote, use Add To Cart or send us a message through the contact page.
Last updated: 5 November 2026
