Losses Due To Pipe Fittings Manufacturer,Supplier and Exporter in India
Product Code : EL-LDTPF-7401
Jlab Export is a leading Losses Due To Pipe Fittings Manufacturer,and suppliers in India

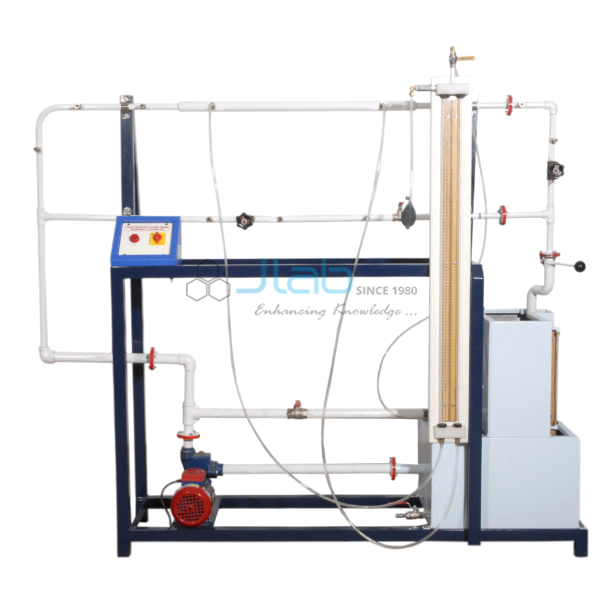

Losses Due To Pipe Fittings (code EL-LDTPF-7401) is a self-contained water circuit for measuring the head lost in six pipe fittings: a ½-inch bend and elbow, a sudden expansion and sudden contraction between 15 mm and 25 mm, a ball valve and a gate valve. A differential manometer reads the loss across each fitting. JLab manufactures this fittings-loss bench in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Fittings tested | ½-inch bend, ½-inch elbow, ball valve, gate valve |
| Sudden expansion and contraction | Between 15 mm and 25 mm |
| Pressure measurement | Differential manometer; tappings at the inlet and outlet of each fitting |
| Flow control | Flow control valve and by-pass valve |
| Flow measurement | Measuring tank and stopwatch |
| Water circuit | Self-contained, re-circulating, with sump tank and centrifugal pump |
| Experiments | Loss coefficient of each fitting; head loss at various flow rates |
| Quality check | Each pipe fittings bench is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Product code | EL-LDTPF-7401 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Running a Test
The flow control valve sets the flow through the test line while the by-pass valve returns the rest to the sump. Once the manometer leads are free of air bubbles, the manometer is read across each fitting in turn. Timing the rise of a known volume in the measuring tank with the stopwatch gives the discharge Q, and the pipe velocity is v = Q / a for bore area a. The manometer reading is converted to metres of water using the relative density of its gauge fluid, and the run is repeated at several flow rates.
Plotting the Loss Coefficient
Each fitting loses a head of h = k v²/2g. Plotting h against v²/2g for one fitting gives a straight line through the origin, and its slope is the loss coefficient k; this uses every run at once rather than a single reading. At the same flow the elbow, with its sharper turn, separates the flow on its inside corner and sets up swirl, so it shows a larger loss than the bend. Fully open, the ball valve and gate valve leave an almost clear bore and give small k values, which climb steeply as either is partly closed.
Other Pipe Flow Loss Benches
- Study of Pipe Fitting — same fittings, plus a piezometer on the measuring tank and an electronic stop watch.
- Friction in Pipe Lines Apparatus — straight-pipe friction in two pipes of different diameters, used one at a time.
- Losses Due to Friction In Pipe Line — friction factor for pipes of four materials with the same 15 mm bore.
This bench has its own category, Losses Due To Pipe Fittings, inside Fluid Mechanics and Hydraulics Lab Equipment.
Request a Quote
For a quotation, add the bench to Add To Cart or write to us from the contact page with the number of benches and the delivery address.
