Plane Table Manufacturer,Supplier and Exporter in India
Product Code : EL-SE-3400
Jlab Export is a leading Plane Table Manufacturer,and suppliers in India

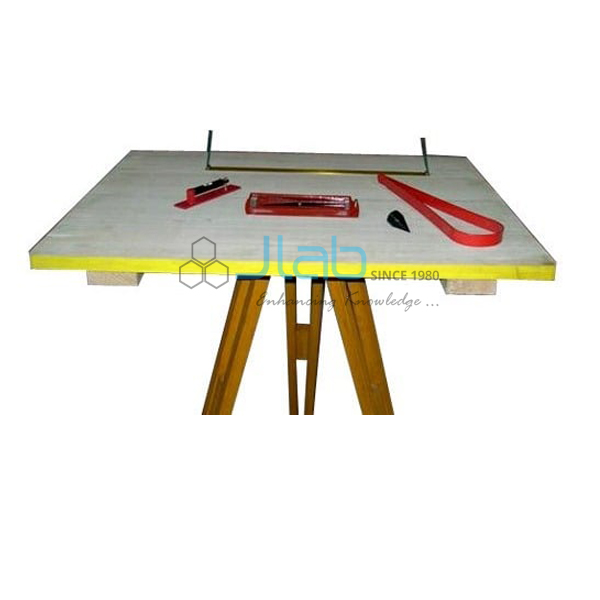

Plane Table (code EL-SE-3400) is a wooden survey board that gives a solid, flat surface for drawing field charts, drawings and maps while the survey is in progress. It is the base of plane table surveying, taught in civil engineering and geography practicals and used for quick small-scale mapping. JLab manufactures the plane table in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Material | Wood and allied materials |
| Working surface | Solid, flat board |
| Use | Making field charts, drawings and maps during a survey |
| Finish | Fine finish |
| Quality check | Each plane table is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 4–6 working days |
| Product code | EL-SE-3400 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Plotting the Survey in the Field
A sheet of drawing paper is fixed to the board, and the table is set up over a station, levelled and turned to its correct orientation. An alidade laid on the paper is pointed at each feature in turn and a ray is ruled along its edge; distances measured on the ground are then scaled along the rays. Because the map is drawn on site, missing details are noticed and filled in before the party leaves.
The usual methods are radiation from a single station, intersection from two stations, traversing from station to station, and resection to fix the table’s own position.
Related Plane Table Accessories
- Telescopic Alidade — sights through a telescope aligned with its fiducial edge.
- Survey Compass — an aluminium or brass compass supplied in a case with tripod.
- Ranging Rod — coloured poles that mark the stations being plotted.
- Survey Chain — measures the ground distances scaled along the rays.
Find more in Survey Equipment, a category of our Survey Equipment range.
Request a Quote
Press Add To Cart or send an enquiry from the contact page, giving the number of tables, any accessories wanted with them and the delivery address.
