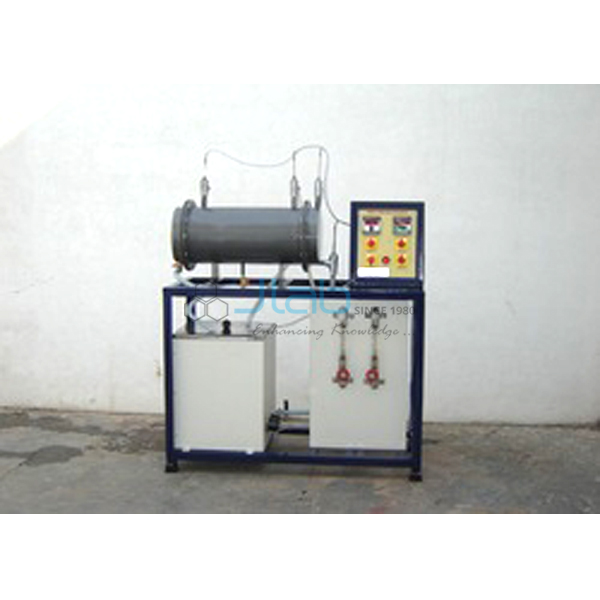

Shell and Tube Heat Exchanger (code EL-SATHE-7380) is a water-to-water exchanger for teaching LMTD and the overall heat transfer coefficient, with copper tubes fitted inside a fabricated stainless steel shell. Hot water makes two passes through the tubes while cold water enters one end of the shell and flows over them past the baffles. Every unit of this two-pass exchanger is made by JLab in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Shell | Fabricated stainless steel |
| Tubes | Copper, with baffles on the shell side |
| Tube passes | Two: out through one set of tubes, back through the rest |
| Hot water circuit | Recirculating tank with heaters and digital temperature controller; magnetic drive pump |
| Flow measurement | Rotameters for hot and cold water |
| Flow control | Valves for hot and cold water |
| Electricity supply | 1 phase, 220 V AC, 4 kW |
| Water supply | 20 L/min (approx.), with drain |
| Floor area | 1.5 m × 0.75 m |
| Quality check | Each heat exchanger is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Product code | EL-SATHE-7380 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
The Two Water Circuits
A magnetic drive pump draws hot water from a recirculating tank, where heaters and a digital temperature controller hold its temperature, and sends it through one set of tubes to the far end of the shell and back through the remaining tubes. Cold water from the supply enters at one end of the shell and passes over the hot tubes before leaving to the drain. Each stream has its own valve and rotameter, so the hot and cold flow rates can be set independently.
Calculations at Each Flow Setting
From the inlet and outlet temperatures of the two streams and the rotameter flows, the heat given up by the hot water is Q = ṁh cph (Th,in − Th,out), and the heat gained by the cold water is worked out the same way as a check. With the end temperature differences ΔT1 and ΔT2, the log mean temperature difference is LMTD = (ΔT1 − ΔT2) / ln(ΔT1/ΔT2); for a two-pass exchanger it is taken on the counter-flow basis and multiplied by a correction factor F. The overall coefficient then follows from U = Q / (A × F × LMTD), with A the tube surface area, and the test is repeated at other hot and cold flow rates.
Other Heat Exchanger Set-ups
- Parallel and Counter Flow Heat Exchanger — concentric tube unit switchable between parallel and counter flow.
- Plate Type Heat Exchanger Apparatus — counter-flow stainless steel plate exchanger with hot water from a geyser.
- Concentric Tube Heat Exchanger — copper inner tube inside a GI pipe, for parallel and counter flow.
The exchanger is listed in the Shell and Tube Heat Exchanger category of Heat Transfer Lab Equipment.
Request a Quote
Use Add To Cart for this exchanger, or reach JLab through the contact page with the quantity and the site address for delivery.
