Teaching Microscope and Prepared Slides Manufacturer,Supplier and Exporter in India
Product Code : EL-PL-13555
Jlab Export is a leading Teaching Microscope and Prepared Slides Manufacturer,and suppliers in India
Teaching Microscope and Prepared Slides (code EL-PL-13555) is a trinocular bright-field microscope set with an HDMI camera on a C-mount and a 30-inch flat screen, so the image under the objective can be shown to a whole class. Slides, cover slips and a storage box for 100 slides complete the set. It is built by JLab in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Microscope | Trinocular, bright field; fixed 50/50 beam splitter |
| Head | Tube tilted at 30°, rotatable 360°; interpupillary distance 48–75 mm |
| Optics | Adjustable 10x/20 wide-field eyepieces; objectives 4x/0.10, 10x/0.25, 40x/0.65 and 100x/1.25 (immersion) on a 5-position revolver |
| Focusing | Coaxial macro and micrometric, with safety stop, 0.002 mm graduation |
| Stage | 233 x 147 mm, 78 x 54 mm cross movement, 0.1 mm graduation, blade holder |
| Illumination | Adjustable 3.6 W LED, diascopic; removable, focusable Abbe condenser N.A. 1.25 with centring system and iris diaphragm |
| Power | 220 V, 50 Hz; protective cover supplied |
| Camera | HDMI camera for C-mount, 1/2.8" CMOS sensor, 1,920 x 1,080 pixels (2 Mpixel), SD card slot; adjustable 0.35x C-mount adapter |
| Display | 30" flat screen with HDMI connection |
| Slides and storage | 26 x 76 mm slides with ground edges and frosted margin (50 packs of 50); 18 x 18 mm cover slips (5 packs of 200); storage box for 100 slides |
| Quality check | Each microscope set is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-PL-13555 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
From Eyepiece to Screen
The fixed 50/50 beam splitter divides the light between the eyepieces and the third tube, so the teacher can keep looking through the eyepieces while the camera feeds the screen. The camera sits on the adjustable 0.35x C-mount adapter and connects to the screen by HDMI; the HDMI cable, mouse, memory card, AC adapter and software come with it, and pictures can be stored on the memory card in its SD slot.
Using the 100x Immersion Objective
With the 10x eyepieces, the 100x/1.25 objective gives the highest magnification of the set and is used with a drop of immersion oil between lens and cover slip. The Abbe condenser has the same 1.25 aperture; it is focused and centred, and the iris diaphragm is set, before high-power work. The safety stop on the focusing limits how far the stage can rise towards the objective.
Related Microscopy Items
- Biology Set BM1 - Microscopy — student set with a rechargeable monocular microscope for eight experiments.
- Microscope Slides Set for General Biology — prepared slides of mitosis, plant sections and animal tissues.
- Microscopy Chemicals Set — stains and mounting medium together with series of prepared slides.

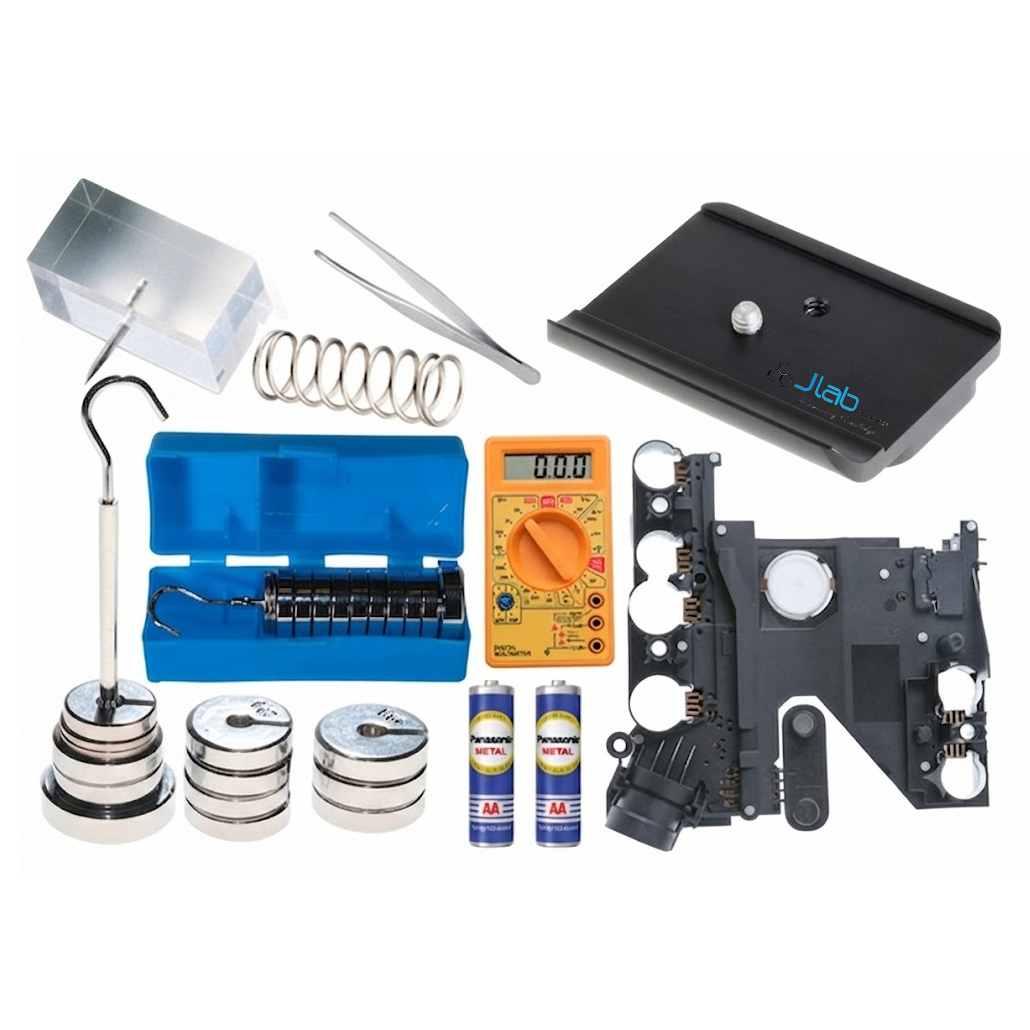

Other instruments for the teaching laboratory are under Physics Lab.
Request a Quote
Ask for this set through Add To Cart or the contact page, stating how many classroom sets are wanted and the delivery city.
