Trinocular Stereo Zoom Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-955
Jlab Export is a leading Trinocular Stereo Zoom Microscope Manufacturer,and suppliers in India
Trinocular Stereo Zoom Microscope (code EL-M-955) is a stereo zoom microscope with a 45-degree trinocular head, rotatable through 360 degrees, whose third port takes a camera while the user watches an upright 3D image through a pair of HWF 10x eyepieces. Magnification runs continuously from 7x to 45x, a 1:6.4 zoom ratio. This model is produced by JLab at Ambala in India.
Specifications
| Parameter | Detail |
|---|---|
| Observation head | Trinocular, inclined at 45 degrees, rotatable through 360 degrees |
| Focusing | Rack and pinion, single stroke up to 50 mm |
| Magnification | 7x to 45x standard (zoom ratio 1:6.4) |
| Illumination | Incident and transmitted, 20 W halogen lamps |
| Eyepieces | High-point wide field HWF 10x (pair) and WF 10x |
| Quality check | Each microscope is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 5 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-M-955 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Recording Through the Third Port
The trinocular head splits the light between the binocular eyepieces and the camera port, so a specimen can be shown on a screen or photographed while it is being examined. The set of eyepieces also includes a WF 10x alongside the high-point HWF 10x pair; the high-point type leaves room for spectacles.
Zoom, Light and Focus
Turning the zoom control enlarges a chosen area without any change of objective, from a 7x overview up to 45x. Halogen lamps of 20 W light the object either from above (incident) or from below (transmitted), and the rack and pinion focus has a single stroke of up to 50 mm.
Related Zoom, Research and Universal Models

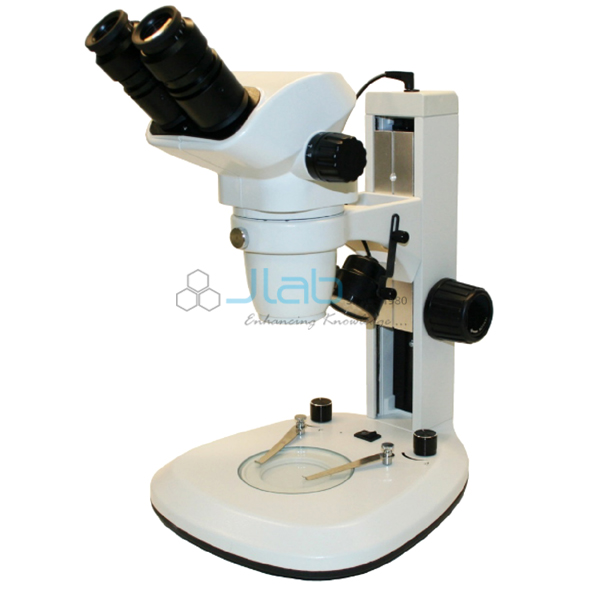

- Binocular Stereo Zoom Microscope — binocular version with the same zoom range and halogen lighting.
- Advanced Trinocular Research Microscope — trinocular compound microscope with an oil-immersion objective.
- Universal Stereoscopic Binocular Microscope — stereo model on a multi-purpose universal base stand.
Look through Microscope for the remaining stereo and compound models, part of Microscope Lab Equipment.
Request a Quote
Click Add To Cart or use the contact page, giving the quantity, the camera you intend to mount, if any, and the delivery location.
