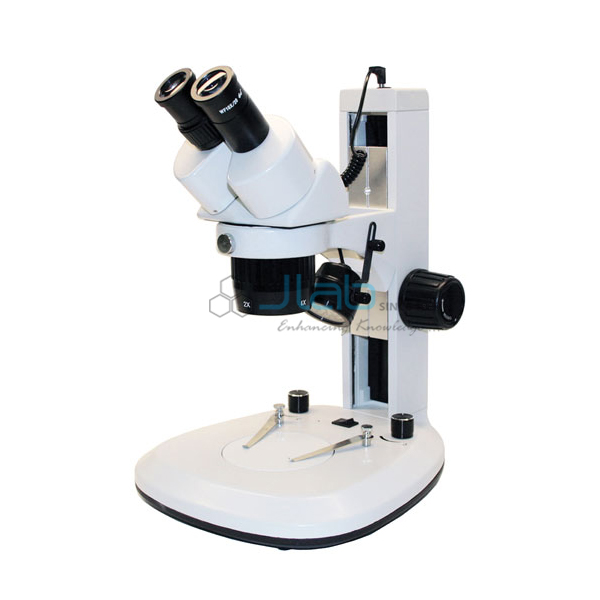

3 Way LED Light Dual Power Stereo Microscope

3 Way LED Light Dual Power Stereo Microscope

Product Code : JL-M-8116

3 Way LED Light Dual Power Stereo Microscope
Description:-
A fully coated optical system which provides sharp and clear imaging with extreme flatness and contrast.
This stereo microscope offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments.

Specification:-

Item No.

Head

Eyepiece

Magnification

Illumination

1

Binocular

10X Wide-Field

10X and 20X

LED - Top & Bottom

2

Binocular

10X Wide-Field

10X and 30X

LED - Top & Bottom

3

Binocular

10X Wide-Field

20X and 40X

LED - Top & Bottom





Magnification

Standard magnification: 20X & 40X; 10X & 30X; or 10X & 20X The magnification can be increased or decreased with auxiliary objectives and optional eyepieces

Viewing Head

Binocular, 45° inclined and 360° rotatable.

Interpupillary distance adjustable from 55mm-75mm. Synchronized bilateral inter-pupillary distance adjustment.

Diopter adjustment of +/-5 on left ocular tube; right tube is fixed

Eyepiece

10X wide-field, high eyepoint

Paired 10X/20mm (Optional eyepieces WF15X/15mm, WF20X/10mm, Various reticule eyepieces WF10X/20mm available, not included)

The left eyepiece can be locked on with setscrew to prevent students from removing them.

Optics Body and objectives

The QFN optics body is equipped with paired lenses (1X, 2X), (1X, 3X), or (2X, 4X) for three-dimensional viewing. Magnification can be switched to the other by rotating the turret.

Objective magnification: choice of (2X & 4X), (1X & 3X), or (1X & 2X)

Auxiliary objectives: 0.5X/165mm(working distance), 1.5X/45mm, and 2X/30mm available (not included)

Working Distance

Standard working distance of 100mm, working distance range can be changed with auxiliary lens

Focusing Arm

Heavy duty rack and pinion focusing with slip clutch

Two focusing knobs with tension adjustment,  100mm focus distance range

Stage

Includes one 95mm glass stage plate and one 95mm reversible black/white stage plate.

Locked-on stage clips

2D Travelling stage available (not included)

Illumination

Top light: diagonally adjustable top incident LED light. Brightness can be continuously adjusted independently

Bottom light: transmitted LED light. Brightness can be continuously adjusted independently

Built in illumination system allows three ways of illumination: transmitted, incident, or dual lighting.

Main On/off power switch. Besides, top and bottom lights can be switched on/off respectively with separate intensity control
