Research Microscope Series for Advanced Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-MSAC-2730
Jlab Export is a leading Research Microscope Series for Advanced Microscope Manufacturer,and suppliers in India

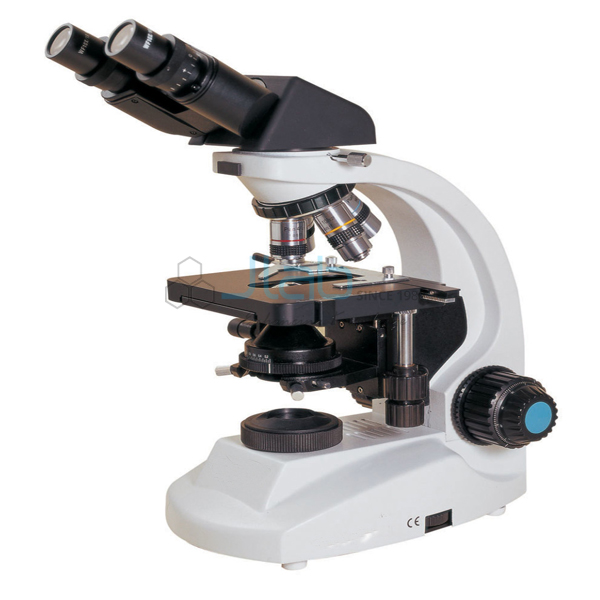

Research Microscope Series for Advanced Microscope (code EL-MSAC-2730) is a compound microscope series with binocular or trinocular heads, white LED base illumination and anti-mould protection on the optics of the head and objectives for use in hot, humid conditions. Coaxial coarse and fine focusing and every movement run on ball bearings. JLab designs and builds the series in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Observation heads | Binocular or trinocular, inclined at 45 degrees, rotatable through 360 degrees |
| Focusing | Coaxial coarse and fine, gear driven; all movements on ball bearings |
| Stage | Double plate mechanical, 142 x 140 mm |
| Nosepiece | Inward quadruple revolving, parfocal, rubber grips, ball bearing motion |
| Condenser | Three-lens Abbe, N.A. 1.25, rack and pinion, iris diaphragm and filters |
| Illumination | Built-in white LED (6 V, 20 W halogen optional), 220 V (110 V optional), intensity regulator |
| Optics protection | Anti-mould protection in the viewing head and objectives |
| Objectives | Semi Plan 4X, 10X, 40X SL and 100X SL (oil) |
| Eyepieces | WF 10X and WF 15X pairs |
| Options | Plan achromatic objectives with Siedentopf observation head |
| Quality check | Each microscope is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 5 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-MSAC-2730 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Optics for Hot and Humid Rooms
Lenses kept in warm, damp air can grow mould that clouds the image. In this series the optical parts of the viewing head and the objectives carry anti-mould protection, which suits teaching and laboratory rooms in hot, humid climates.
Stage, Nosepiece and Condenser
The 142 x 140 mm double plate mechanical stage and the inward quadruple nosepiece both move on ball bearings. The objectives are parfocal, so the image stays close to focus when the power is changed. The three-lens Abbe condenser (N.A. 1.25) moves on rack and pinion, with an iris diaphragm and filters to set illumination and contrast.
Eyepieces, Lamp and Options
Semi plan objectives of 4X, 10X, 40X SL and 100X SL oil are paired with WF 10X and WF 15X eyepieces. The white LED has an intensity regulator; a 6 V, 20 W halogen lamp and 110 V operation are options, as are plan achromatic objectives with a Siedentopf head.
Other Models in the Range
- Research Microscopes — halogen-lit model with three interchangeable observation heads.
- Research Coaxial Microscopes — halogen model with coaxial focusing on ball bearing guides.
- Halogen Bulb 6 Volts, 20 Watts — bi-pin 6 V, 20 W halogen bulb, the rating of the halogen option.
The full set of compound models sits under Microscope Slides and Cameras, within Microscope Lab Equipment.
Request a Quote
Choose Add To Cart, or write via the contact page with the head, any optional optics or halogen lamp, the number of units and the destination.
