Bar Magnet Manufacturer,Supplier and Exporter in India
Product Code : EL-PL-13403
Jlab Export is a leading Bar Magnet Manufacturer,and suppliers in India

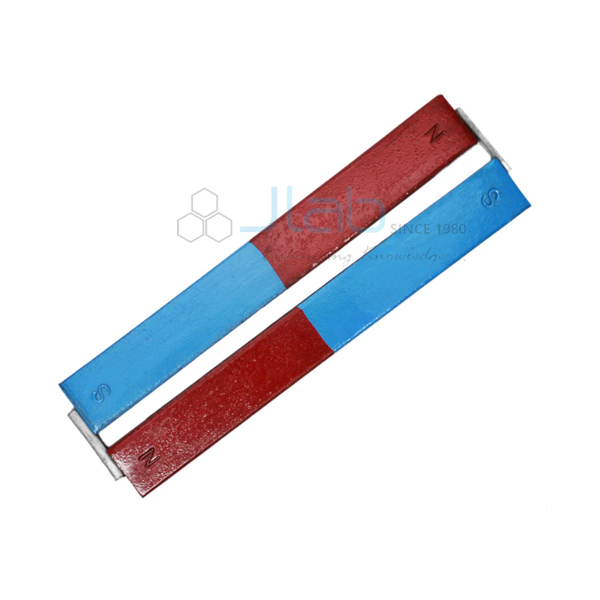

Bar Magnet (code EL-PL-13403) is a 100 mm bar magnet, model JL287, spray painted half red and half blue to mark its north and south poles, and supplied with keepers for storage. It is the basic magnet for attraction, repulsion and field-plotting work in school and college laboratories. The magnet is made by JLab in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Model | JL287 |
| Size | 100 mm |
| Finish | Spray painted half red, half blue |
| Pole marking | Red for N, blue for S |
| Accessories | Keepers |
| Quality check | Each bar magnet is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 4–6 working days |
| Product code | EL-PL-13403 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
What the Magnet Is Used to Show
Two such magnets show that unlike poles attract and like poles repel. Hung from a thread, one settles with its red end towards the north, which is how the north pole gets its name. Under a sheet of paper with iron filings, or traced point by point with a plotting compass, it gives the familiar pattern of field lines running from N round to S; with two like poles facing each other, a neutral point appears between them where the fields cancel.
Why the Keepers Matter
Left on its own, a bar magnet slowly loses strength because its own field works against the magnetisation. Store two magnets side by side with unlike poles together and a keeper across each end, which closes the magnetic circuit and holds their strength. Dropping or heating the magnet also weakens it.
Other Magnetism Items
- Horse Shoe Magnet — steel horseshoe magnet, also painted red and blue, with keepers.
- Iron Filings — iron filings in a storage jar with a shaker lid.
- Magnetic Needle — carbon-steel needle on a brass cup bearing, for plotting.
The rest of the magnetism range is in Physics Lab.
Request a Quote
Add the magnet with Add To Cart, or state the number of magnets and the delivery point on the contact page.
