Chromatography Columns with Sintered Disc Manufacturer,Supplier and Exporter in India
Product Code : EL-CC-1595
Jlab Export is a leading Chromatography Columns with Sintered Disc Manufacturer,and suppliers in India

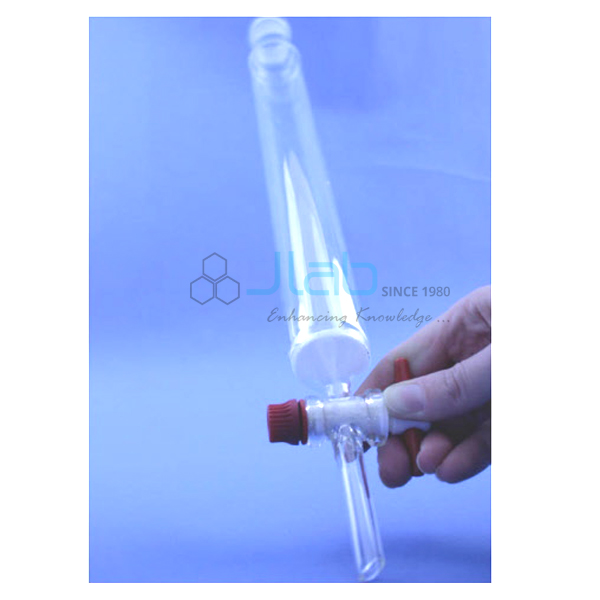

Chromatography Columns with Sintered Disc (code EL-CC-1595) are columns for column chromatography in which a sintered disc at the base supports the packed bed of adsorbent. Sinter diameters run from 10 to 40 mm, each with its own socket size, in lengths from 100 to 500 mm. JLab makes these columns in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Construction | Column with a sintered disc and a ground-glass socket |
| Sinter diameter 10 mm, socket 14/23 | Lengths 100, 200, 300 or 400 mm |
| Sinter diameter 20 mm, socket 19/26 | Lengths 100, 200, 300, 400 or 500 mm |
| Sinter diameter 25 mm, socket 24/29 | Lengths 300, 400 or 500 mm |
| Sinter diameter 30 mm, socket 34/35 | Lengths 400 or 500 mm |
| Sinter diameter 40 mm, socket 40/45 | Lengths 400 or 500 mm |
| Quality check | Each column is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 50 units |
| Dispatch time | Usually 3–5 working days |
| Product code | EL-CC-1595 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Packing and Running the Column
The sintered disc holds the stationary phase in place while solvent drains through it, so no cotton or glass-wool plug is needed under the packing. Pour in the adsorbent as a slurry, let it settle, load the sample on top of the bed and run the eluent through, collecting the separated bands as fractions.
Matching Diameter, Length and Socket
A wider sinter carries a larger bed for bigger samples, and a longer column gives the bands more distance to separate. The 20 mm size has the widest choice, from 100 to 500 mm. The socket grows with the diameter, from 14/23 on the 10 mm column to 40/45 on the 40 mm one, so a solvent reservoir or funnel with the matching cone can be joined to it.
Related Items for Column Work
- Economy Range Sintered Discs — sintered discs from 10 mm diameter in porosity grades 0 to 4.
- Pressure Equalising Funnels, Cylindrical JLab — jointed funnel with B19, B24 or B29 cones for adding solvent.
- Chromatography Set — paper chromatography kit for separating pigments in class.
Columns of this kind are grouped under Chromatography Columns in Lab Glassware.
Request a Quote
Name the sinter diameter and length you need, with the quantity and delivery location, through Add To Cart or the contact page.
