Coil Spring Type Single Plate Clutch Manufacturer,Supplier and Exporter in India
Product Code : EL-IEL-10162
Jlab Export is a leading Coil Spring Type Single Plate Clutch Manufacturer,and suppliers in India

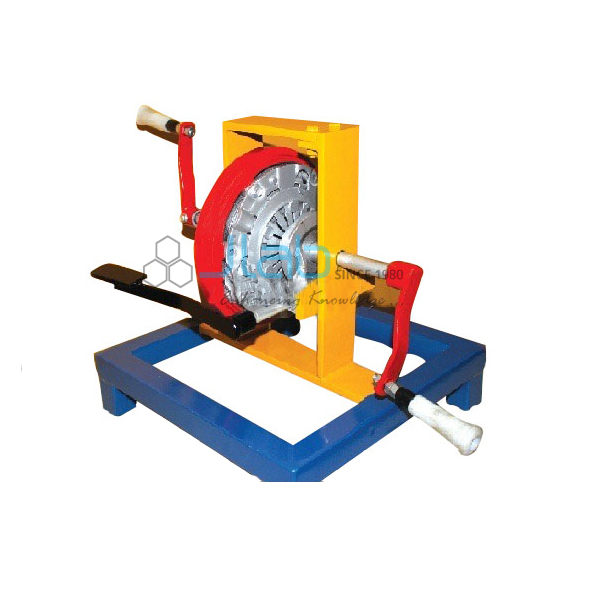

Coil Spring Type Single Plate Clutch (code EL-IEL-10162) is an actual working clutch built from real parts on a square iron pipe frame, with every necessary part of a coil spring single plate clutch shown in working form. It is dissectible, so the clutch can be opened up during a demonstration. JLab in Ambala, India, makes this coil spring clutch assembly.
Specifications
| Parameter | Detail |
|---|---|
| Model type | Actual working clutch |
| Clutch type | Single plate, coil spring type |
| Construction | Actual parts assembled on a square iron pipe frame |
| Parts shown | All necessary clutch parts, in working form |
| Dissectible | Yes, for demonstration |
| Quality check | Each clutch assembly is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Product code | EL-IEL-10162 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How the Coil Springs Clamp and Release the Plate
In this clutch type a ring of coil springs pushes the pressure plate forward, clamping the single friction plate between the pressure plate and the flywheel so that engine torque passes to the gearbox shaft. Pressing the clutch pedal works the release mechanism, which draws the pressure plate back against the springs; the friction plate then runs free and the drive is cut. Letting the pedal up allows the springs to clamp the plate once more.
Other Clutches and Fluid Drives
- Multiplate Clutch Actual Working — an all-metal multiplate clutch model on a metal base.
- Centrifugal Clutch Working Model — spring-controlled flyweights on a crank-turned input shaft and a drum pulley.
- Fluid Flywheel or Torque Converter — the fluid drive that works as the clutch in automatic gearboxes.
More transmission sections are in the I.C. Engine Lab, which sits within Fluid Mechanics and Hydraulics Lab Equipment.
Request a Quote
Send your requirement through Add To Cart or the contact page, with the number of clutch assemblies and the full delivery address.
