Digital Oscilloscope Manufacturer,Supplier and Exporter in India
Product Code : EL-O-10377
Jlab Export is a leading Digital Oscilloscope Manufacturer,and suppliers in India

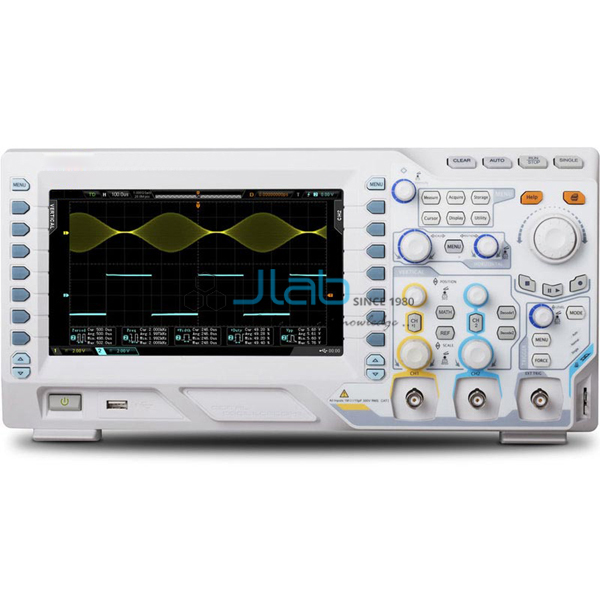

Digital Oscilloscope (code EL-O-10377) is a mixed-signal scope with two analog and 16 digital channels and bandwidth of up to 300 MHz, sampling analog inputs at up to 2 GSa/s and digital inputs at up to 1 GSa/s. A dual-channel 25 MHz signal source is built in, and 50 Ω inputs come as standard. Every unit of this 300 MHz mixed-signal scope is made by JLab in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Bandwidth | Up to 300 MHz |
| Channels | 2 analog (50 Ω input, standard), 16 digital |
| Maximum sample rate | Analog up to 2 GSa/s; digital up to 1 GSa/s |
| Memory depth | Analog up to 14 Mpts (56 Mpts optional); digital up to 14 Mpts (28 Mpts optional) |
| Vertical range | 500 µV/div – 10 V/div |
| Waveform capture rate | Up to 50,000 wfms/s |
| Waveform record | Up to 65,000 frames, hardware real-time record, replay and analysis (standard) |
| Display | 8-inch TFT WVGA (800 x 480), up to 256 intensity levels |
| Trigger and decode | Parallel, RS232, I2C, SPI, CAN |
| Interfaces | USB host and device, LAN, AUX, USB-GPIB (optional) |
| Quality check | Each oscilloscope is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-O-10377 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Separate Sample Rates for Analog and Digital Inputs
The two analog channels sample at up to 2 GSa/s and the 16 digital channels at up to 1 GSa/s, and each side has its own memory depth: up to 14 Mpts analog (56 Mpts with the option) and up to 14 Mpts digital (28 Mpts with the option). Logic lines can therefore be followed over a long record next to the analog signal they control, and parallel triggering ties a captured analog event to the data word present on the bus.
Stimulus and Frame Recording for Embedded Tests
The built-in 25 MHz source supplies test signals to the circuit under test, so one set-up can stimulate a stage and capture its response. Hardware record, replay and analysis of up to 65,000 frames is standard for reviewing intermittent faults, and RS232, I2C, SPI and CAN decoding reads the serial traffic behind them.
