Dual Power Binocular Stereo Microscope 1X and 3X Objective Manufacturer,Supplier and Exporter in India
Product Code : EL-M-8107
Jlab Export is a leading Dual Power Binocular Stereo Microscope 1X and 3X Objective Manufacturer,and suppliers in India

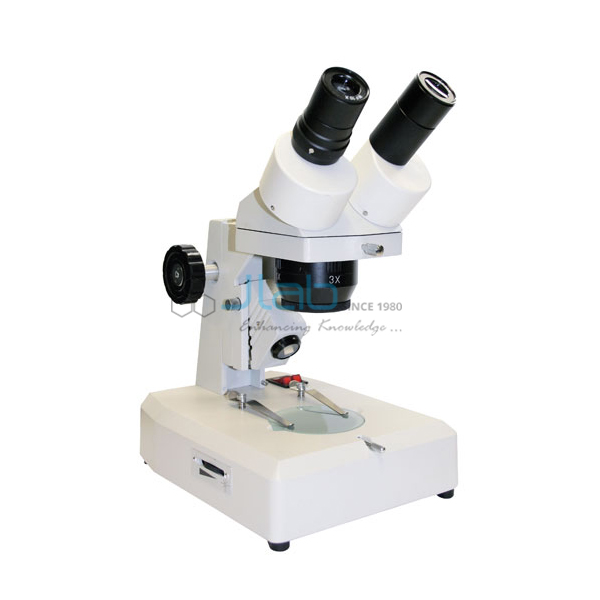

Dual Power Binocular Stereo Microscope 1X and 3X Objective (code EL-M-8107) is a mains-powered binocular stereo microscope with 1X and 3X objectives on a turret and WF 10X eyepieces, giving 10X and 30X at an 80 mm working distance under dimmable 3-way LED lighting. It is used to examine and dissect life-science specimens and to study mineral and rock surfaces. JLab makes this 1X/3X model in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Objectives | 1X and 3X on a turret |
| Magnification | 10X and 30X; 15X and 45X with optional 15X eyepieces; 20X and 60X with optional 20X eyepieces |
| Eyepieces | Paired WF 10X; rubber eyeshields; diopter adjustment in left tube |
| Viewing head | Binocular, 45° inclined, 360° rotatable |
| Interpupillary distance | 55–75 mm |
| Working distance | 80 mm |
| Illumination | 3-way LED: transmitted, incident or dual, with intensity control |
| Power | Mains |
| Stage | Reversible black/white plate and frosted plate; lock-on stage clips |
| Body and packing | Cast aluminium, grey enamel finish; dust cover and instruction manual in a fitted foam box |
| Quality check | Each microscope is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 5 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-M-8107 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Extending the Range With Optional Eyepieces
Turning the turret moves between 10X for locating a specimen and 30X for detail. Replacing the standard pair with optional 15X eyepieces gives 15X and 45X, and a 20X pair gives 20X and 60X, so one stand can serve both general dissection and closer study. The 80 mm working distance leaves room for instruments, and the rubber eyeshields cut out light from the room.
Three Lighting Modes and a Turning Head
Transmitted light comes up through the frosted plate for thin or translucent material, incident light falls on opaque specimens placed on the reversible black/white plate, and dual mode combines them, with brightness set by the intensity control. The 45° inclined head rotates through 360°, so it can face a user from any side of the bench, and eyepiece spacing adjusts from 55 to 75 mm.
Related Dual Power Stereo Microscopes
- Binocular Stereo Microscope Frosted Glass Plate 1x and 3x Objective — same 1X and 3X objectives, with a rechargeable battery
- Dual Power Binocular Stereo Microscope — objective pairs of 1X/2X, 1X/3X or 2X/4X with synchronized eyepiece spacing
- Binocular Stereo Microscope Frosted Glass Plate — 1X and 2X dual power model with a frosted glass plate
The Microscope category holds further stereo stands, under Microscope Lab Equipment.
Request a Quote
Say whether you need the standard 10X eyepieces or the optional 15X or 20X pair, with quantity and delivery details, via Add To Cart or our contact page.
