Fully Automatic Microtome Manufacturer,Supplier and Exporter in India
Product Code : EL-FAM-2328
Jlab Export is a leading Fully Automatic Microtome Manufacturer,and suppliers in India

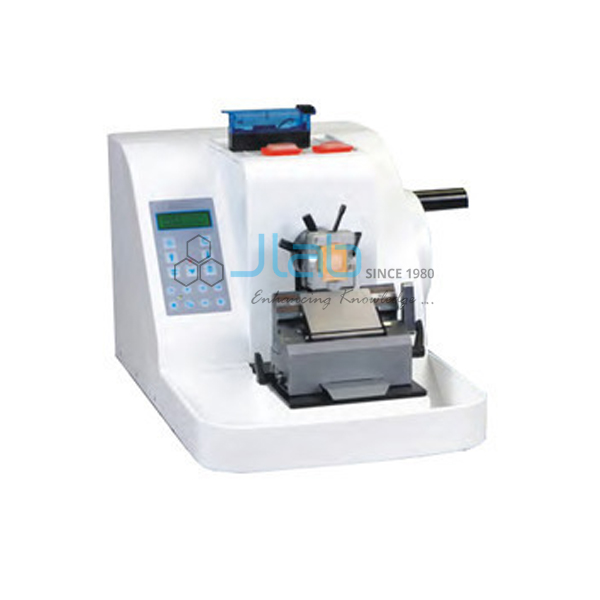

Fully Automatic Microtome (code EL-FAM-2328) is a microprocessor-controlled microtome running on ball bearing guides, used for semi-thin to thick sectioning of soft and hard specimens in histology, pathology teaching and research laboratories. Sections are set from 0.5 to 100 µm and trimming from 1 to 600 µm with feather-touch buttons. It is made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Type | Fully automatic microtome |
| Control | Microprocessor-based control system; feather-touch buttons operate all functions |
| Guides | Ball bearing guides |
| Section thickness setting range | 0.5–100 µm |
| Trimming thickness setting range | 1–600 µm |
| Setting increments | 0.5–2 µm in 0.5 µm steps; 2–10 µm in 1 µm steps; 10–20 µm in 2 µm steps; 20–100 µm in 5 µm steps |
| Vertical specimen stroke | 60 mm |
| Hand wheel | Lockable in any position |
| Clamps | Specimen clamp, disposable embedding cassette clamp and paraffin clamp |
| Other listed features | Automatic memorisation and recovery; safety alarm system; dormancy protection; high-volume trash tank |
| Specimens | Semi-thin to thick sections of soft and hard specimens |
| Quality check | Each microtome is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-FAM-2328 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with Other JLab Microtomes?
| Model | Section thickness (as listed) | Operation | Other listed details |
|---|---|---|---|
| This microtome (EL-FAM-2328) | 0.5–100 µm; trimming 1–600 µm | Fully automatic, microprocessor control, feather-touch buttons | Ball bearing guides; 60 mm vertical stroke; lockable hand wheel; cassette and paraffin clamps; alarm and memory functions |
| Semi Automatic Microtome | 0.25–60 µm; trimming 10–100 µm | Motorised drive with a digital control panel | Paraffin or plastic blocks; disposable blades; Lyzer brand, supplied by JLab |
| Digital Microtome | 1–50 microns in one-micron steps | Cam drive feed with a digital scale | Heavy cast iron base; slides on ball bearings; razor and disposable blade holder in its accessory list |
| Rotary Senior Microtome | 1–50 microns in 1-micron steps | Feed mechanism under a hinged cover | Safety device; razor, object holders and oil can supplied |
Choose the Fully Automatic Microtome when a laboratory cuts many blocks a day and needs the widest listed range, from 0.5 µm semi-thin sections to 100 µm sections and deep trimming, with automatic memorisation and recovery of settings. The semi-automatic model is a motorised alternative with a finer lower limit, while the Digital and Rotary Senior microtomes cover 1–50 microns in one-micron steps.
What Is the Fully Automatic Microtome Used For?
A microtome cuts embedded specimens into slices thin enough to stain and examine under a microscope. On this model the block is first trimmed — taken down quickly in steps of up to 600 µm until the full face of the tissue is exposed — and then sectioned at the chosen setting, with fine 0.5 µm steps at the thin end and 5 µm steps between 20 and 100 µm. Paraffin blocks can be held directly in the paraffin clamp or, if they were embedded in disposable cassettes, in the cassette clamp, which saves remounting each block. The wide range covers semi-thin sections as well as thicker sections of soft and hard specimens.
The microtome suits histology and pathology teaching labs in medical, veterinary and life-science colleges, university anatomy and botany departments, and research laboratories that section large numbers of blocks. Keep the hand wheel locked whenever hands are near the blade, empty the trash tank of wax shavings after each session, and wipe the guides and clamps clean of paraffin so that the feed stays smooth.
What to Specify When Ordering
- Quantity — the minimum order is 10 microtomes; tell JLab whether they are for a teaching lab or a high-throughput research lab.
- Power supply and blades — the listing does not state the supply voltage or the knife or blade holder, so give your mains voltage and frequency and the blade type you use.
- Clamping — say whether you will mainly section cassette-mounted blocks or loose paraffin blocks.
- Section-preparation equipment — add embedding, dispensing and flotation baths or a tissue processor to the same enquiry if you are equipping a complete histology bench.
Frequently Asked Questions
What section thickness range does the Fully Automatic Microtome cover?
Sections can be set from 0.5 to 100 µm and trimming from 1 to 600 µm. The vertical specimen stroke is 60 mm.
In what steps can the thickness be set?
In 0.5 µm steps from 0.5 to 2 µm, 1 µm steps from 2 to 10 µm, 2 µm steps from 10 to 20 µm and 5 µm steps from 20 to 100 µm.
What does “fully automatic” cover on this model?
The listing describes a microprocessor-based control system and drive system operated from feather-touch buttons, with automatic memorisation and recovery, a safety alarm system and dormancy protection. A hand wheel that locks in any position is also fitted.
Can it hold blocks embedded in cassettes?
Yes. It has a disposable embedding cassette clamp as well as a paraffin clamp and a specimen clamp, so blocks can be mounted with or without cassettes.
What power supply and blade does it use?
The listing does not state them. Give your mains voltage and frequency and the blade or knife type you use in the enquiry, and JLab will confirm the configuration in the quotation.
How does it differ from the Semi Automatic Microtome?
This model is listed with microprocessor control, ball bearing guides and a 0.5–100 µm section range with trimming up to 600 µm. The Semi Automatic Microtome is a motorised Lyzer-brand model listed for 0.25–60 µm sections and 10–100 µm trimming.
What should an export quotation request include?
The quantity, destination country and port or city, preferred delivery terms such as FOB or CIF, the mains supply at the site, any packing or labelling needs and, for tenders, the tender reference.
Who makes this microtome?
Jain Laboratory Instruments Pvt Ltd (JLab) manufactures it at its works in Ambala, Haryana, India, and quotes for it directly.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a laboratory equipment manufacturer in India incorporated in 2017, with its works on Hargolal Road, Ambala, Haryana. This microtome is assembled in JLab’s own works and not bought in from a trader, which lets colleges, research laboratories, dealers and importers order it factory-direct, with a visual inspection of every unit before dispatch and follow-up orders handled by the manufacturer. The company is registered under CIN U29309HR2017PTC069123 and also holds MSME Udyam registration UDYAM-HR-01-0003849 as a manufacturing enterprise. JLab exports worldwide and ships to buyers in every region — for example Trinidad and Tobago in Central America and the Caribbean, Bulgaria in Eastern Europe, Lithuania in Northern Europe, Vanuatu in Oceania and Uzbekistan in Central Asia. For institutional purchasing, see the JLab lab tenders page.
Histology Equipment to Use with It
- Automatic Tissue Processor — carries tissue from fixation and dehydration to paraffin wax saturation before embedding.
- Paraffin Embedding Bath — thermostat-controlled bath with covered wax pots for preparing blocks.
- Paraffin Dispenser — a double-walled stainless steel, thermostat-controlled wax dispenser for embedding.
- Tissue Flotation Bath — floats cut wax sections so they flatten before staining.
- Microtome Accessories — razors, strop, honing stone and plate, L-moulds for wax blocks and a stainless steel tissue cassette.
Browse the complete Microtomes range, or open the Fully Automatic Microtome section page.
Request a Quote
Quotes come direct from the manufacturer. Use the Add To Cart enquiry button, or send the quantity (minimum 10 units), your mains supply, the blade type you use and the delivery location through the contact page.
