Semi Automatic Microtome Manufacturer,Supplier and Exporter in India
Product Code : EL-SAM-7348
Jlab Export is a leading Semi Automatic Microtome Manufacturer,and suppliers in India

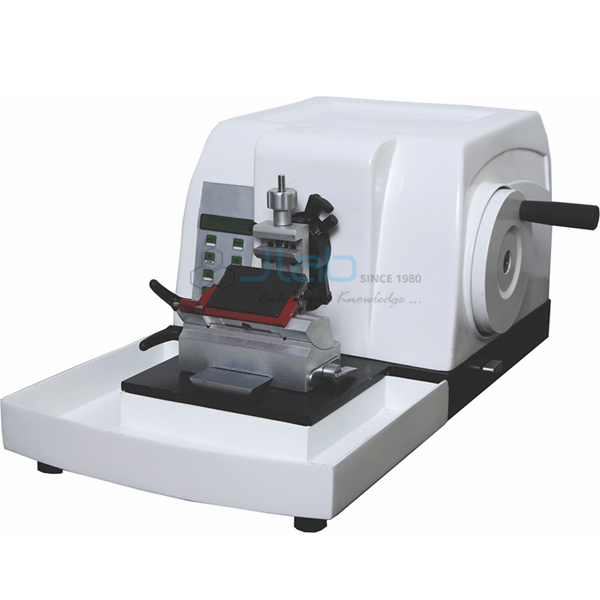

Semi Automatic Microtome (code EL-SAM-7348) is a Lyzer-brand motorised microtome with a digital control panel, used to cut sections of paraffin- or plastic-embedded specimens in histology teaching and research laboratories. It is listed for slices from 0.25 to 60 µm on high-profile disposable blades. JLab (Jain Laboratory Instruments Pvt Ltd, Ambala, India) supplies it to schools, colleges and dealers.
Specifications
| Parameter | Detail |
|---|---|
| Brand | Lyzer |
| Type | Semi automatic microtome with motorised drive |
| Controls | Digital control panel |
| Compatible embedding material | Paraffin and plastic |
| Slice thickness range | 0.25–60 µm |
| Trimming thickness range | 10–100 µm |
| Thickness setting increments | 0.25–1 µm in 0.25 µm steps; 1–10 µm in 1 µm steps; 10–20 µm in 2 µm steps; 20–60 µm in 5 µm steps |
| Knife | High-profile disposable blades; lateral knife holder |
| Specimen clamp | Retractable |
| Maximum section size | 50 x 50 mm |
| Specimen horizontal feed | 28 mm |
| Stroke length | 60 mm |
| Weight | 24 kg |
| Working voltage | 220 V, 50 Hz (110 V, 60 Hz optional) |
| Quality check | Each microtome is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-SAM-7348 |
| Supplied by | Jain Laboratory Instruments Pvt Ltd (JLab), Ambala, India |
How Does It Compare with Other JLab Microtomes?
| Model | Section thickness (as listed) | Operation | Other listed details |
|---|---|---|---|
| This microtome (EL-SAM-7348) | 0.25–60 µm; trimming 10–100 µm | Motorised drive, digital control panel | Paraffin or plastic blocks; disposable blades; 50 x 50 mm maximum section; 24 kg |
| Fully Automatic Microtome | 0.5–100 µm; trimming 1–600 µm | Fully automatic, microprocessor control, feather-touch buttons | Ball bearing guides; lockable hand wheel; cassette and paraffin clamps |
| Digital Microtome | 1–50 microns in one-micron steps | Cam drive feed with a digital scale | Heavy cast iron base; slides on ball bearings |
| Rotary Senior Microtome | 1–50 microns in 1-micron steps | Feed mechanism under a hinged cover | Safety device; razor, object holders and oil can supplied |
Choose this Lyzer model when you want a motorised drive and the thinnest listed setting matters — at 0.25 µm it starts lower than the other JLab microtomes shown here. The Fully Automatic Microtome reaches thicker sections and deeper trimming with microprocessor control, while the Digital and Rotary Senior microtomes cover 1–50 microns.
What Is the Semi Automatic Microtome Used For?
A microtome cuts embedded tissue or plant material into slices that can be mounted, stained and examined under a microscope. Paraffin is the usual embedding medium for routine light-microscope sections, while plastic (resin) blocks are harder and are normally cut thinner, which is where the 0.25 µm and 1 µm steps at the low end of this model’s range are useful. The 10–100 µm trimming range takes a block down quickly until the full face of the specimen is exposed, and the cut is then made at the chosen slice setting.
Typical users are histology and pathology teaching labs in medical, veterinary and life-science colleges, botany and zoology departments, and research labs that prepare sections in quantity. Because the blades are disposable, a fresh edge can be fitted in the lateral knife holder instead of resharpening a steel knife. Retract the specimen clamp and switch off the drive before changing a blade, clear wax or resin debris after each session, and keep the instrument on a firm bench — it weighs 24 kg.
What to Specify When Ordering
- Mains supply — 220 V, 50 Hz is standard; ask for the optional 110 V, 60 Hz version if your laboratory needs it.
- Quantity — the minimum order is 10 microtomes.
- Blades — the number of disposable blades included is not stated in the listing, so state how many spare packs you want quoted.
- Section-preparation equipment — add embedding, dispensing and flotation baths or a tissue processor to the same enquiry if you are equipping a complete histology bench.
Frequently Asked Questions
What slice thickness can the Semi Automatic Microtome cut?
It is listed for slices from 0.25 to 60 µm, set in 0.25 µm steps up to 1 µm, 1 µm steps from 1 to 10 µm, 2 µm steps from 10 to 20 µm and 5 µm steps from 20 to 60 µm. Trimming can be set from 10 to 100 µm.
Which embedding materials can it section?
Paraffin and plastic. The maximum section size listed is 50 x 50 mm, and the specimen has 28 mm of horizontal feed with a 60 mm stroke.
What power supply does it need?
220 V, 50 Hz as standard, with 110 V, 60 Hz available as an option. State your supply in the enquiry.
What kind of blade does it use?
High-profile disposable blades, held in a lateral knife holder. The quantity of blades included is not stated, so ask for spare blades to be quoted if you need them.
Is this microtome a JLab product?
No. It is a Lyzer-brand instrument that JLab supplies; the microtomes in the comparison table above are other models in the JLab catalogue.
What details does an export quotation need?
The quantity, the destination country and port or city, preferred delivery terms such as FOB or CIF, the mains supply at your laboratory, any packing or labelling requirements, and the tender reference where relevant.
Who supplies the Semi Automatic Microtome?
Jain Laboratory Instruments Pvt Ltd (JLab) of Ambala, Haryana, India supplies it and quotes for it directly.
Supplier
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a laboratory equipment company incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. Alongside its own range of laboratory apparatus, JLab supplies selected third-party instruments such as this Lyzer microtome, so a college or dealer can place one order for a whole histology bench; each unit is visually inspected before dispatch. The company holds GSTIN 06AADCJ9848D1ZE and Importer-Exporter Code 3317504552. JLab exports worldwide and ships to buyers in every region — for example Bhutan in South Asia, the USA in North America, Chile in South America, Austria in Western Europe and Finland in Northern Europe. Tender buyers can refer to the JLab lab tenders page.
Equipment for the Rest of the Histology Bench
- Automatic Tissue Processor — takes tissue from fixation and dehydration to paraffin wax saturation.
- Paraffin Embedding Bath — thermostat-controlled bath with covered wax pots for preparing blocks.
- Paraffin Dispenser — double-walled stainless steel wax dispenser with a thermostat.
- Tissue Flotation Bath — floats wax sections flat before they are picked up on slides.
- Microtome Accessories — razors, strop, honing stone and plate, L-moulds and a stainless steel tissue cassette.
See the whole Microtomes range or the Semi Automatic Microtome section page.
Request a Quote
Send your enquiry straight to JLab with the Add To Cart button on this page, or through the contact page, giving the quantity (minimum 10 units), your mains supply, any spare blades and the delivery location.
Last updated: 9 October 2026
