Mock Layout of Car Wiring Conventional Type Manufacturer,Supplier and Exporter in India
Product Code : EL-IEL-10129
Jlab Export is a leading Mock Layout of Car Wiring Conventional Type Manufacturer,and suppliers in India

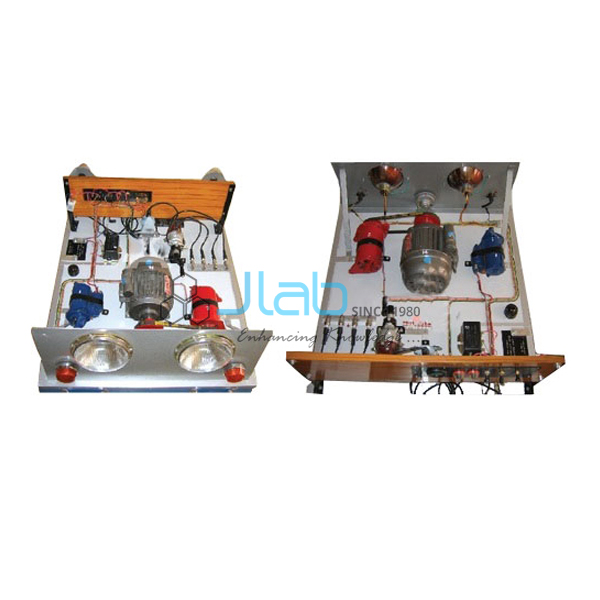

Mock Layout of Car Wiring Conventional Type (code EL-IEL-10129) is an open-type instructional apparatus that lays out a conventional car electrical system on a 100 x 80 cm base. Once a standard battery is connected to its terminals the layout operates, with self-starter, ignition coil, distributor and 4 spark plugs, horn, lights and switches. JLab wires and assembles this car wiring layout in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Type | Open type instructional apparatus |
| Components | Self-starter, alternator, ammeter, ignition coil, distributor, 4 spark plugs, horn, long lights with dipper light, park lights, dipper, back stop light and switches |
| Base size | 100 x 80 cm |
| Alternator drive | Electric motor working on 220 V AC |
| Circuit supply | Standard battery connected to the terminals |
| Battery | Not included |
| Quality check | Each wiring layout is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Product code | EL-IEL-10129 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Circuits Students Can Trace
Because every part is mounted in the open, each circuit can be followed from the battery terminals: the starting circuit through the self-starter; the ignition circuit through the ignition coil and distributor to the spark plugs; the charging circuit from the alternator, along with the ammeter; and the lighting circuits for the long lights with dipper, park lights and back stop light, together with the horn.
Charging Demonstrated Without an Engine
An electric motor working on 220 V AC drives the alternator, so charging can be shown in class without an engine. The battery is not supplied with the layout; a standard battery connected at the terminals powers the circuits.
Other Automobile Electrical Models
- Mock Layout of Car Wiring Latest Type — modern car components in five panels, including motorised charging.
- Coil Ignition System of An Automobile — an open board with ignition switch, coil and distributor from original parts.
- Electronic Ignition System of An Automobile — an open board with a motor-driven electronic distributor and four plugs.
I.C. Engine Lab, within Fluid Mechanics and Hydraulics Lab Equipment, also carries the ignition, battery and fuel system models.
Request a Quote
To get a quotation, use Add To Cart or the contact page, and state the quantity and the town for delivery.
