Product Code : EL-DET-1518
Jlab Export is a leading Digital IC Trainer Manufacturer,and suppliers in India
Digital IC Trainer (code EL-DET-1518) is a self-contained digital electronics trainer kit for teaching digital IC circuits to students in engineering college and polytechnic laboratories. The supply, logic input switches, clock generator, mono pulser, LED logic indicators and 3-digit seven-segment displays are all built around DIP/ZIF IC sockets on one panel, so wiring an experiment is simple and quick. It is made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Built-in power supply | +5 V DC at 1 A, IC regulated |
| Logic inputs | Eight two-position toggle switches, prewired to give binary logic input states |
| Logic indicators | Eight LED logic indicators with transistor drivers |
| Displays | 3-digit seven-segment displays with decoder driver |
| Clock | 1 Hz, 1 kHz and 1 MHz |
| Single pulse | From a mono pulser |
| IC bases | 16-pin DIP/ZIF × 3; 28-pin DIP/ZIF × 1 |
| Output monitoring | Provision to take out outputs for monitoring |
| Supply required | 230 V ±10% at 50 Hz AC mains |
| Patch cords | Adequate number; stackable from the rear at both ends; 2 mm spring-loaded plugs; length ½ metre (0.5 m) |
| Operating instructions | Detailed instructions giving the object, theory, design procedures, report suggestions and book references; two copies with each trainer board |
| Weight | 8 kg (approx.) |
| Dimensions | W 412 x H 150 x D 310 mm |
| Quality check | Each trainer is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-DET-1518 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
What Is the Digital IC Trainer Used For?
A digital IC trainer is a ready-made test bench for logic ICs. The ICs under study sit in the sockets, and everything a circuit needs around them — a regulated supply, input states, a clock or a single pulse, and somewhere to see the result — is already on the panel. Students wire combinational and sequential circuits from logic ICs, such as gate networks, flip-flops, counters and decoders, set the inputs on the toggle switches and read the outputs on the LED indicators or, for counts and decimal results, on the seven-segment displays. Because no separate supply, pulse generator or display board is needed, more of the lab period goes on the logic itself.
What to Specify When Ordering
- Quantity — the number of trainers for your digital electronics lab.
- Board type — this socket-based trainer for wiring circuits from separate ICs, or the dedicated training boards listed below, which carry their own built-in gates or flip-flops.
- Further boards — any of the gate, counter and display trainers below can be quoted on the same enquiry.
Frequently Asked Questions
What IC sockets does the trainer have?
Three 16-pin DIP/ZIF IC bases and one 28-pin DIP/ZIF IC base.
What are the three clock frequencies for?
The 1 Hz clock is slow enough to follow each change of state on the LED indicators, while 1 kHz and 1 MHz run a circuit at higher speed. For a single step there is also the mono pulser, and outputs can be taken out for monitoring on an external instrument such as an oscilloscope, which is a separate item.
Which patch cords does it use?
Cords with 2 mm spring-loaded plugs, stackable from the rear at both ends and ½ metre long. Several other JLab digital boards, such as the Logic Training Board, use 4 mm plugs, so the two sizes are not interchangeable.
Are operating instructions supplied?
Yes. Two copies of the detailed operating instructions come with each trainer board, covering the object, theory, design procedures, report suggestions and book references.
How big and heavy is the trainer?
It weighs about 8 kg and measures W 412 x H 150 x D 310 mm.
What information is needed for an export quotation?
Send the number of trainers, the destination country and port or city, your preferred delivery terms (for example FOB or CIF), any packing or labelling requirements, and the tender reference if the order is for a tender.
Who manufactures the Digital IC Trainer?
Jain Laboratory Instruments Pvt Ltd, trading as JLab, makes it at its works in Ambala, Haryana, India, and quotes for it directly.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, an electronics trainer and laboratory equipment manufacturer in India, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. The Digital IC Trainer is built at JLab’s own works rather than bought in from a trader, so engineering colleges, polytechnics, dealers and importers buy it factory-direct, each trainer is visually inspected before dispatch, and repeat orders and spares are handled by the manufacturer. JLab exports worldwide and ships to buyers in every region — for example Algeria in North Africa, Croatia in Southern Europe, Poland in Eastern Europe, Singapore in Southeast Asia and DR Congo in Central Africa. Tender details are on the JLab lab tenders page.
Dedicated Digital Training Boards

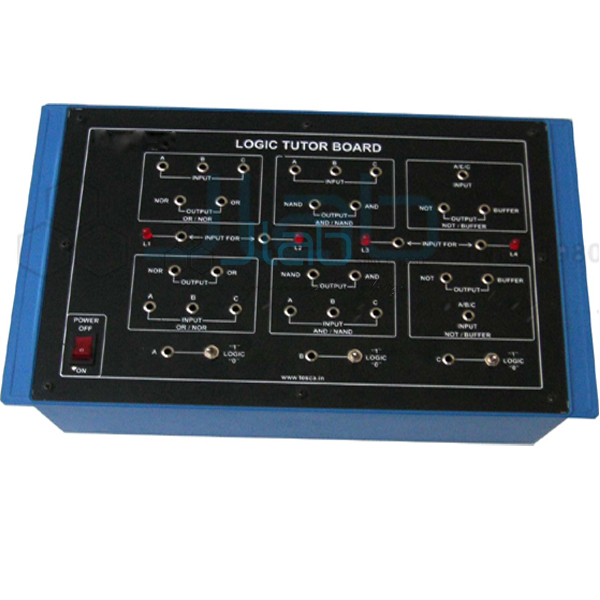

- Logic Training Board — built-in 3-input gates for logic functions, Boolean laws and De Morgan’s theorem.
- Training Board for Gates — 2-input NAND, OR and AND gates for truth tables and universal-NAND experiments.

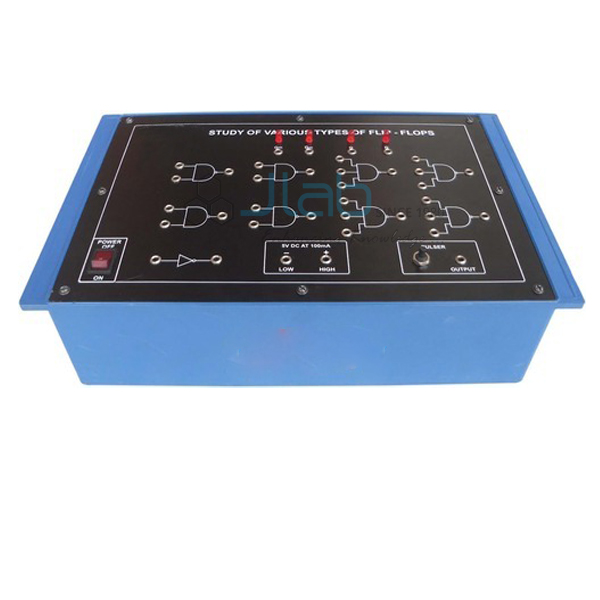

- Logic Training Board on Counters and Shift Registers — J-K master-slave flip-flops and gates on a programmable panel for counters and shift registers.
