DSB and SSB AM Transmitter Trainer Manufacturer,Supplier and Exporter in India
Product Code : EL-CT-1510
Jlab Export is a leading DSB and SSB AM Transmitter Trainer Manufacturer,and suppliers in India

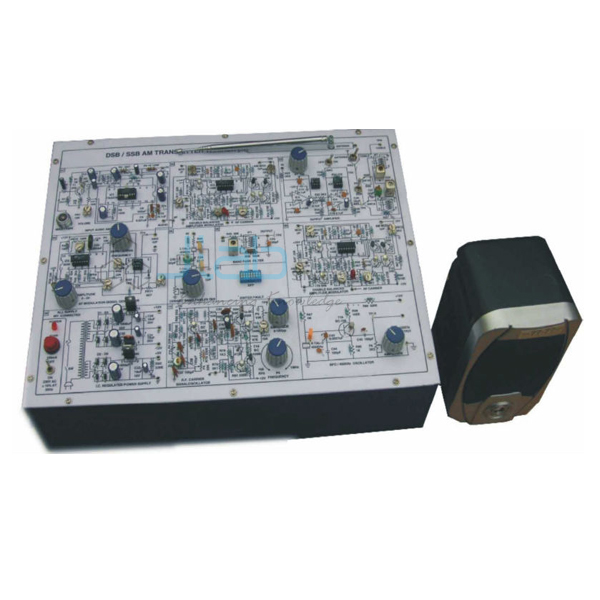

DSB and SSB AM Transmitter Trainer (code EL-CT-1510) is a communication trainer for studying carrier frequency generation, the generation and transmission of double sideband (DSB) and single sideband (SSB) amplitude modulated signals, and the tuned circuits of a transmitter. Its gain-adjustable output amplifier sends the signal to an antenna or a cable. JLab, the trading name of Jain Laboratory Instruments Pvt Ltd, builds the trainer in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Experiments | Carrier frequency generation; DSB and SSB AM generation and transmission; transmitter tuned circuits |
| AF modulating signal generator | Sine wave, 300 Hz to 3.4 kHz, amplitude 0 to 5 Vpp |
| RF carrier signal oscillator | 100 kHz to 1 MHz, amplitude 0 to 10 Vpp |
| Modulators | Two double balanced amplitude modulators |
| Ceramic band pass filter | 452 kHz to 458 kHz |
| Band pass filter | One |
| BFO oscillator | 455 kHz |
| Input audio amplifier | With volume control, for modulating an external signal from a microphone or tape recorder |
| Transmitter output amplifier | Gain adjustable; DSB output at 1 MHz, SSB output at 1.445 MHz; connects to an antenna or cable |
| Microphone | Dynamic microphone with 4 mm jack pin |
| Switched faults | 8 |
| Test points | 27 |
| Built-in power supply | ±12 V DC and +5 V DC, IC regulated |
| Mains supply | 230 V AC, 50 Hz; mains ON/OFF switch, fuse and jewel light |
| Connections | Terminals and sockets at appropriate places on the panel for connections and observation of waveforms |
| Documentation | Detailed operating instructions giving the object, theory, design procedures, report suggestions and book references |
| Other apparatus required | Cathode ray oscilloscope, 20 MHz (separate item) |
| Quality check | Each trainer is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-CT-1510 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with Other JLab AM Trainers?
| Trainer | Role | Frequencies | Built-in DC supply |
|---|---|---|---|
| This transmitter trainer (EL-CT-1510) | Transmitter | RF carrier 100 kHz to 1 MHz; DSB output 1 MHz, SSB output 1.445 MHz | ±12 V DC and +5 V DC |
| DSB and SSB AM Receiver Trainer | Receiver, with diode and product detectors and AGC | Frequency range 980 kHz to 1650 kHz; intermediate frequency 455 kHz | ±12 V DC and +5 V DC |
| DSB and SSB-SC Amplitude Modulation and Demodulation Trainer | AM, DSB-SC and SSB-SC modulation and demodulation on a single printed circuit board | RF carrier 100 kHz to 1 MHz; local oscillator 400 kHz to 500 kHz | ±15 V DC and +5 V DC at 100 mA |
Choose the transmitter trainer when the practical is about producing and sending DSB and SSB signals. The receiver trainer deals with reception — detection, AGC and the sensitivity, selectivity and fidelity of a receiver — while the DSB and SSB-SC trainer generates and demodulates suppressed-carrier signals on one board.
What Is the AM Transmitter Trainer Used For?
It supports the amplitude modulation practicals in the analog communication lab of electronics and communication engineering degree and diploma courses. A double balanced modulator multiplies the audio signal by the carrier, which gives the upper and lower sidebands with the carrier suppressed; keeping only one of those sidebands gives SSB, which occupies half the bandwidth of DSB. On the trainer, students modulate the carrier, compare the DSB and SSB waveforms and study how the transmitter’s tuned circuits behave, viewing each signal on an oscilloscope.
What to Specify When Ordering
- Quantity — the number of transmitter trainers needed for the lab.
- Reception experiments — the DSB and SSB AM Receiver Trainer is a separate item that can be quoted on the same enquiry if the course also covers AM reception.
- Mains supply — the trainer runs on 230 V AC, 50 Hz; confirm that this matches the supply where it will be installed.
Frequently Asked Questions
What audio signals can modulate the carrier?
The built-in generator gives a sine wave from 300 Hz to 3.4 kHz at 0 to 5 Vpp, the band normally used for telephone-quality speech. An external signal from a microphone or tape recorder can also be used through the input audio amplifier, which has its own volume control.
What are the switched faults and test points for?
The trainer has 8 switched faults and 27 test points. An instructor can switch in a fault for students to trace, and the test points give them places to measure the signal on the circuit.
Why study SSB as well as DSB?
SSB carries the same information in a single sideband, so it needs half the bandwidth and less transmitter power than DSB. The trade-off is that the receiver has to reinsert the carrier, usually with a product detector, before the audio can be recovered.
What other apparatus does the trainer need?
A 20 MHz cathode ray oscilloscope, which is a separate item, for observing the waveforms. JLab’s Dual Trace Oscilloscope, linked below, can be quoted with the trainer.
What details does an export quotation need?
Tell us how many trainers you need, the destination country and the port or city of delivery, the delivery terms (for example FOB or CIF), any packing or labelling requirement and the tender reference, if there is one.
Who makes the DSB and SSB AM Transmitter Trainer?
Jain Laboratory Instruments Pvt Ltd, trading as JLab, manufactures it at its works in Ambala, Haryana, India.
